Product Introduction
SoloGood series receivers are based on ExpressLRS open source architecture and programs, we
3 types of RX receiver modules are released. Both use ESP8285 MCU. you
Firmware can be upgraded via WIFI, which is very friendly. Usually you just give the receiver
After the power is supplied and the remote control is turned off, the ExpressLRS can be found hot after 60s by default.
Click, connect to this hotspot through a computer or mobile phone, the password is expresslrs, then
Then you can visit 10.0.0.1 to upload the receiver firmware.
Product Difference
Nano 2400RX receiver with power amplifier (PA+LNA). Therefore, it has .
100mW telemetry output and better sensitivity at longer distances with IPEX Gen 1 antenna
base, with external dipole T-type antenna (customized by professional factory, each antenna is specially
Industry instrument testing, to ensure quality and light and durable) is currently not on the shelves!
Due to the low latency and high refresh rate RF modules of the ELRS Nano receivers, they are ideal for
Combined FPV competition and remote FPV. At the same time these receivers have ultra-light and ultra-small dimensions.

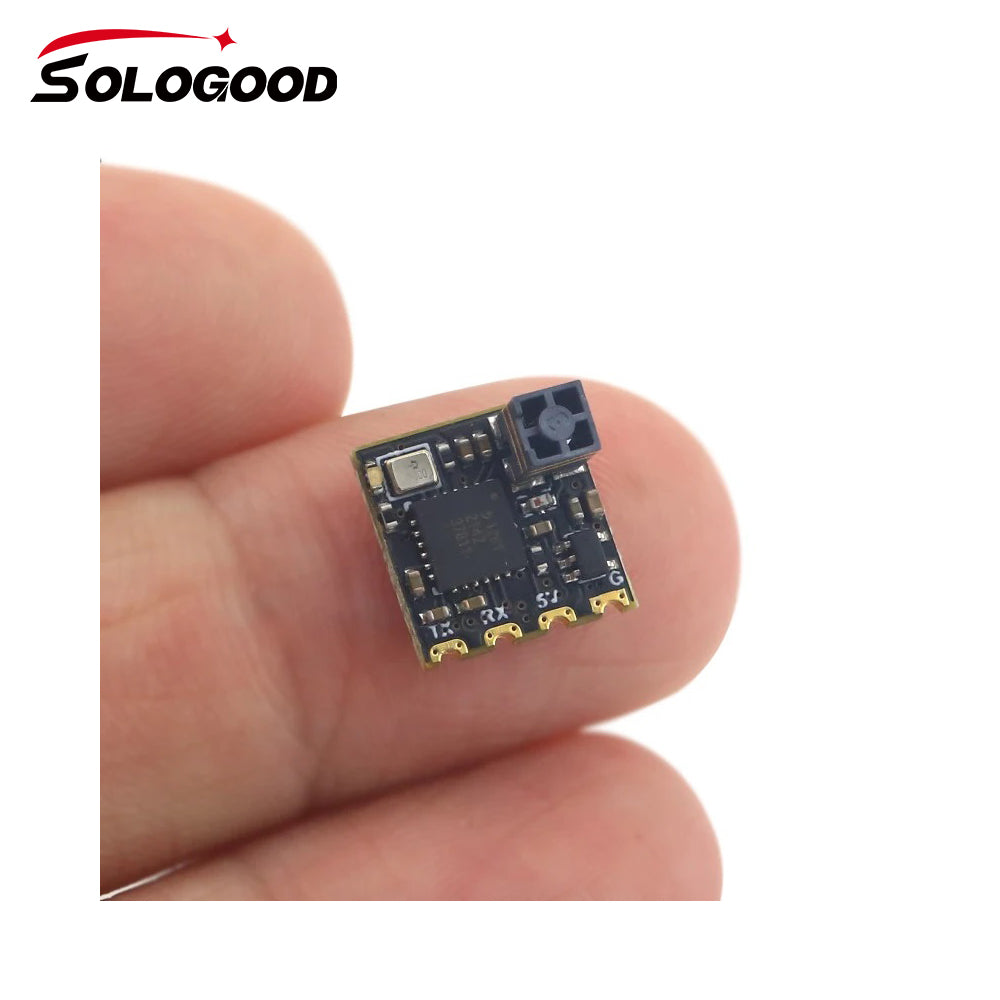

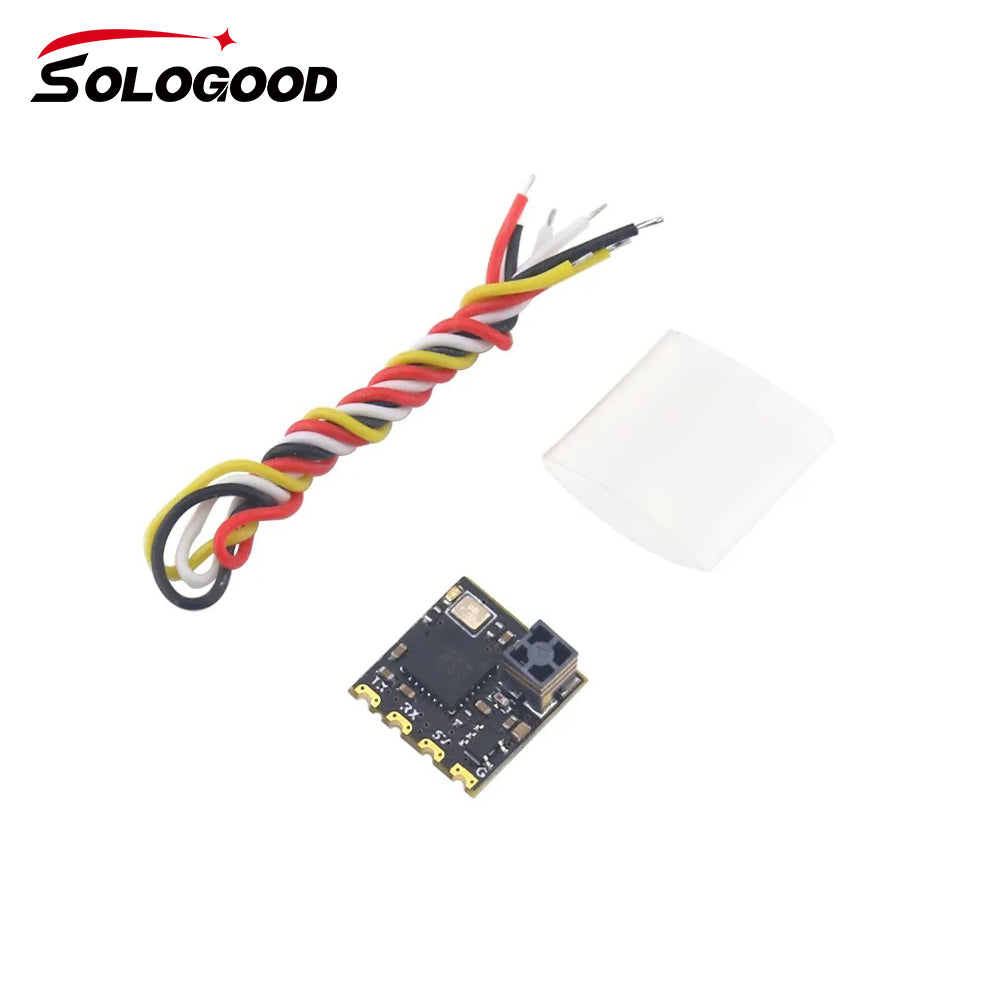

There is no PA/LNA on the ELRS mini 1 receiver _ so its telemetry power is the same as the RF chip
The SX1280 has the same power at 17mW. Using high-efficiency pagoda ceramic antenna, in
Efficient acceptance sensitivity in limited space

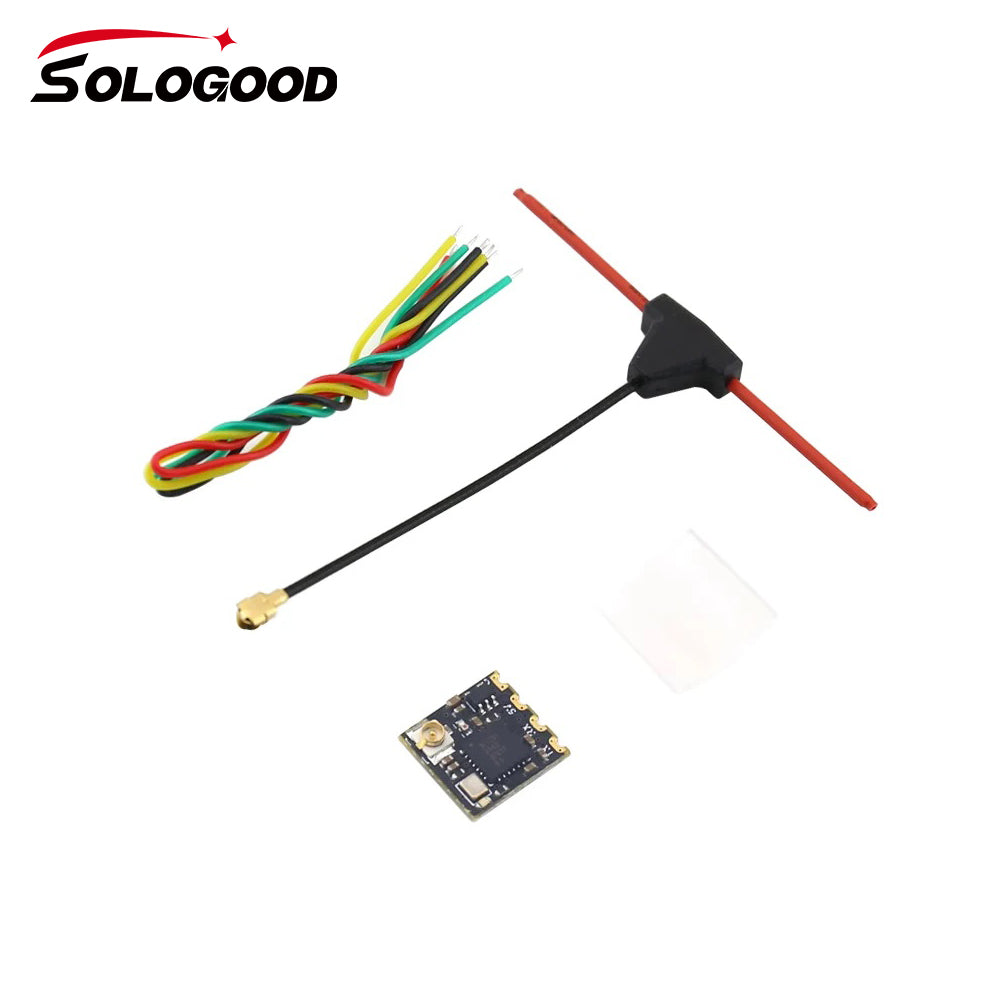

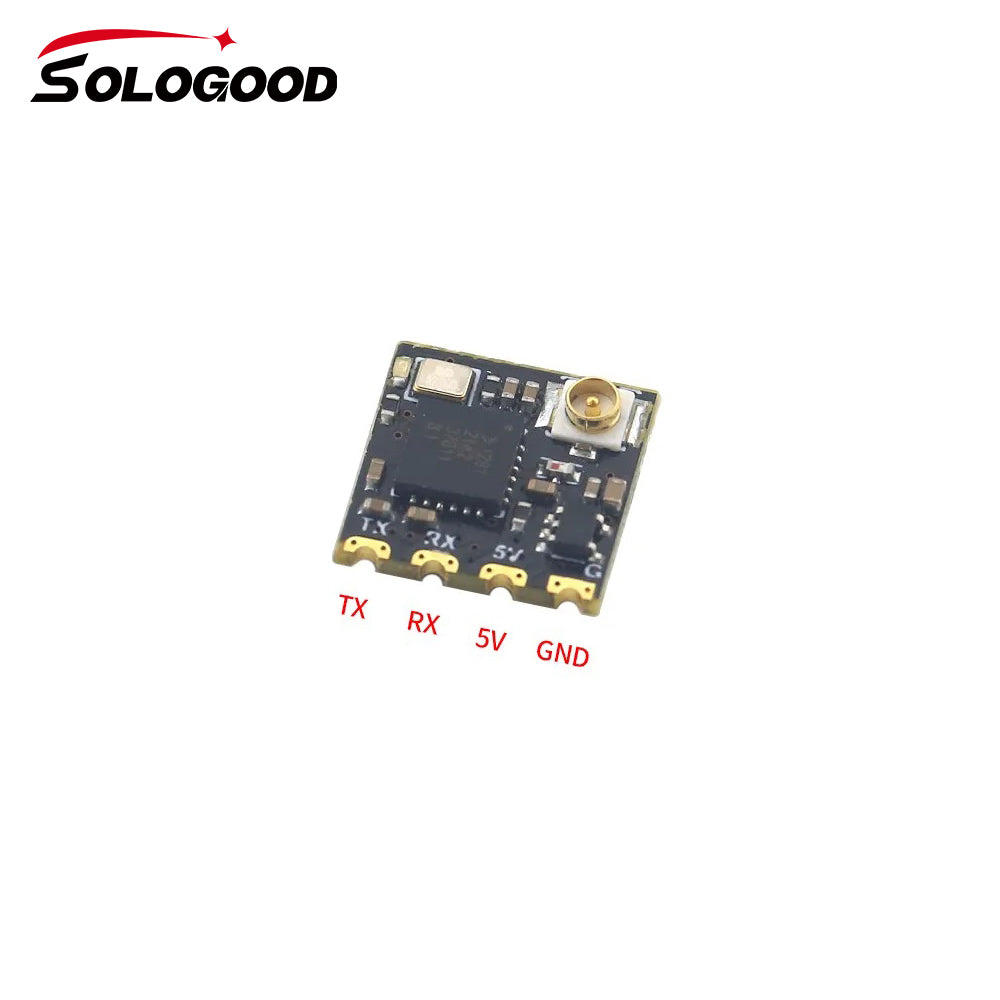

There is no PA/LNA on the ELRS mini 2 receiver, so its telemetry power is the same as the RF chip
The SX1280 has the same power at 17mW. Adopt IPEX 1st generation antenna base, with dipole
Sub-T antenna (customized by professional factory, each antenna has been tested by professional instruments to ensure
quality and lightweight and durable)
Specifications:
ELRS MINI 1
Type: ISM
ESP8285 processor
SMD 2 4GHz Chip Ceramic Antenna Frequency Range: 2400 MHz to 2500 MHz
Receiving refresh rate: 500Hz. Upper limit
Receiving refresh rate: 25Hz lower limit
Working voltage: 5v
Weight: 0.44g
Size: 10mm*10mm*5mm Working Agreement: CRSF(Betaflight)
ELRS MINI 2
Type: ISM
ESP8285 processor
2.4GHz Omnidirectional T Antenna
Frequency range: 2400 MHz to 2500 MHz
Receiving refresh rate: 500Hz_upper limit
Receiving refresh rate: 25Hz lower limit
Working voltage: 5v
Weight: 0.42g (without antenna)
Size: 10mm*10mm*3mm Working Agreement: CRSF(Betaflight)
Bind Procedure:
1. After the receiver is connected to the flight controller, power supply to the flight controller by connecting the USB. Insert for the first time
After USB, disconnect the USB as soon as you see the LED light on the receiver goes out. repeat the operation once,
When the USB is plugged in for the third time, the LED will start to flash twice, which means the receiver is in pairing mode.
2. Connect the ES24TX module or DIY 2.4G ELRS tuner module to the remote control correctly
After that, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD
Card/Scripts/tools, then run ELRS.LUA for Bind operation.
3. After the binding is successful, the LED on the receiver will be always on, and the telemetry signal can also be received.
No.
4. Receiver LED status meaning:
PP receiver: always on, the frequency pairing is successful or the connection and communication are normal, the LED double flashes are in the frequency pairing, the LED slow flashing cannot receive the transmitter signal
