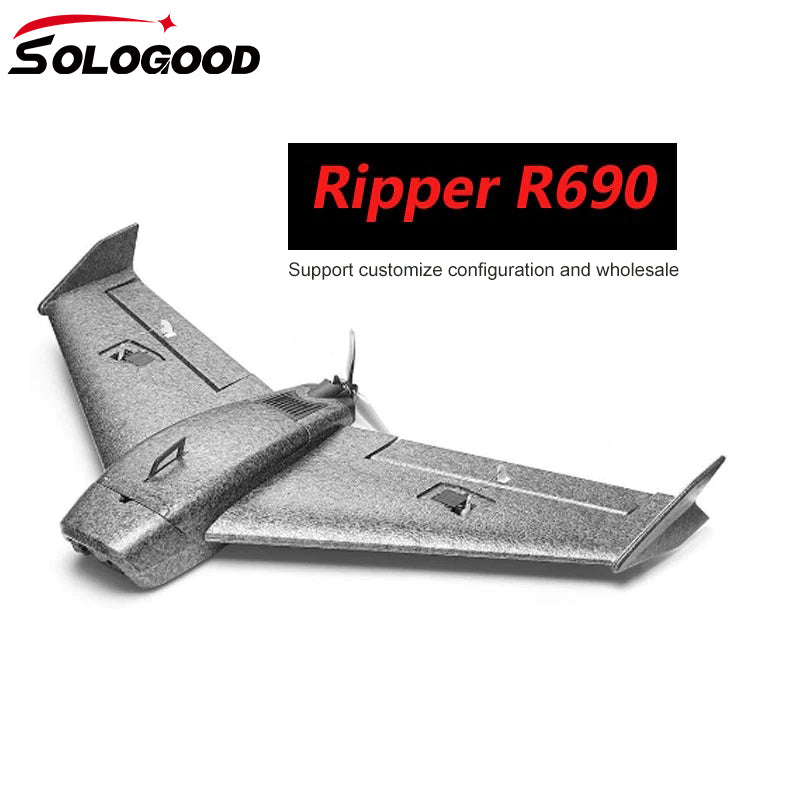

SoloGood Ripper R690 690mm RC Airplane EPP Foam Flying Model Aircraft Kits Delta Wing Electric Remote Control Glider Model KIT

Tailored for DJI high-definition digital transmission, equipped with two dedicated bases for digital transmission and simulation, taking into account high strength and lightweight

Thick wing shape, can not only slow and long endurance but also ensure the maneuverability of high-speed maneuvering flight

The cabin adopts a dual-track design, and the aircraft's center of gravity can be adjusted at will

A new way of fixing the propeller, extremely lightweight

The light-transmitting design of the taillight ensures that the pursuit of the target is clearly visible, and the fun is unlimited

The independent detachable lens plug prevents excessive airflow into the warehouse.

Four magnetic structure, firmly lock the cabin cover

The wing adopts three embedded carbon fiber rods with different angles and a high-strength design, which can easily cope with large loads and high-speed flight.

Horizontal/Vertical Two battery placement methods

Small wingspan, large space, worry-free placement of electronic equipment

The unobstructed intake fluid design ensures that the electronic equipment in the cabin always works coolly

Specification:

Material:EPP/ABS /Carbon Fibre
Size:Wingspan690mmHeight:88mmLength:415mm
Weight:150g
take off weight:350g~750g

CF Szie:
4. 7mm*3. 2mm*400mm (OD * ID * Length, wing tandem bar)
7mm*5mm*170mm (OD * ID * Length, wing embedded stiffener rod)
5mm*1mm*220mm (Width * Thickness * Length, Inset Reinforcements on Wings)

Body space:

battery compartment:175mm*75mm*55mm (maximum size)
ESC compartment:70mrn*38mm*20mm (maximum size)
Camera: 20mm*21mm*30mm (maximum size)
Camera protection ring: outer diameter 17. 5 inner diameter 14mm / 15mm, height 12mm

Material: ABS
Minimum flying speed: <27km/h
Maximum flight speed: >200+km / h

Note:
Over 100km/h, a lens cap must be installed to prevent excessive air from entering and detaching the hatch.
Maximum endurance time:> 70min
Maximum cruising range: >45km

Include: Frame Kit -No electronic Parts inside

Recommend (Not include):
Recommend Power: 2205/2350kv
Recommend Battery: 3-4s   Recommend :ESC: 35A
3S 6inch Biblades    / 4S 5inch Biblades

3-4S 1550 -2200MAH     6S 1300-1550MAH
