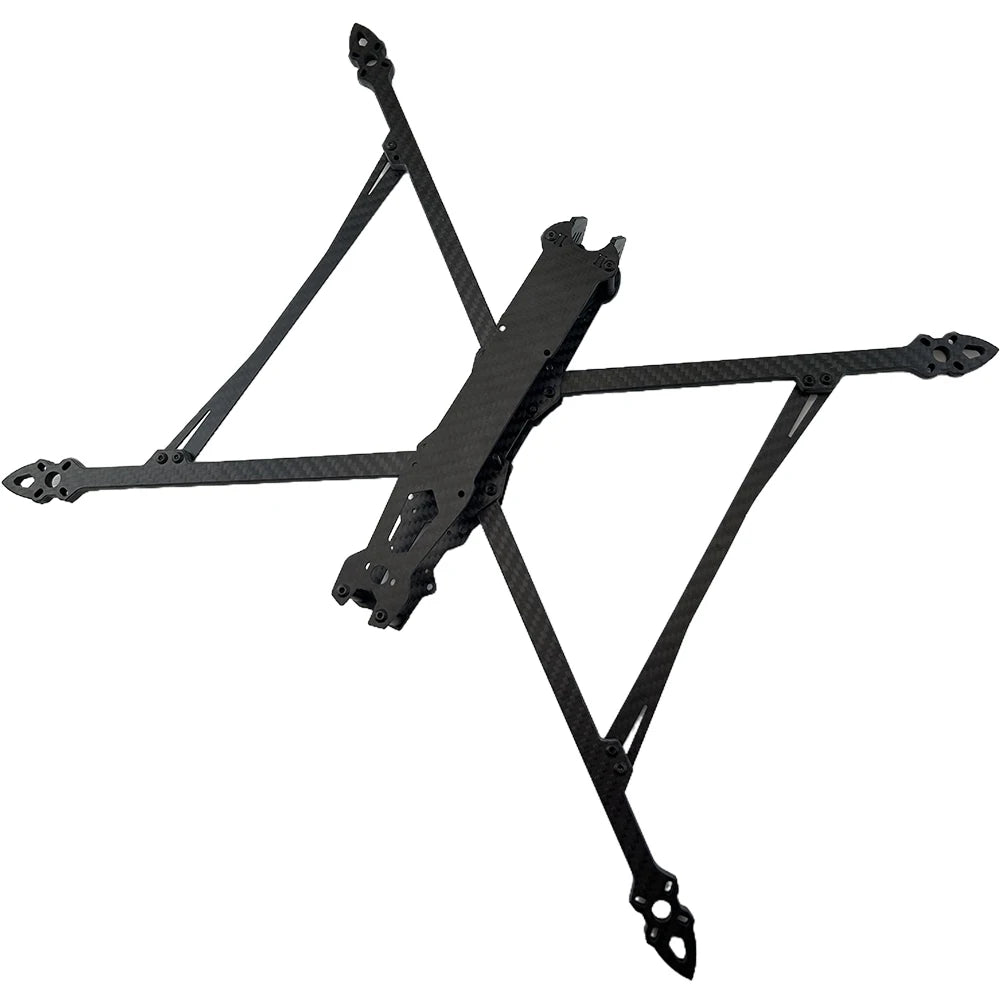

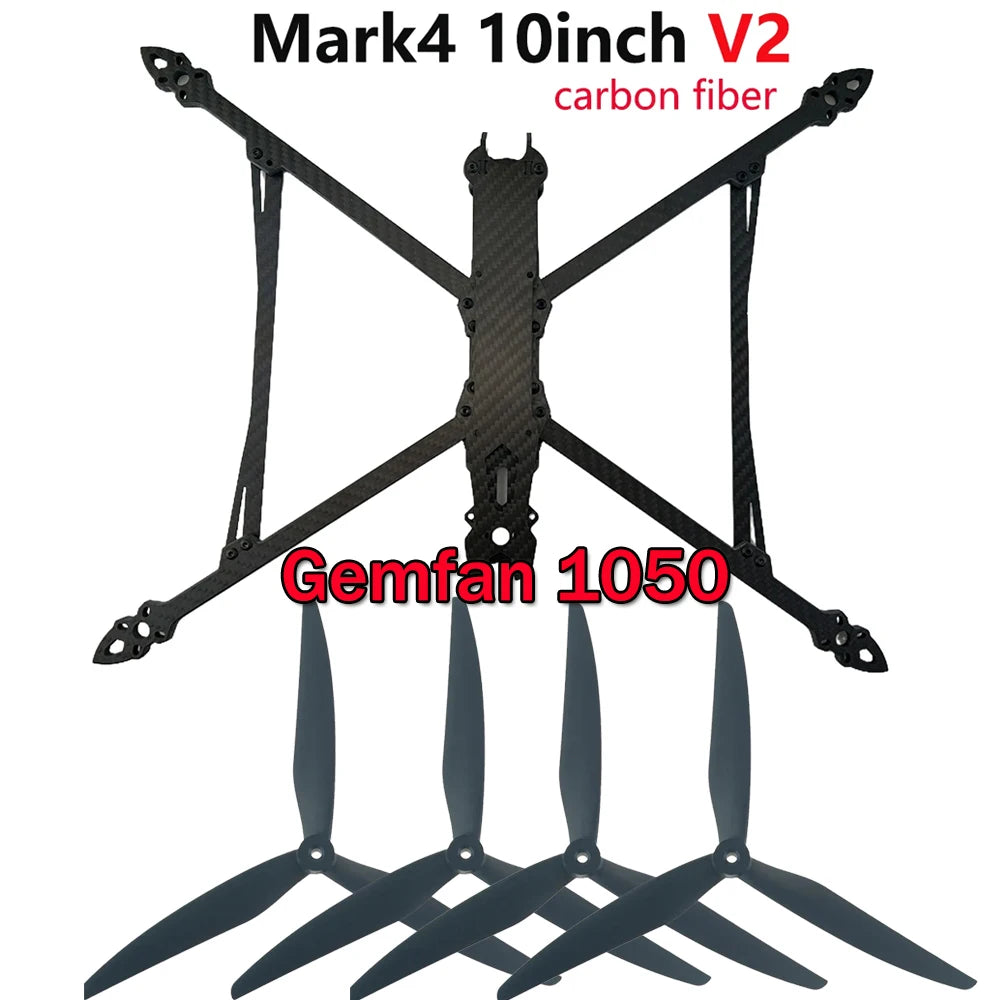

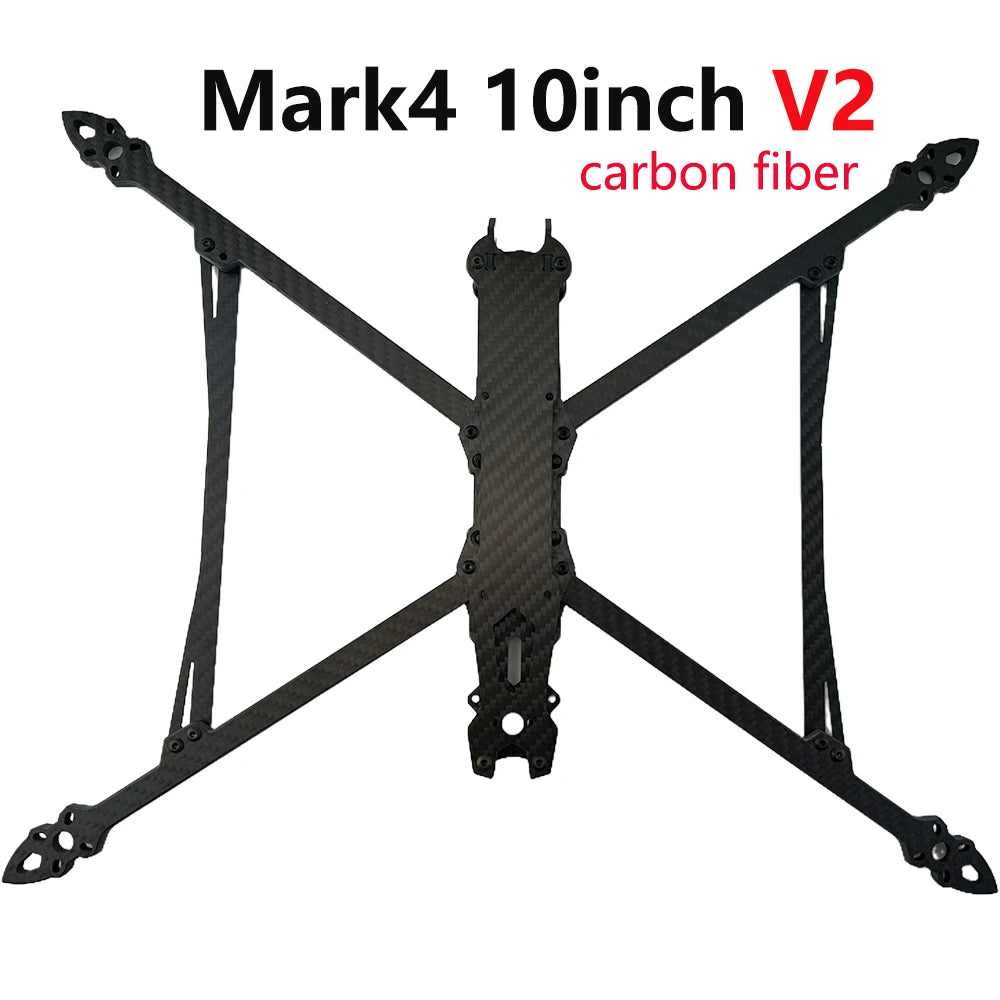

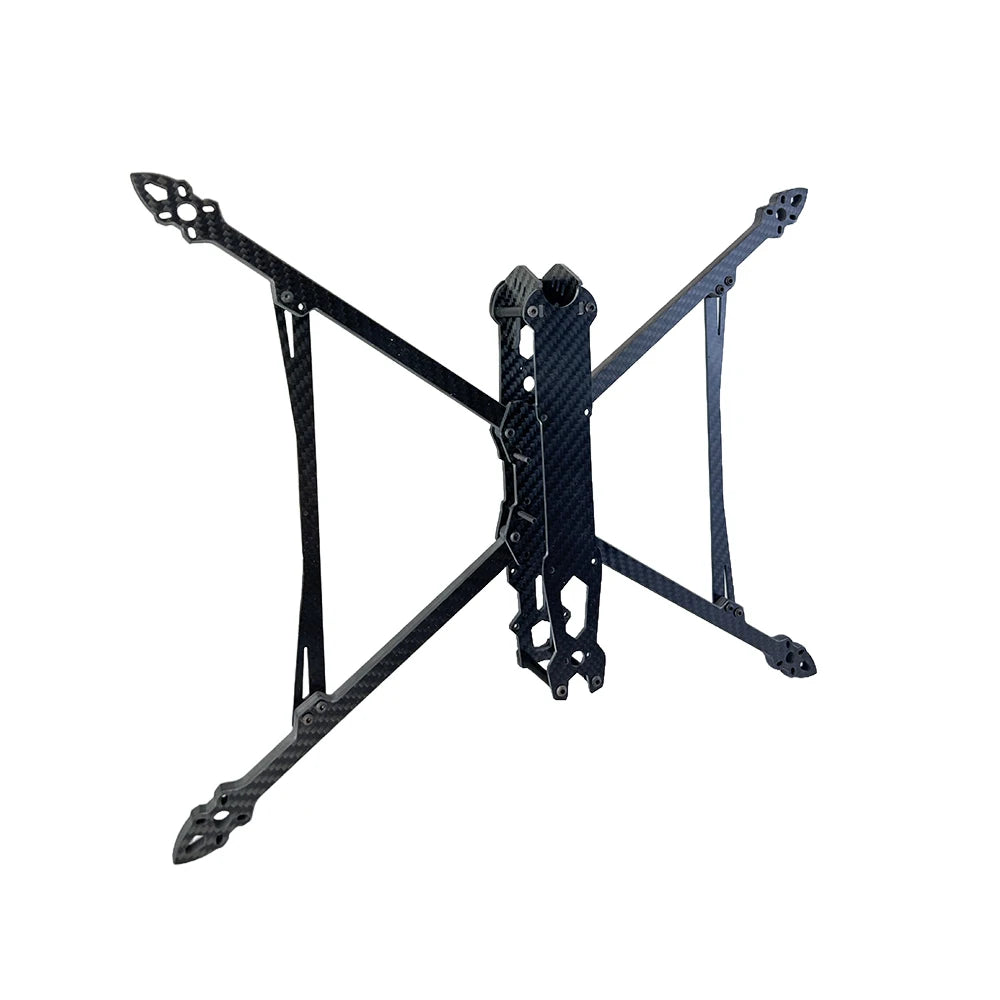

Mark4 V2 10Inch 427mm Carbon Fiber Frame
Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connecting plate: 2.3mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Please note that there may be manual errors in the measurement, and the data may not be completely accurate
Recommended parts(not included)
SoloGood F722 60A stack
SoloGood 915mhz receiver
SoloGood 3115 900kv motor
1050 props
Foxeer cat3 micro or Caddx ratel2/runcam phoenix2 SPV3
Packing List:
1set Mark4 V2 10Inch 427mm Carbon Fiber Frame
1pcs battery strap
1pcs battery mat

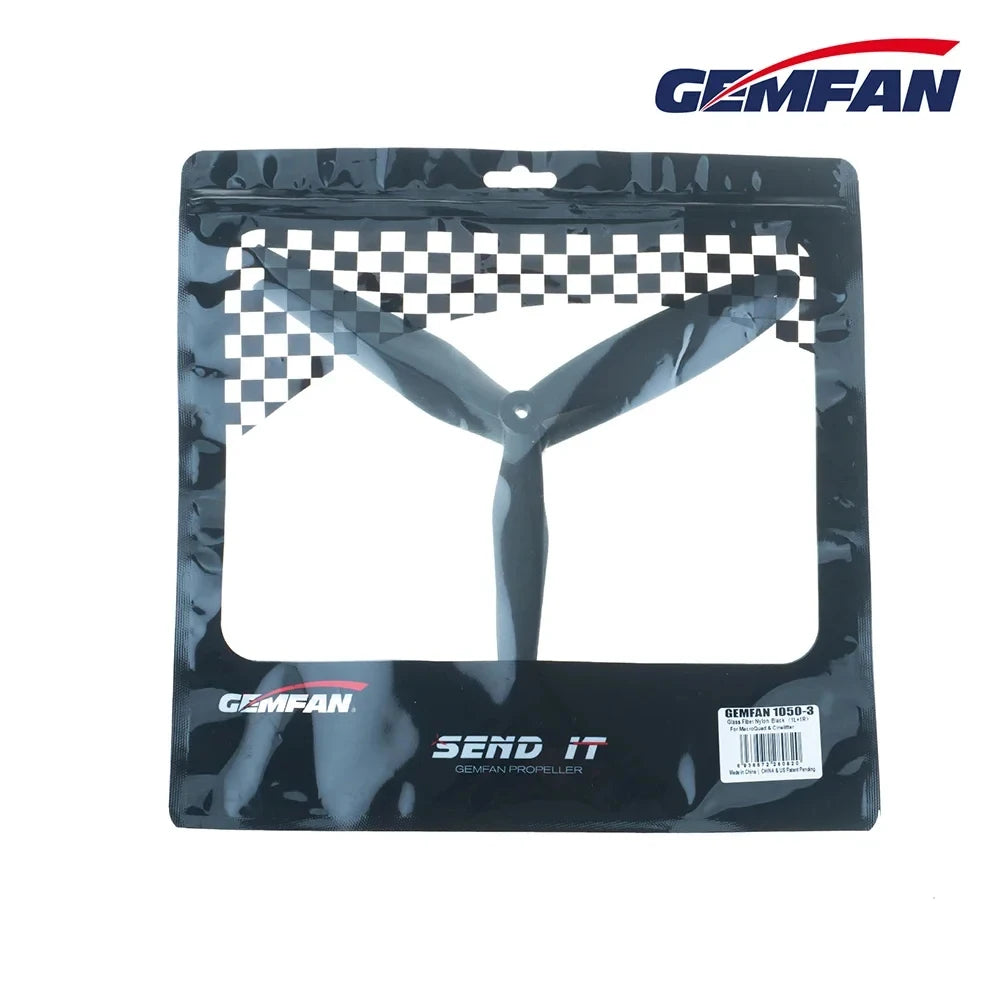

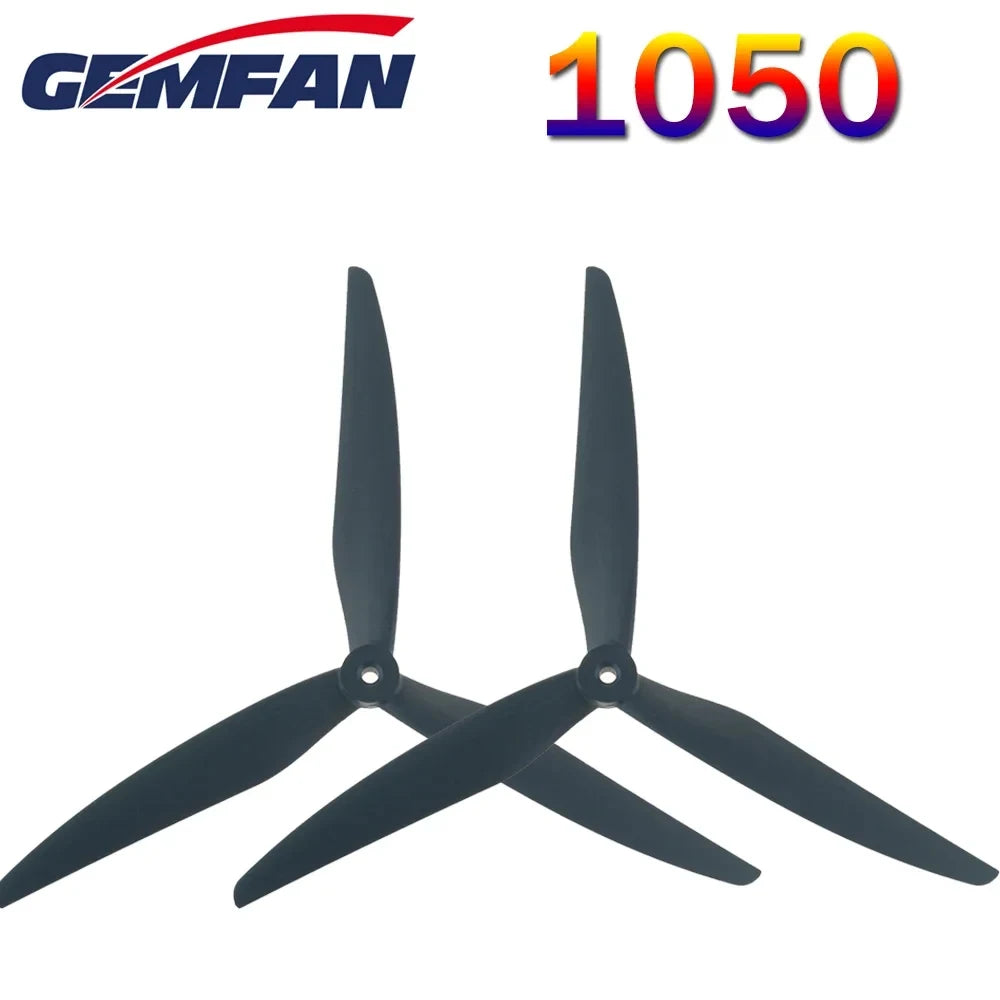

Type :1050
Blades: 3
Material :Glass Nylon
Pitch: 5in
Prop Disk Diameter :254.6mm
Center Thickness :9mm
Center Hole Inner diameter :5mm
Max Prop Width: 22mm
Weight/g :17g
Recommended Motor :3214 and up
Package Included:
2x 1050 propeller CW
2x 1050 propeller CCW
