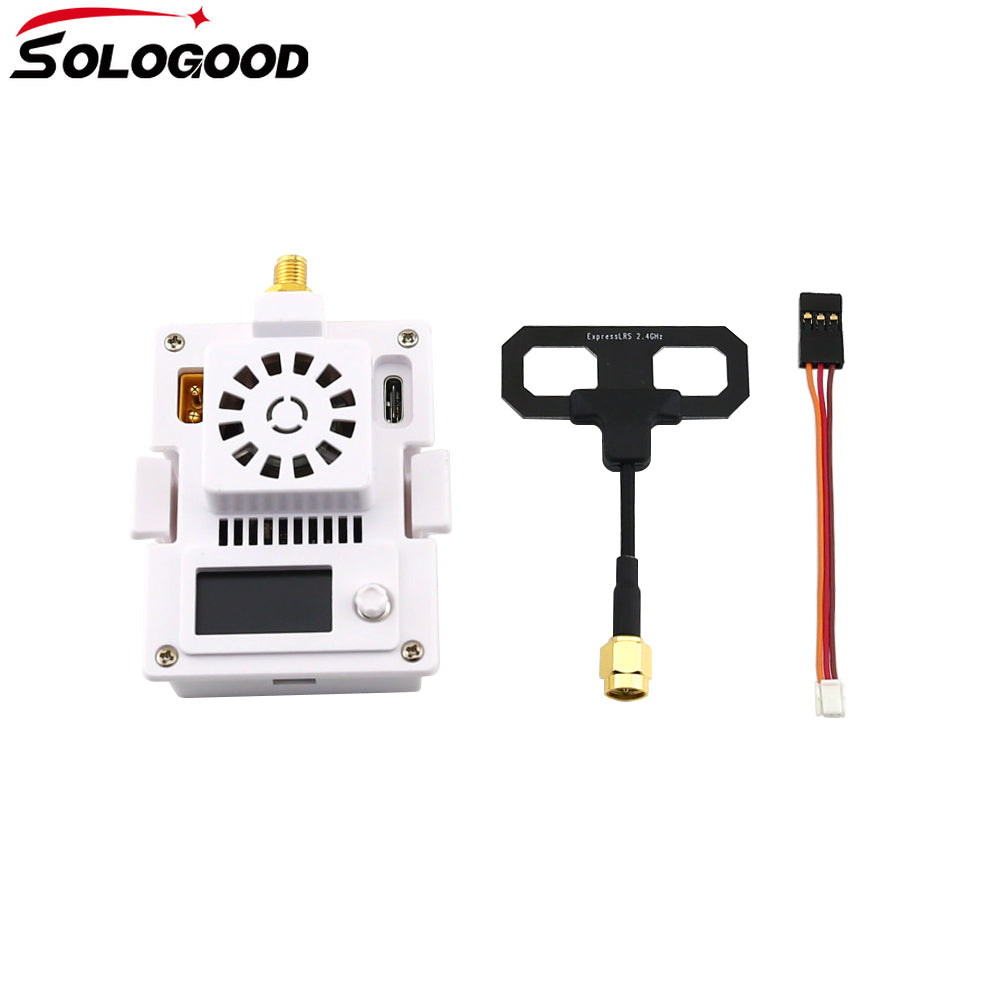

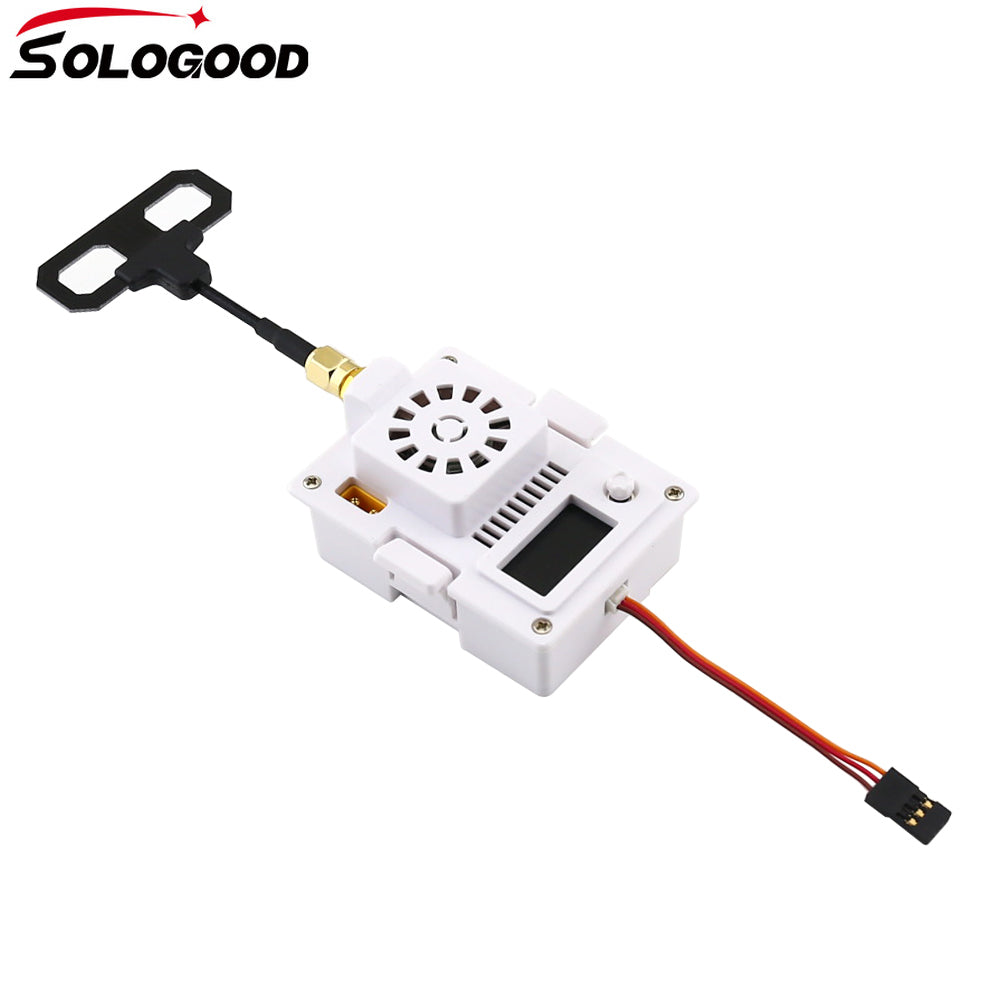

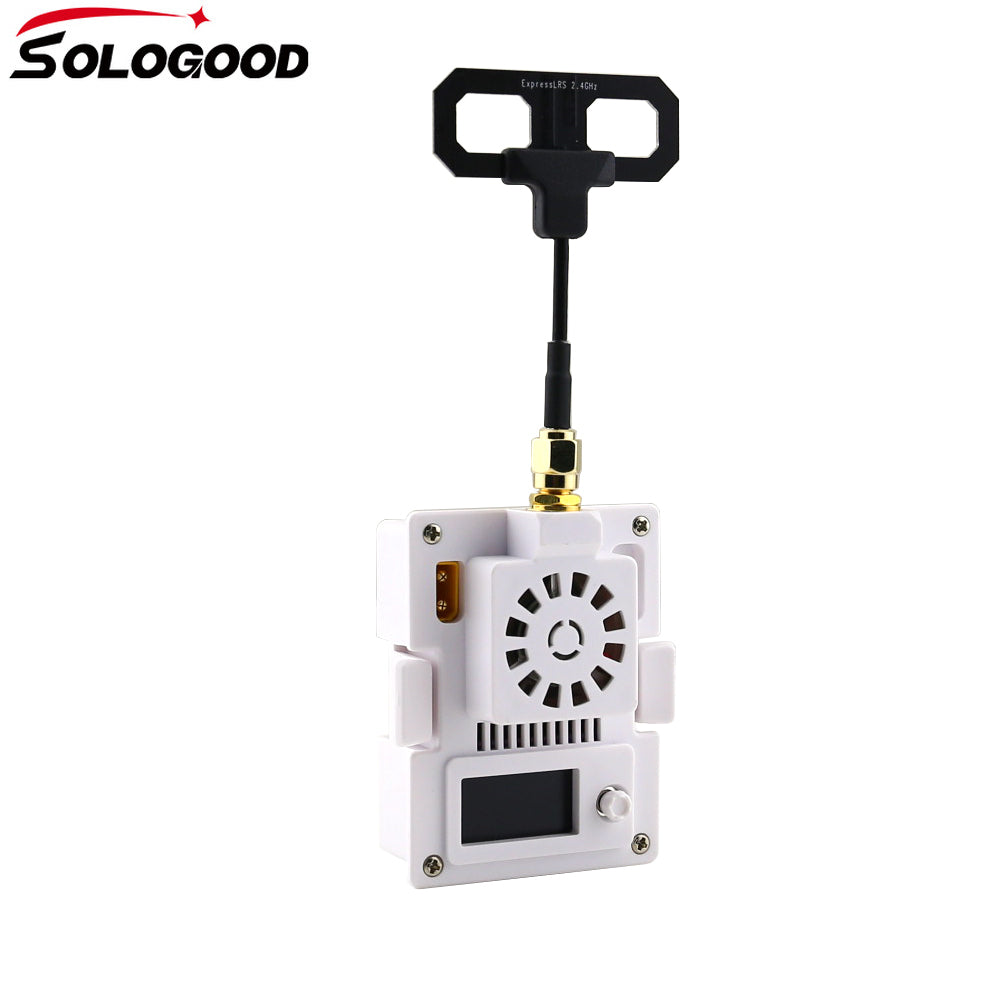

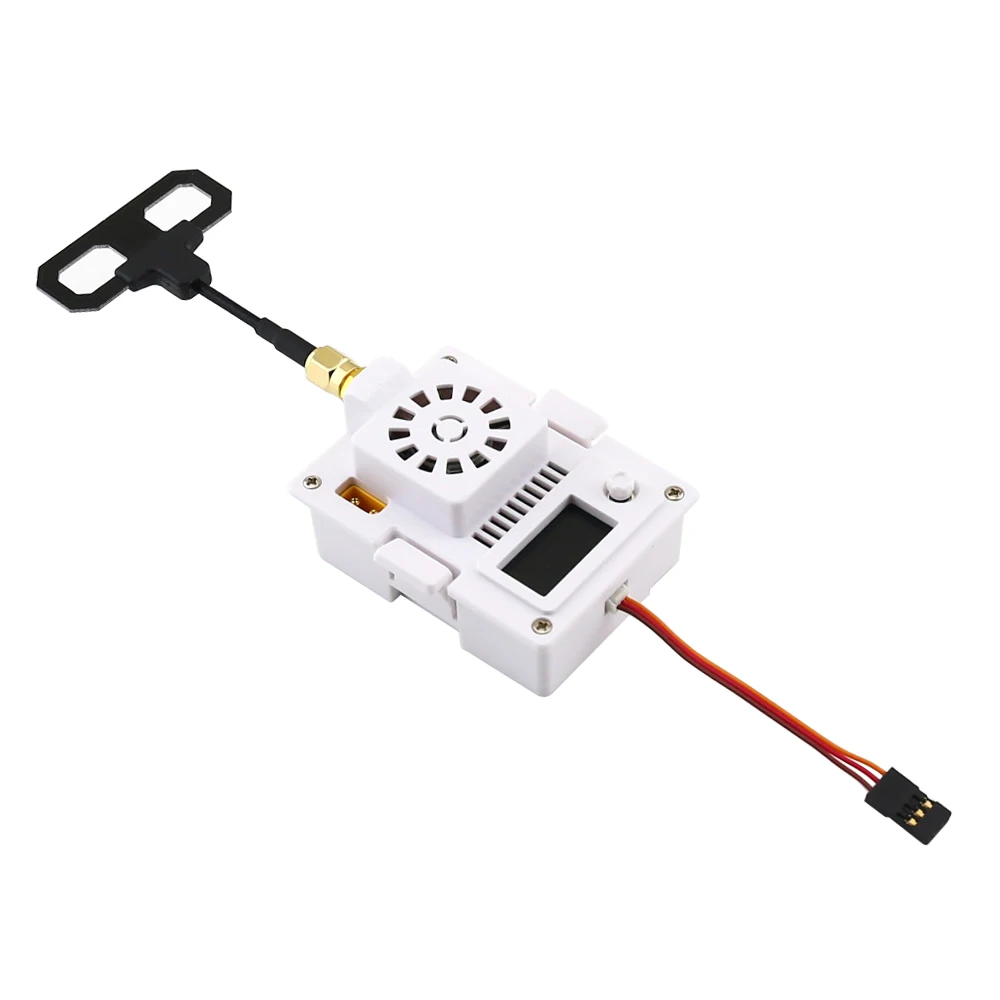

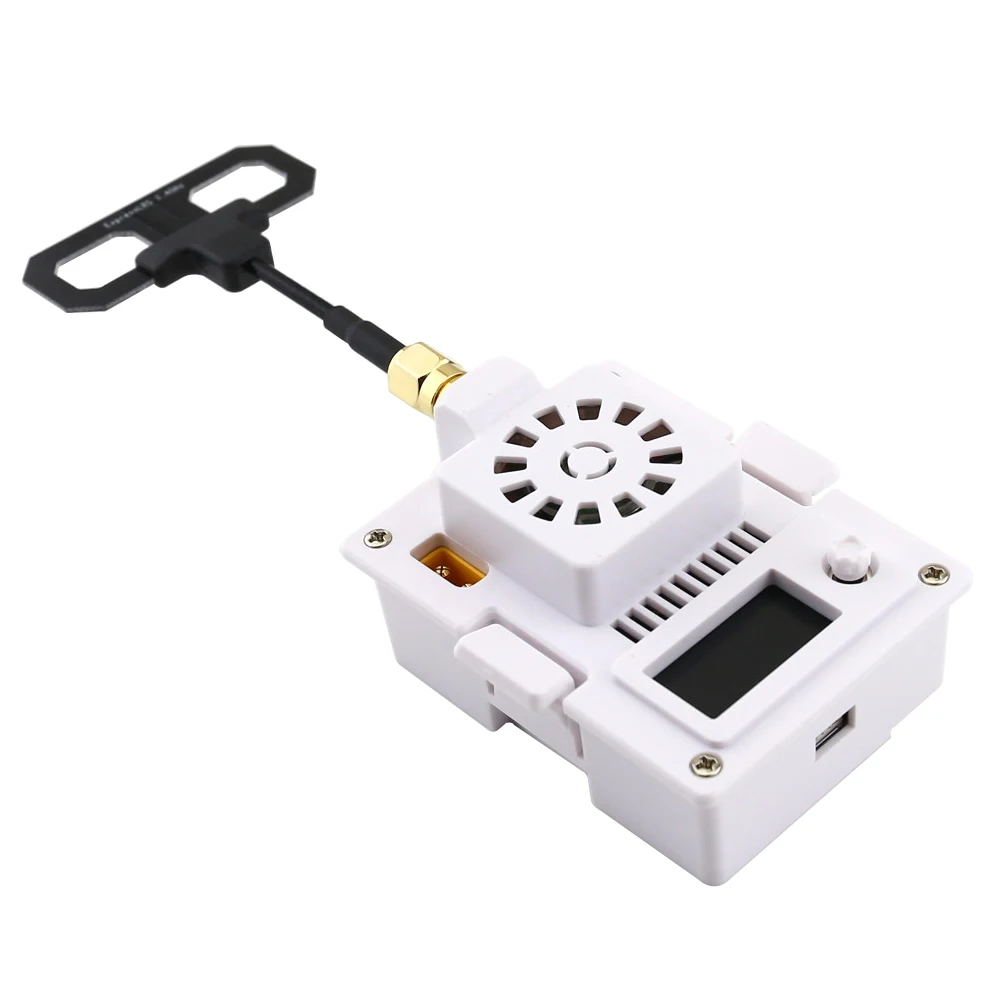

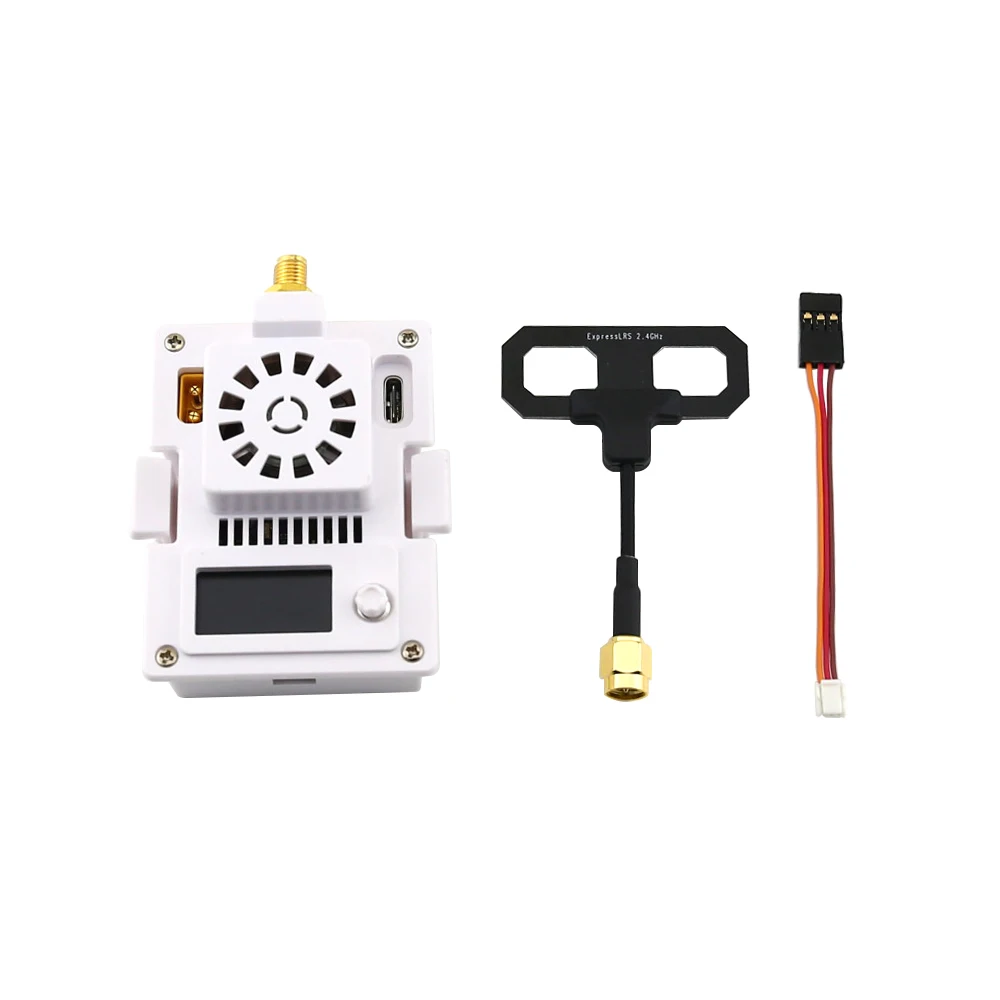

SoloGood ELRS 2.4G High-Frequency Head Voyage High Brush 500Hz Signal Enhancement General JR Warehouse External Power Supply

filler

Price:
$31.99


LCD5802S VS LCD5802D 5802 FPV Monitor 7" 7 Inch LCD Screen 800*480 5.8G 40CH with Built in Battery for FPV Multicopter



Product Parameters
Model:2.4GHz
Data Refresh Rate
50Hz/150Hz/250Hz/500Hz
RF Output Power
25mW/50mW/100mW/250mW/500mW
Frequency Band
2.4GHz ISM

Return Packet Rate: .
Can be closed, 1:2/1:4/1:81:161:32/1:64/1:128
Support WIFI upgrade

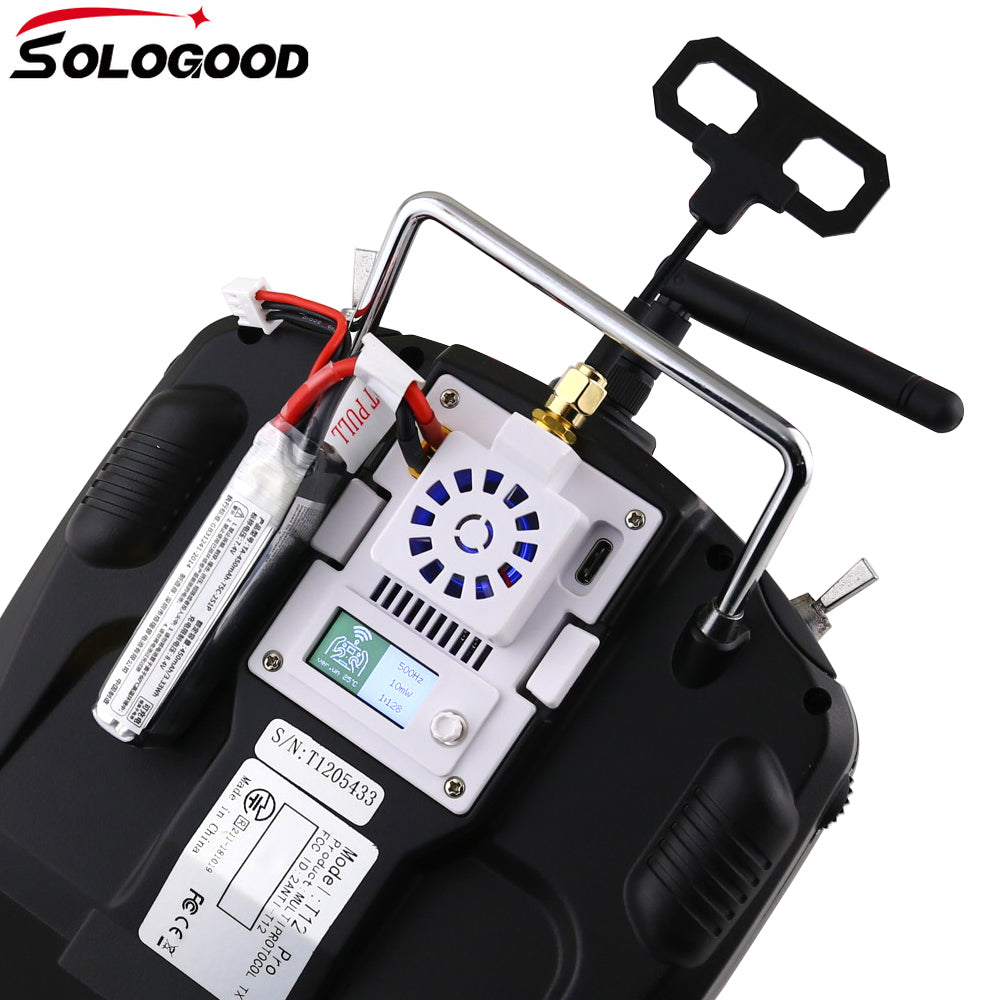

Adapt to all Kinds of Remote Control
Xiugu tuner supports the interface of JR warehouse, and provides it for those without JR warehouse interface
GND / VCC / CRSF interface, support most ELRS on the market
receiver. Supports all OpenTX remotes and some closed-source remotes
(T16IZ, T16SZ, T18SZ, ET16, etc.)



External Power Supply, Worry-free Voyage
Equipped with XT30/Type-C interface, can be externally powered (5V-12V)
2S (8.4V) batteries are recommended, 3S (12.6V) and above batteries are not supported
Failure to do so will result in permanent damage




Special Function

Built-in Overvoltage Protection Chip

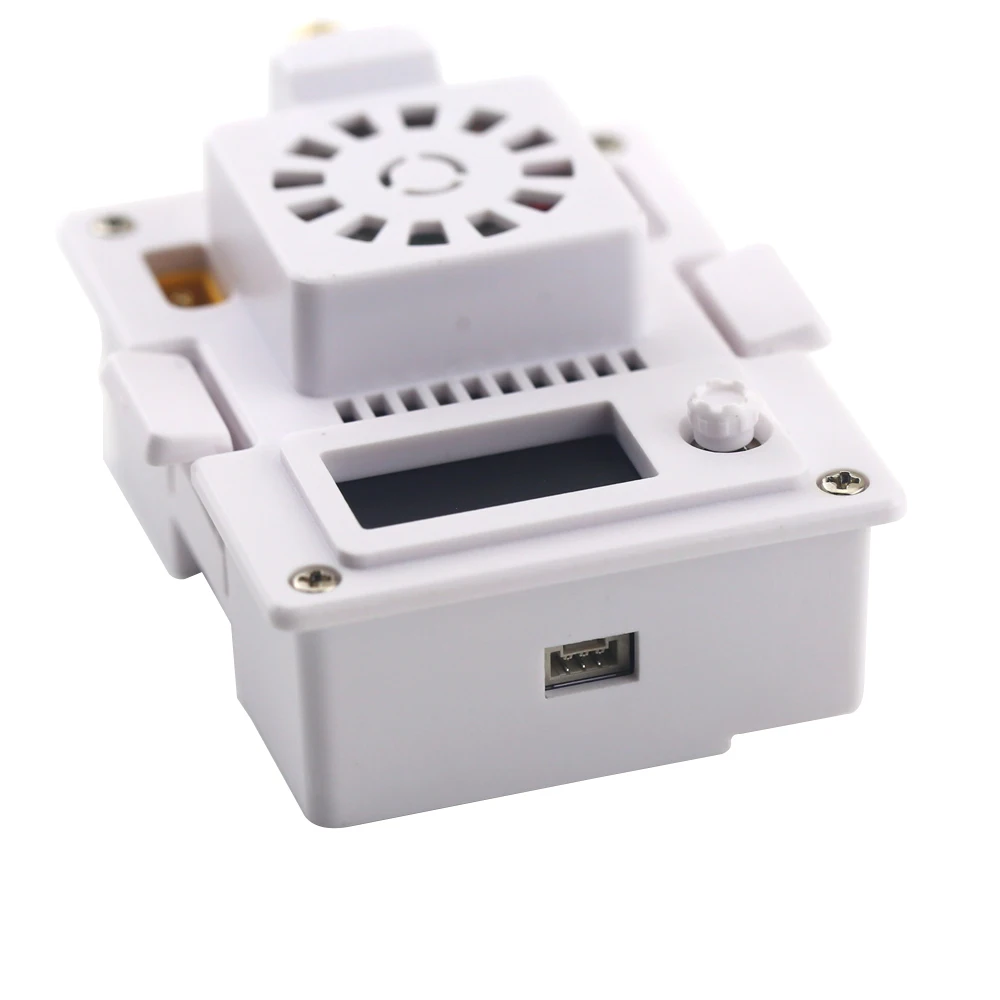

5PIN Relax Plug
Type C Data Serial Port
XT30 Powered



Easily adjust Parameters
High Brightness Color Screen
True five-way Button



Transmit Power
10/25/100
250/500 (mW)

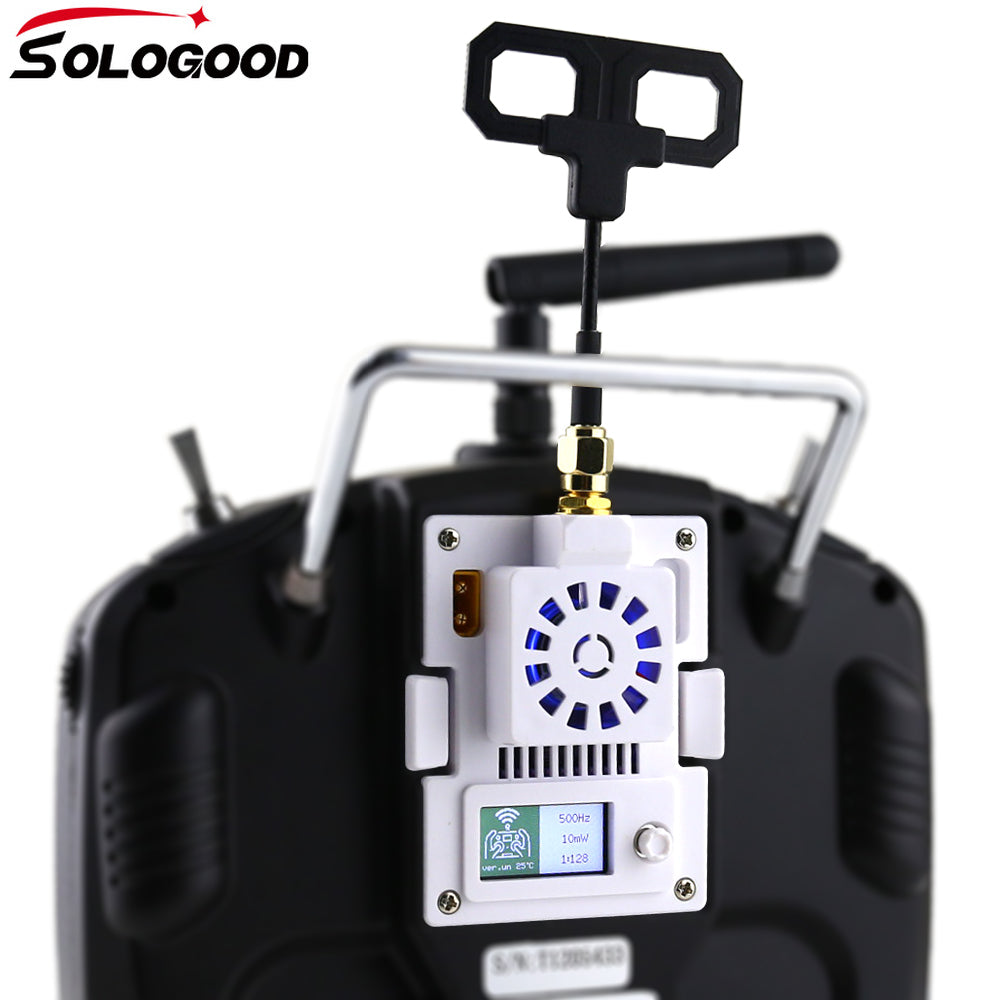

Upgrade With TFT Color Screen
Built-in TFT color screen and a 5D parameter adjustment button (use short press as a touch switch
switch, long press to confirm), adjustable parameters include transmit power data packets
Frequency, return rate, RGB light color, pair frequency, upgrade

Maximum power 500mW
2.4GHz: 25mW/50mW/10mW/250mW/500mW



Precautions
1. Do not connect 3S or above Batteries to The Micro Tuner. Otherwise, Permanent Damage Will be Caused

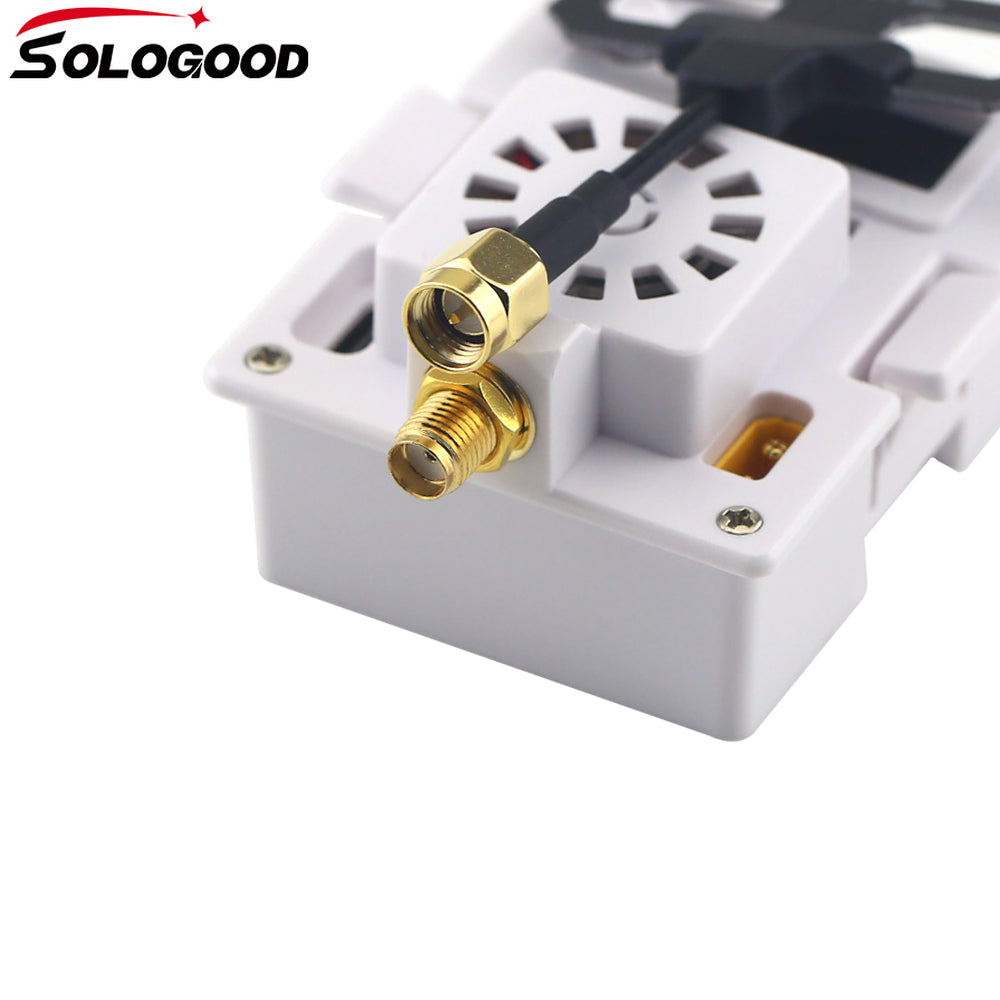

2. Before Powering on The Micro Tuner, Please install the Matching antenna. Otherwise, it Will Cause Damage to The PA Chip of The Tuner
