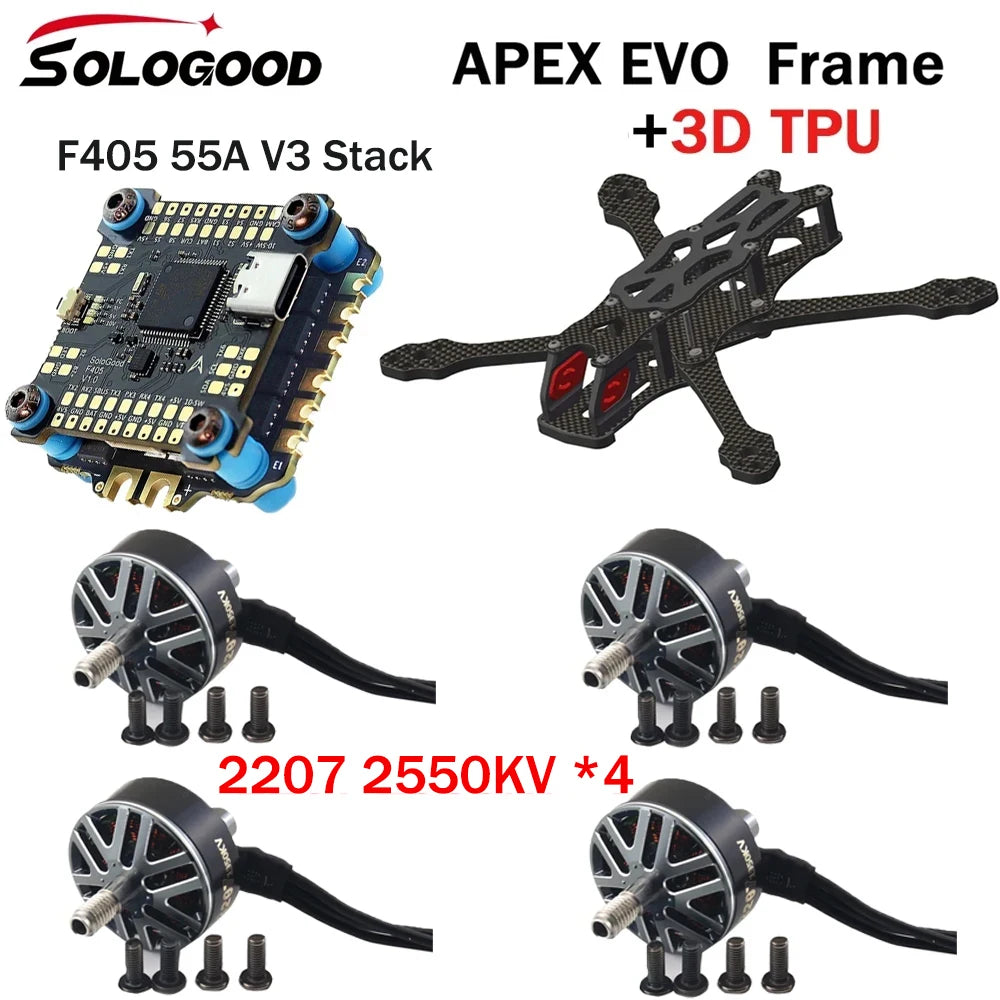

SoloGood APEX EVO Frame Kit F405 55A V3 Stack ICM42688P BLS55A 4in1 ESC 2207 2550KV 2-6S Lipo Unibell Brushless Motor

filler

Price:
$116

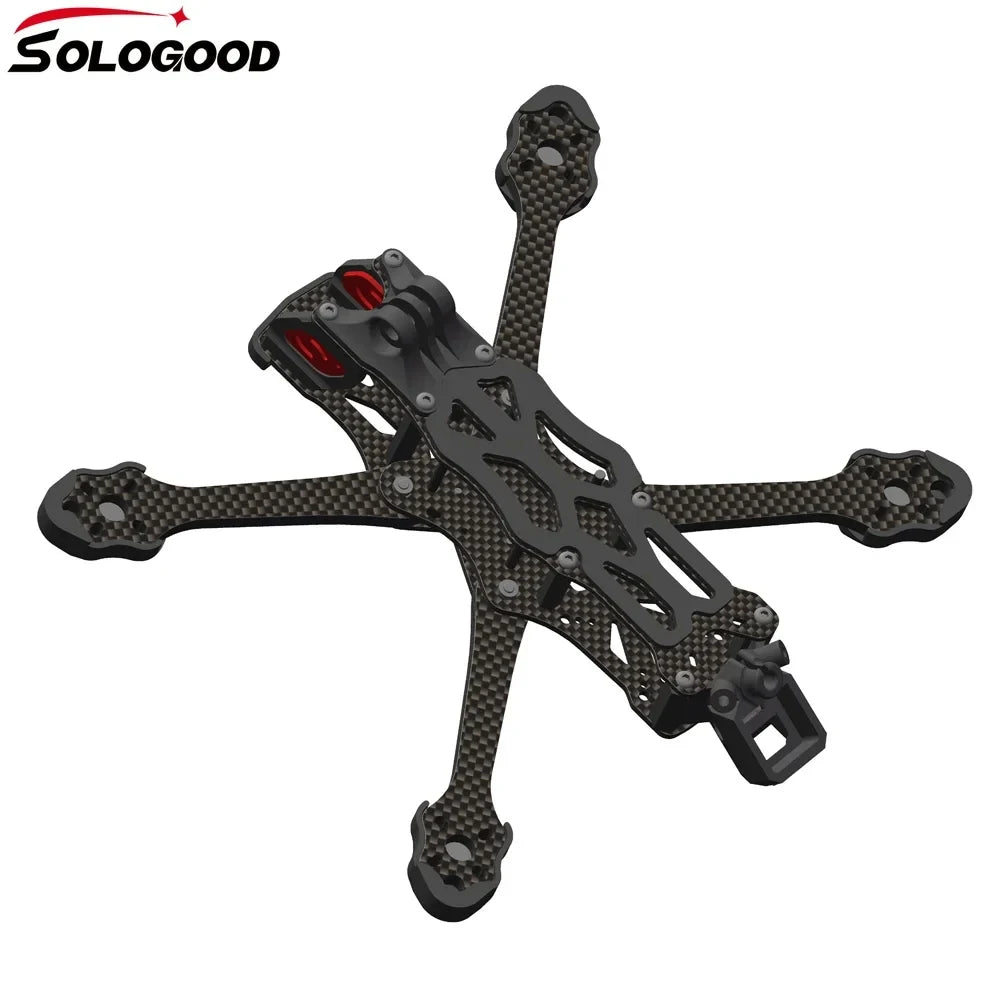

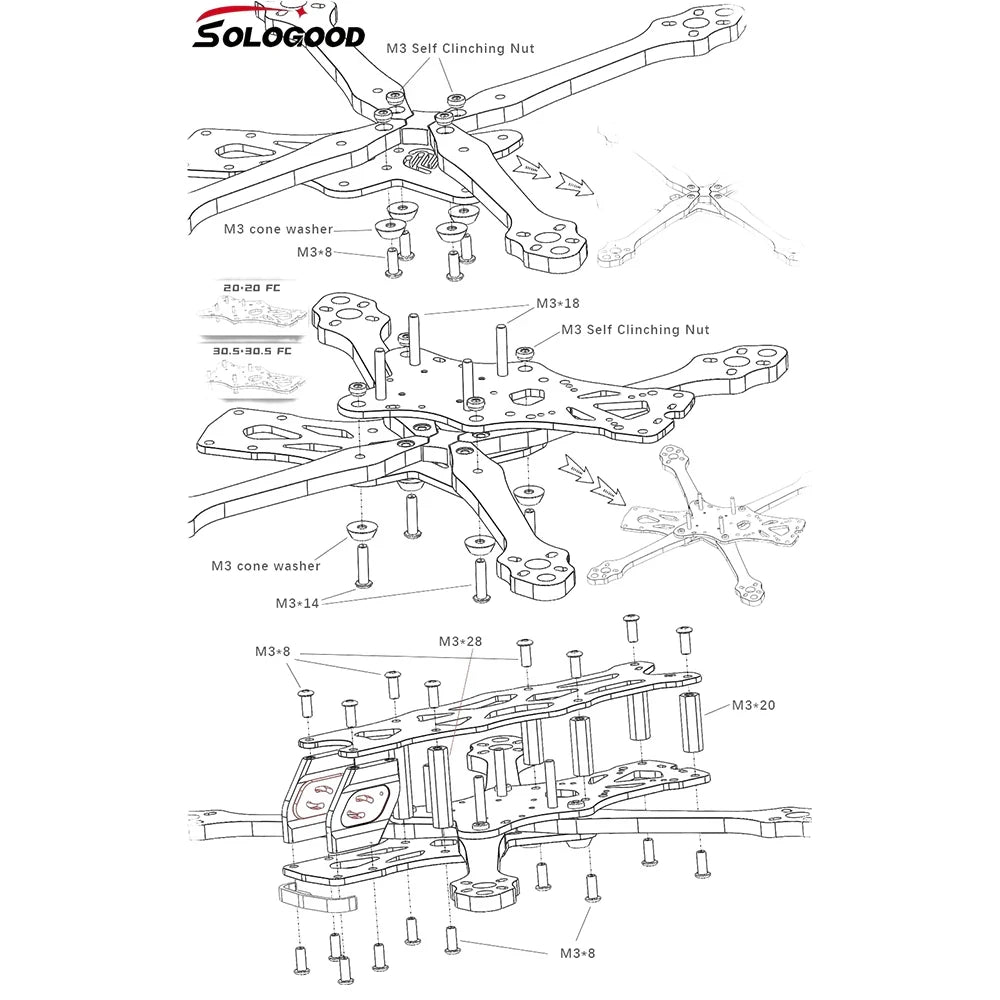

Specification:
Brand Name: SoloGood
Model:  APEX EVO.
Wheelbase:225mm(5inch).
Arm Plate Thickness: 5.5MM.
Bottom Plate Thickness: 2.5mm.
Upper Plate Thickness: 2.5mm.
Side plate thickness: 2mm.
Aluminum column height:28 / 20mm.
Weight: 130g/Including 3D printed parts 158g(Different production batches will vary ).
Material: 3K Carbon Fiber.

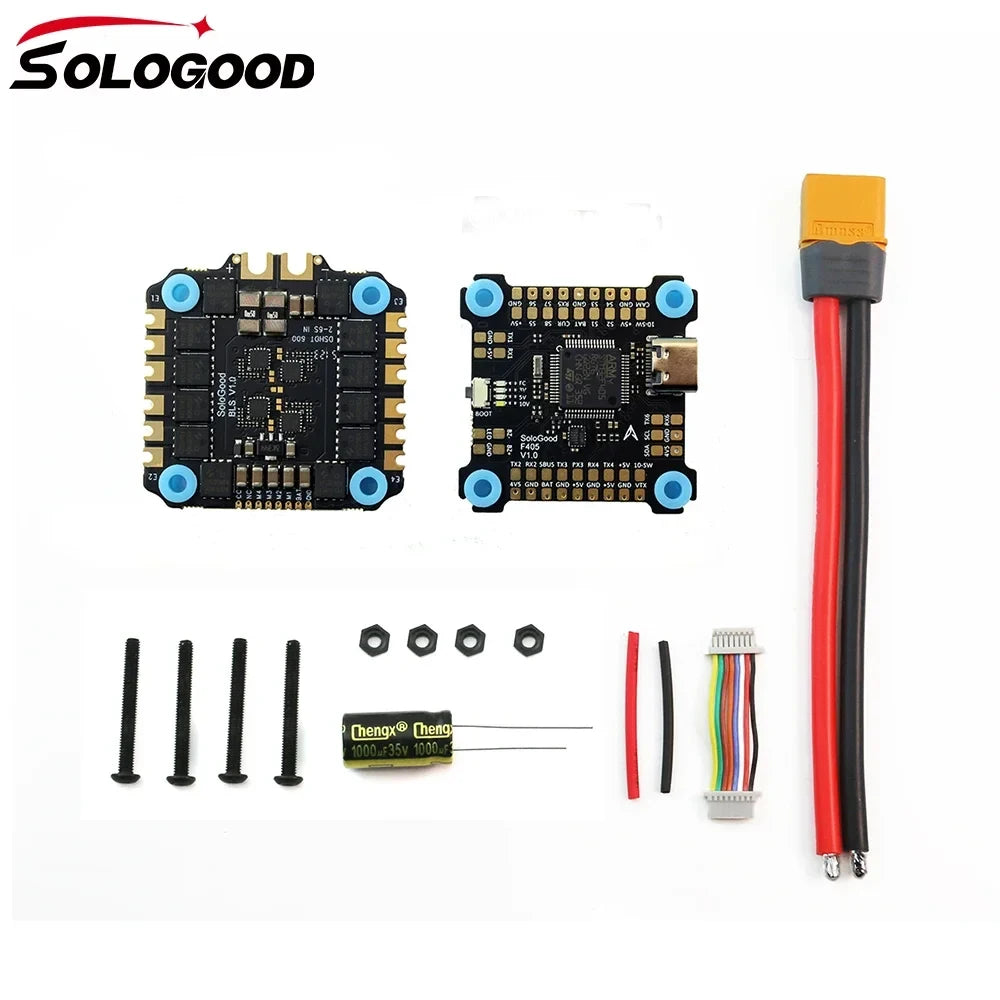

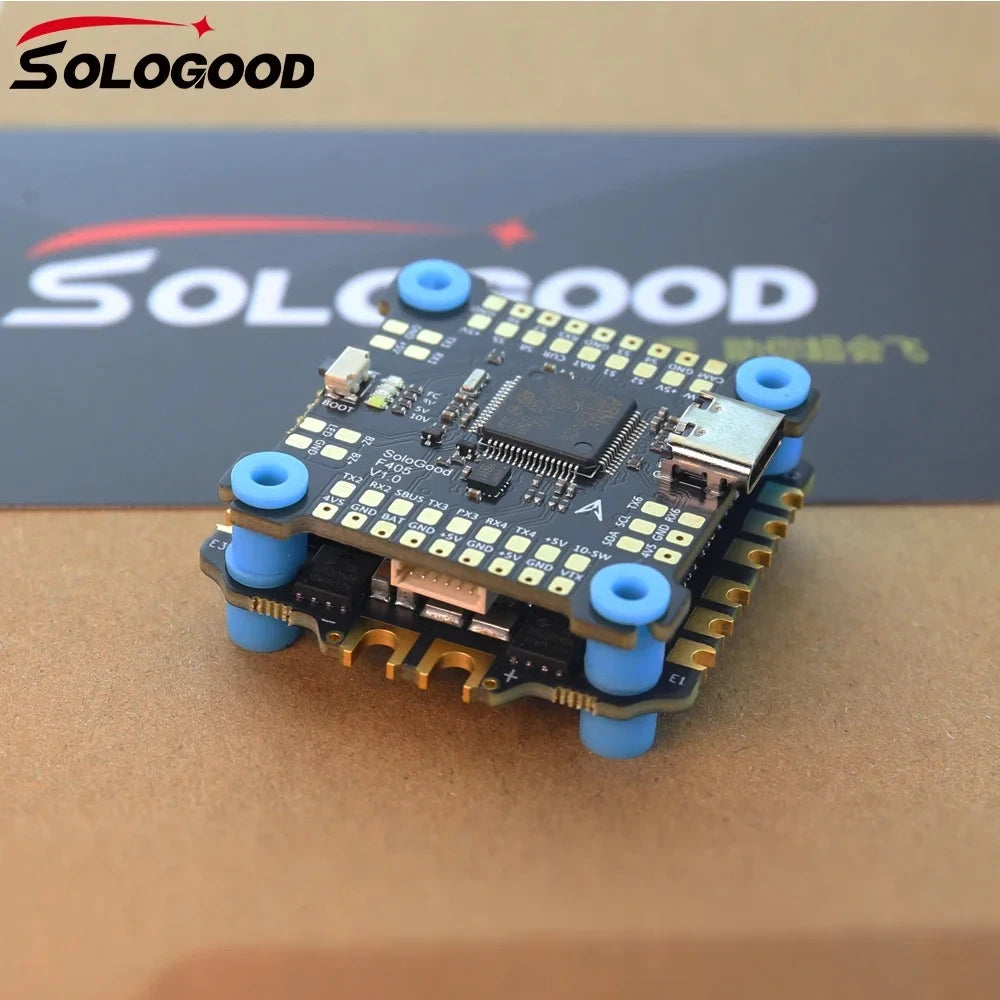

SoloGood F405 Stack

Input voltage: 3-6S Lipo(11v-26v max)

Installing Hole: 30.5*30.5mm, M3

Support Protocols: DShot600/300

Weight: 23g

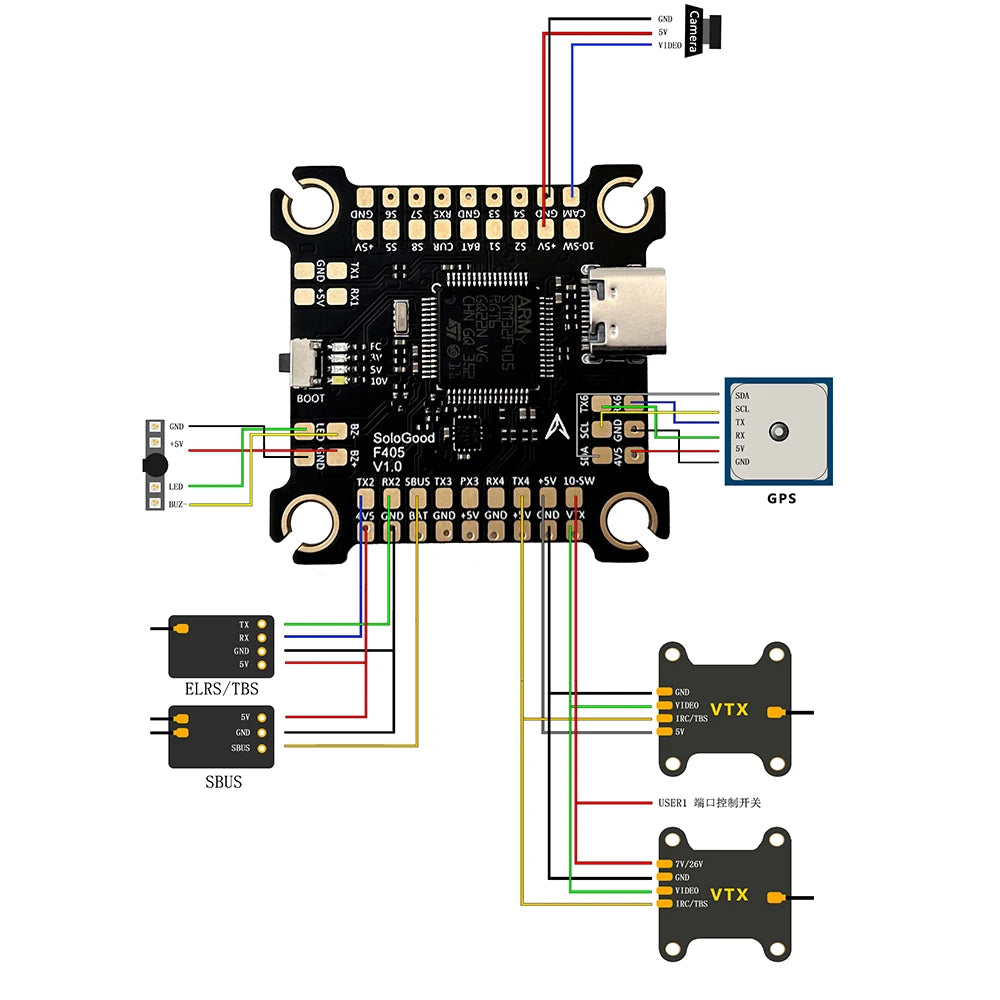

FC Specifications



Main control: STM32F405

Gyroscope: ICM42688P

Barometer: Support SPL-06

OSD: Support (AT7456E)

BEC: 10V/2A, 5V/2A

UART port: 6

Black box: onboard (16M flash memory)

Number of supported motors: M1-M8

Firmware name: BETAFLIGHT: SOLOGOODF405

Input voltage: 3-6S lithium battery (11-30V MAX)

Output voltage: VBAT

Installation hole: 30.5x30.5mm (4mm aperture)

Flight control size: 38.5x38.5mm

Weight: 8.1 grams

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

DJI/Vista: Support/6pin

Electric regulation

TVS protective diode: Yes

External capacitor: 1000uF high-frequency low resistance capacitor (included in the packaging)

ESC/Motor Protocol: DSHOT300/600

Continuous current: 55A

Maximum current :65A

Installation hole: 30.5x30.5mm (4mm aperture)

Sologood BLS55A 4in1 ESC SPEC:

Firmware: BLHELI-S: J-H-30-16.7

Continuous current 55A

Maximum current 65A

Electric dispatch protocol support: DSHOT300/600

Input voltage: 3-6s

Galvanometer: Yes

TVS diode protection: Yes

External capacitor: 1000UF high-frequency electrolytic capacitor

Installation hole position 30.5x30.5mm (4mm hole)

Size: 41.5mm X42mm

Weight: 15g

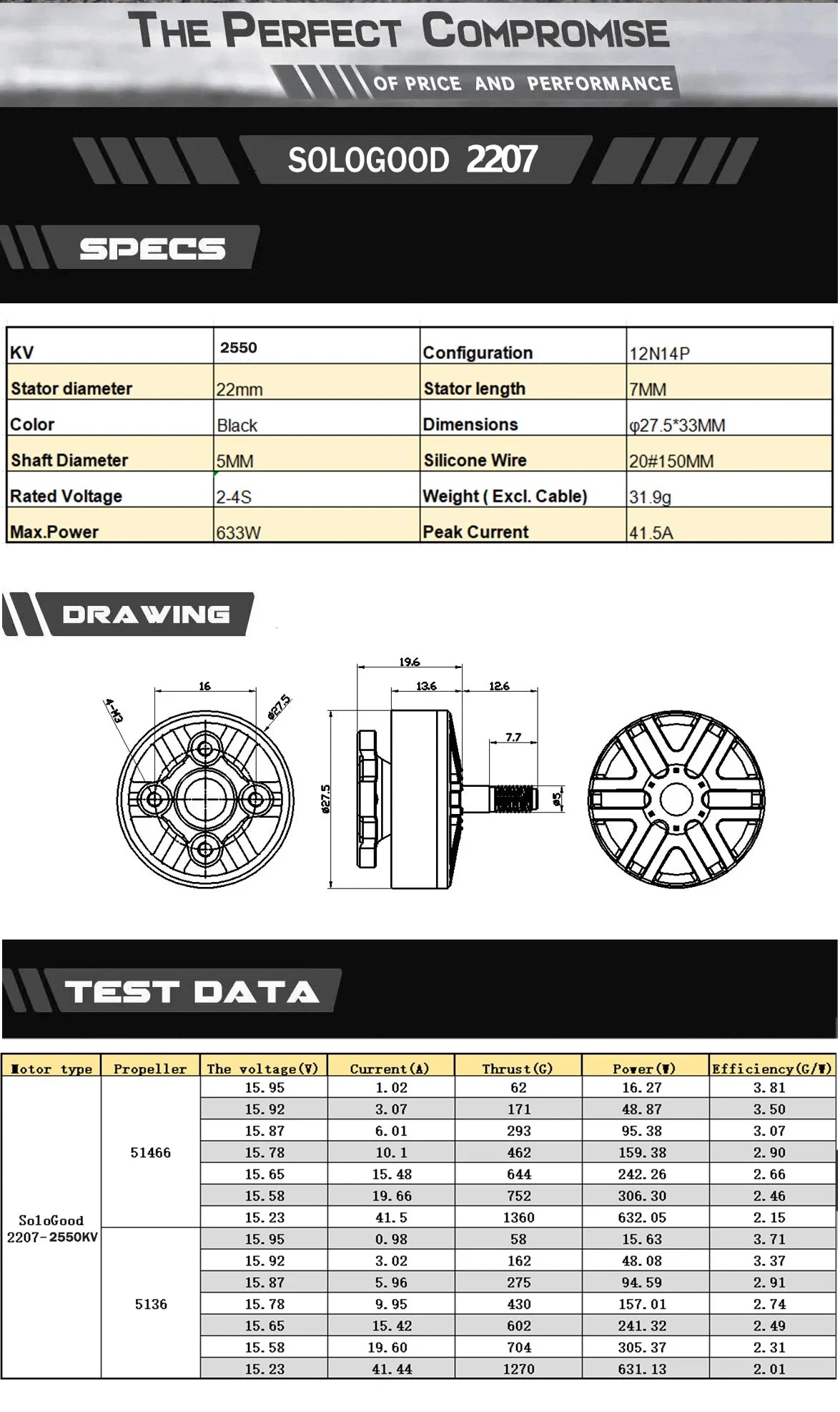

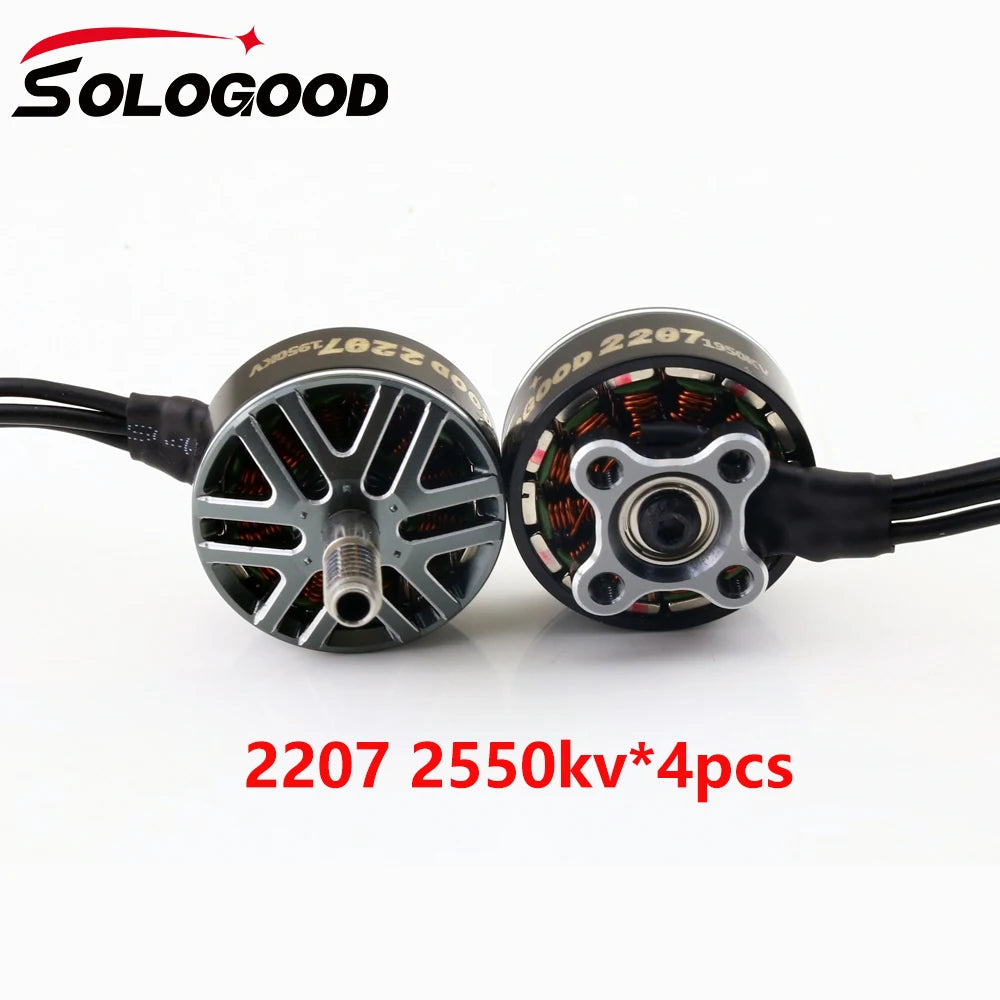

Specifications:
Configuration: 12N14P
Stator Diameter: 22mm
Magnets: N52H Curved
Shaft Diameter: 5mm / Steel
Weight: 31.9g (20#150MM wires)
Cells (LiPo): 2550KV 3-6S
