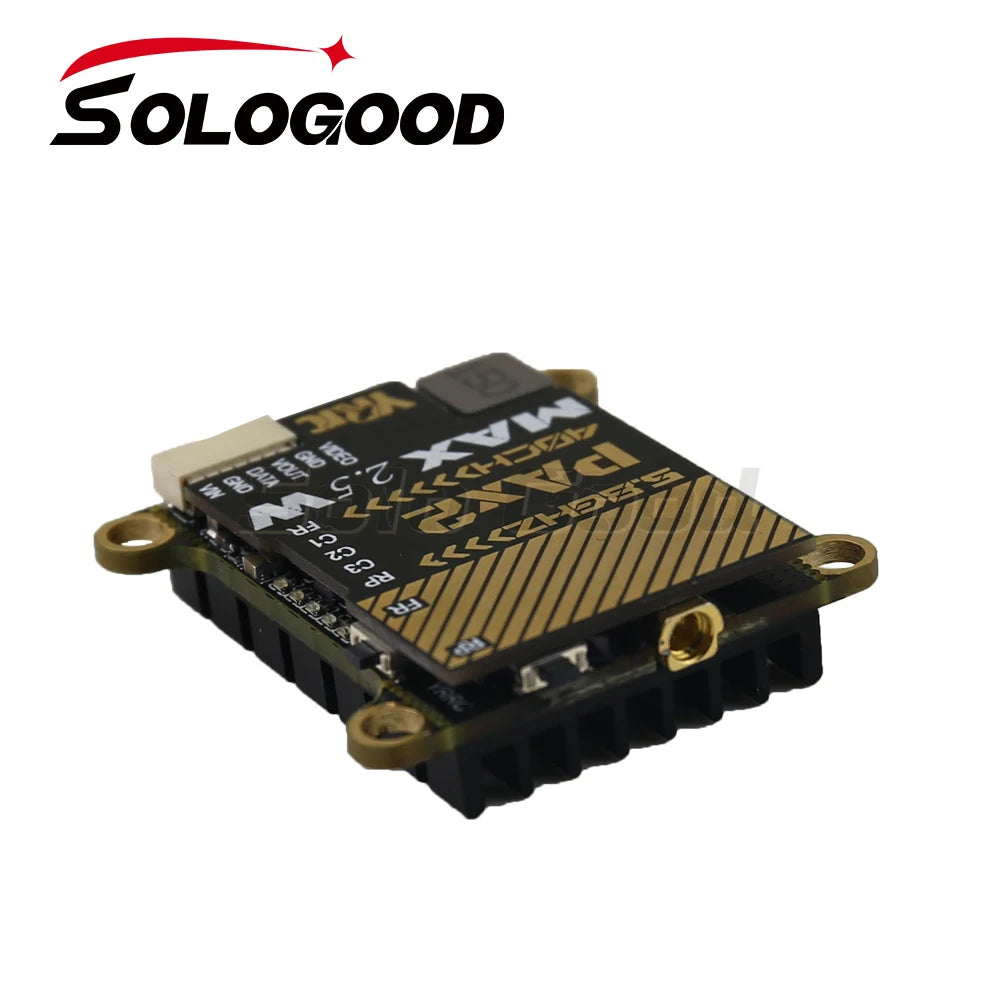

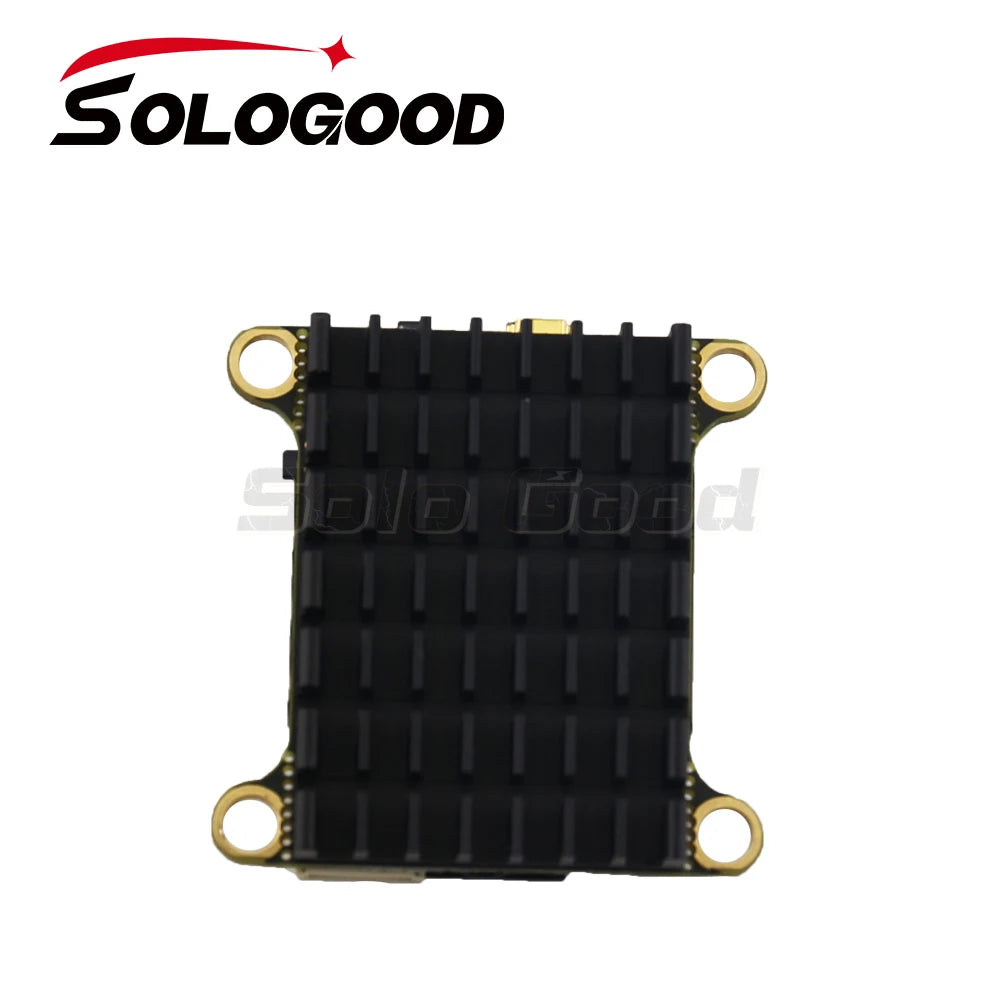

Produkt specification:
Output power: 0-25-400-800-1500-2500mW
Input voltage: 6-36V
6-36V
Parameter adjustment mode: Double button/OSD
Operating current: less than or equal to 450mA@12V , 800mW
Less than or equal to 850mA@12V , 2500mW
Output frequency: 40CH (A-B-E-F-R)

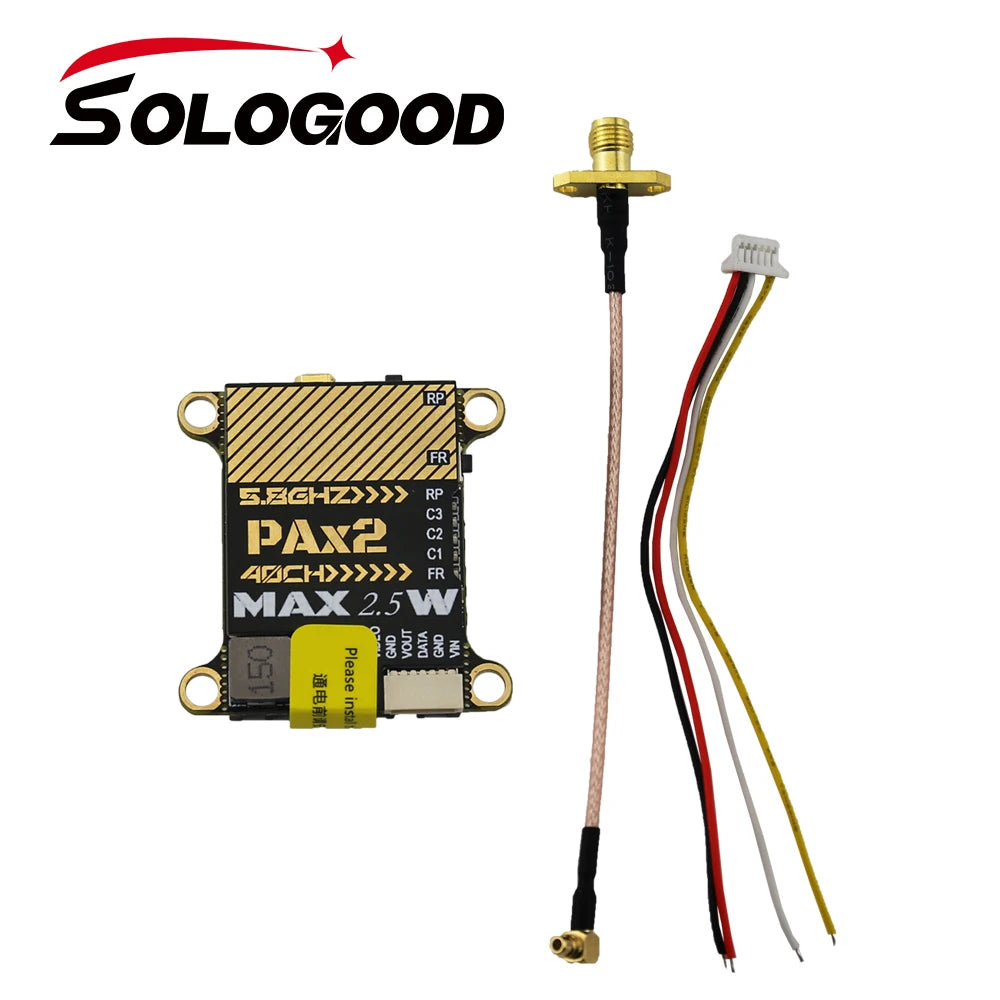

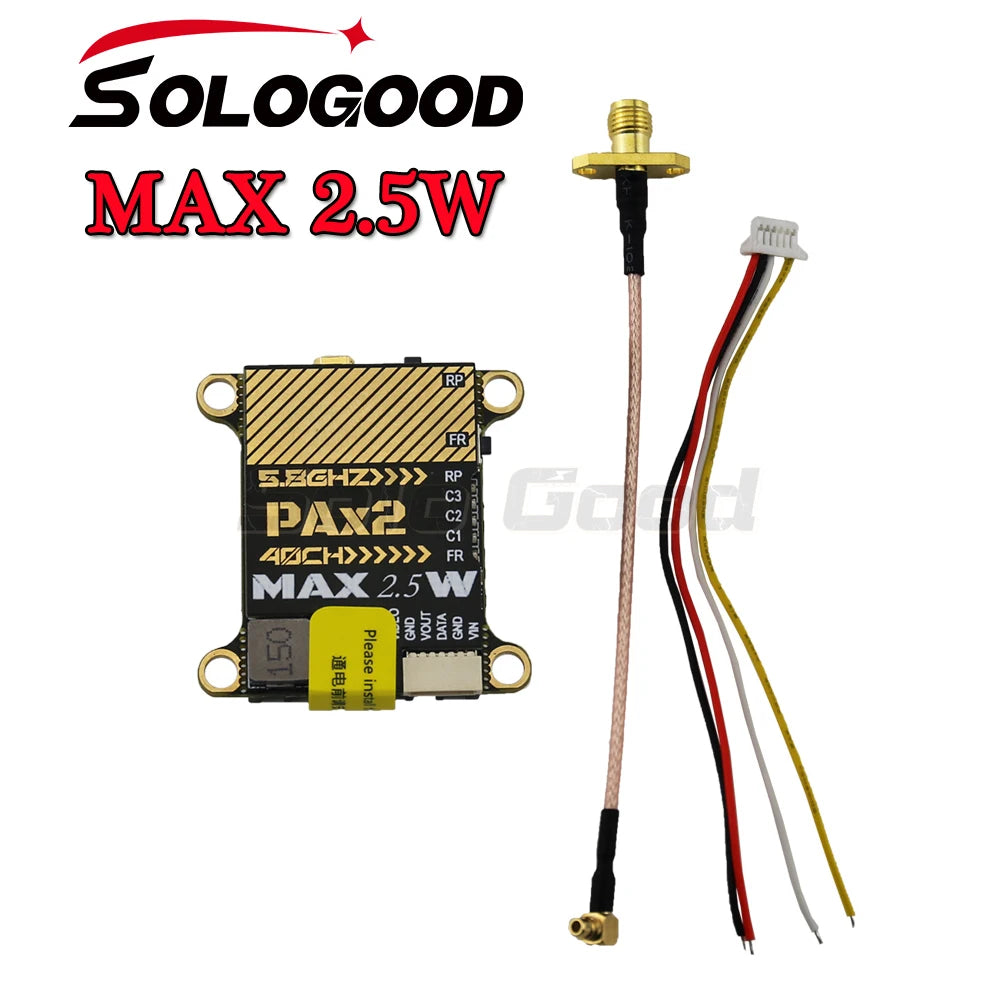

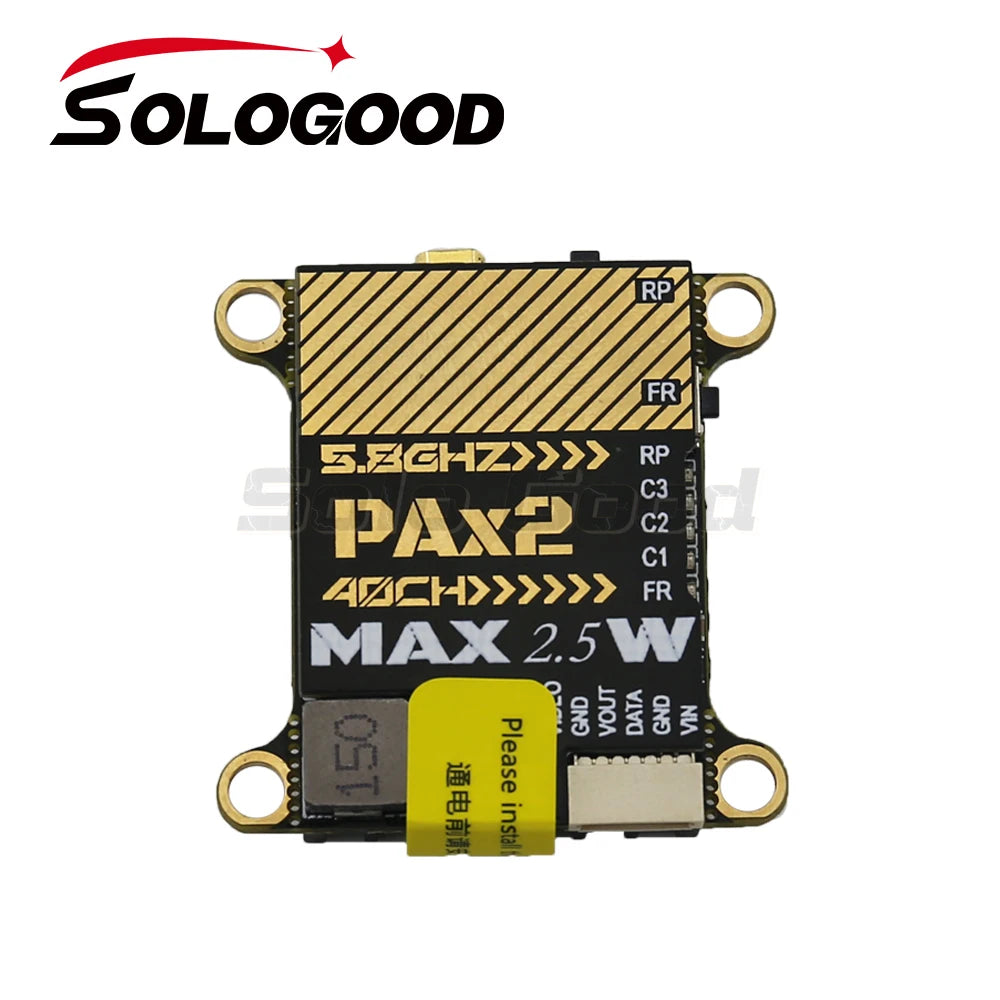

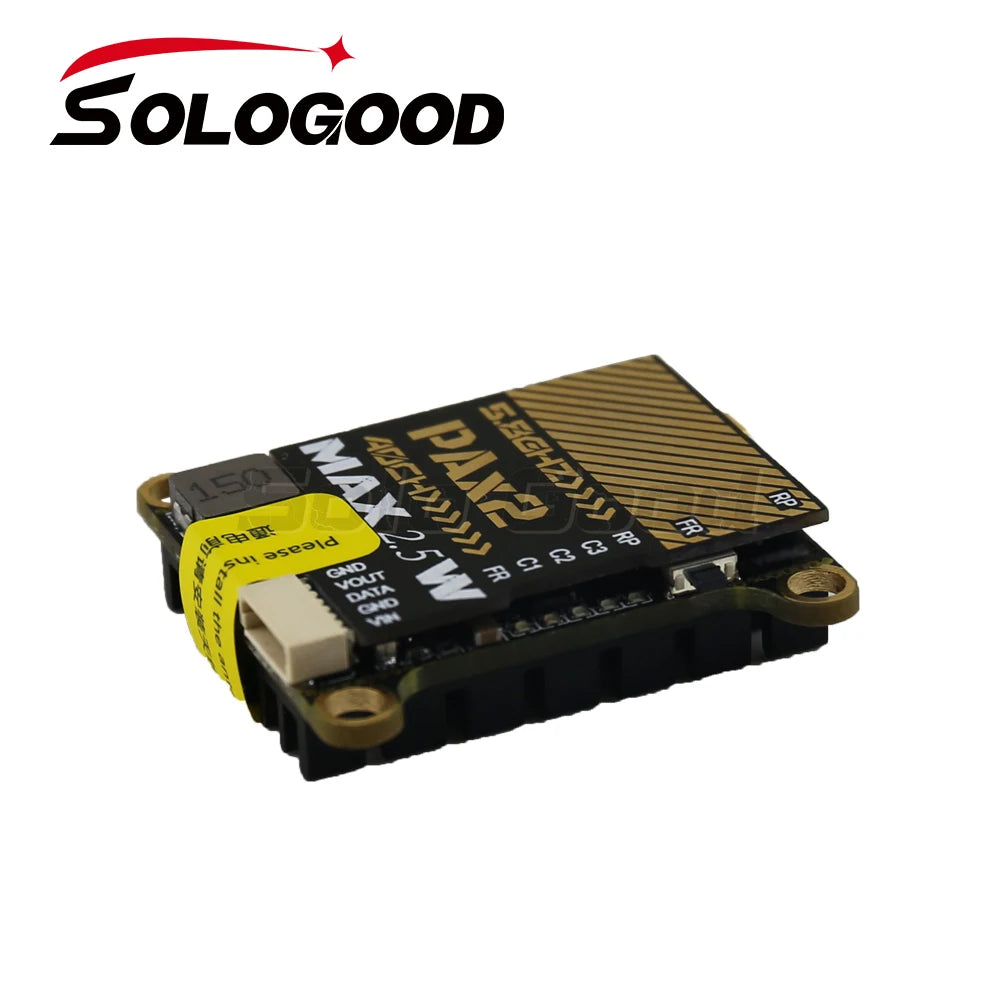

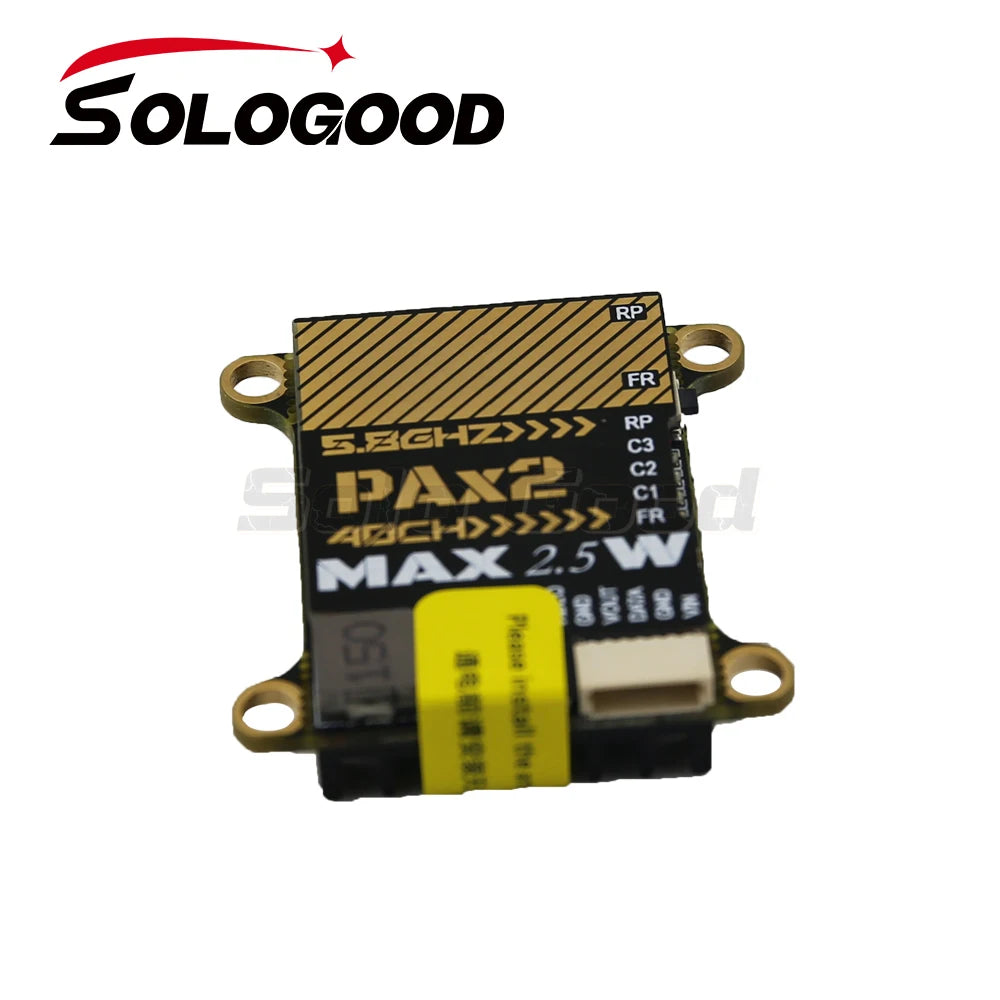

Antenna interface: MMCX
Mounting hole: 30. 5*30.5mm
Video format: NTSC/PAL automatic detection
Weight: 12.5 g (without antenna and power cable)
Dimensions: 35.5*36.5*10mm
Funktioner
1. comes with self-testing function so you can quickly check whether image transfer is normal or not
2. frequency lock function, does not disturb the companion when the power is on
3.0-2.5W adjustable power so you can switch seamlessly between different environments
Instructions
Frequency setting: For every short press of the KEY-FR key, the frequency will progress between CH1 and CH8, cycle through and save.
Frequency band setting: Press and hold the KEY-FR key for more than 3 seconds, and the frequency setting will switch to the band setting state. The LED FR light will flash quickly. At this time, for every short press of the KEY-FR key, the frequency band will gradually and cyclically switch between A-B-E-F-R, and the LED FR light will flash 1-2-3-4-5 times. Press and hold the KEY-FR key again (>3 seconds and<10 seconds) or timeout (>10 seconds) without pressing the key. Exit this setting mode, and the system will automatically update the frequency band and frequency point parameter settings and save them.
Power settings:
For every short press of the KEY-PW key, the power level will progress from low to high and cycle through levels 1-2-3-4-5. The LED PW light will flash correspondingly 1-2-3-4-5 times, and the system will update the settings but not save the set parameters.
At any time, double-click the KEY-PW key (with an interval of less than 0.5 seconds), and the power setting will jump directly to level 5 (maximum power), with the LED PW light flashing 5 times.
To prevent high power from burning out the amplifier module, this product does not save user power settings and always starts from the first level (lowest level) when powered on.
Reset to factory settings: Press the LED_FR key for more than 10 seconds in any state, and the system will return to the factory settings and save the parameters.
Warning: Please make sure to plug in the antenna before powering on, otherwise it may burn out this product!
Output power: 0-25-400-800-1500-2500mW
Input voltage: 6-36V
6-36V
Parameter adjustment mode: Double button/OSD
Operating current: less than or equal to 450mA@12V , 800mW
Less than or equal to 850mA@12V , 2500mW
Output frequency: 40CH (A-B-E-F-R)
Antenna interface: MMCX
Mounting hole: 30. 5*30.5mm
Video format: NTSC/PAL automatic detection
Weight: 12.5 g (without antenna and power cable)
Dimensions: 35.5*36.5*10mm
Funktioner
1. comes with self-testing function so you can quickly check whether image transfer is normal or not
2. frequency lock function, does not disturb the companion when the power is on
3.0-2.5W adjustable power so you can switch seamlessly between different environments
Instructions
Frequency setting: For every short press of the KEY-FR key, the frequency will progress between CH1 and CH8, cycle through and save.
Frequency band setting: Press and hold the KEY-FR key for more than 3 seconds, and the frequency setting will switch to the band setting state. The LED FR light will flash quickly. At this time, for every short press of the KEY-FR key, the frequency band will gradually and cyclically switch between A-B-E-F-R, and the LED FR light will flash 1-2-3-4-5 times. Press and hold the KEY-FR key again (>3 seconds and<10 seconds) or timeout (>10 seconds) without pressing the key. Exit this setting mode, and the system will automatically update the frequency band and frequency point parameter settings and save them.
Power settings:
For every short press of the KEY-PW key, the power level will progress from low to high and cycle through levels 1-2-3-4-5. The LED PW light will flash correspondingly 1-2-3-4-5 times, and the system will update the settings but not save the set parameters.
At any time, double-click the KEY-PW key (with an interval of less than 0.5 seconds), and the power setting will jump directly to level 5 (maximum power), with the LED PW light flashing 5 times.
To prevent high power from burning out the amplifier module, this product does not save user power settings and always starts from the first level (lowest level) when powered on.
Reset to factory settings: Press the LED_FR key for more than 10 seconds in any state, and the system will return to the factory settings and save the parameters.
Warning: Please make sure to plug in the antenna before powering on, otherwise it may burn out this product!
