Price:
$296

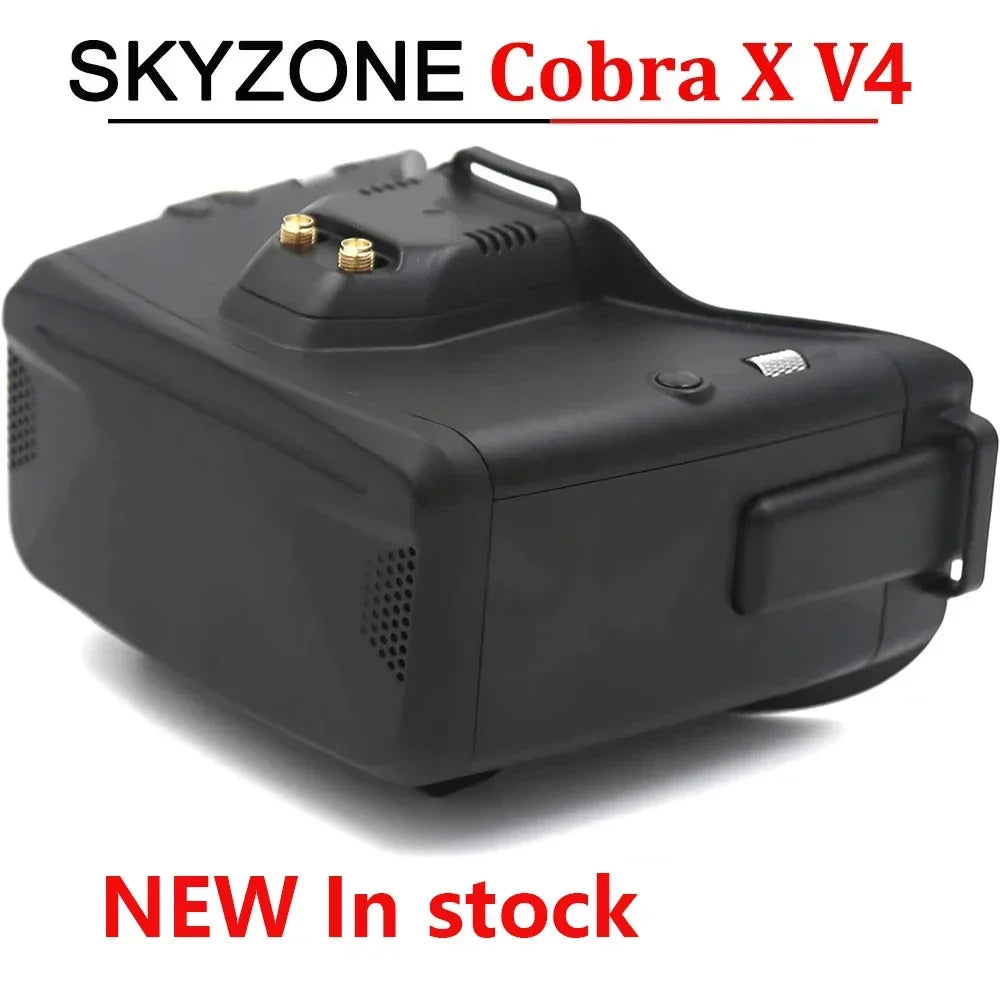

SKYZONE Cobra X V4 goggle is the best drone box FPV goggles and has 4:3/16:9 switchable FPV goggle with an LCD screen, the SKYZONE cobra x for RC airplane racing drone screen has vivid color and high luminance, and the pilot can see more details in the Racing. With SteadyView receiver, the SKYZONE cobra x v2 receiver merges two signals into one, avoiding image tearing and rolling when the signal is weak, and making the image more stable and clear in challenging conditions.



The goggle support pilot wears glass while flinging. With the new OS with 10 languages to set select, the pilot has no trouble with the menu system, and with the shuttle wheel and new user interface, the pilot can set all the settings just by rolling the wheel without taking off the goggle.



Specifications:

Model: Cobra X V4
Color: Black

Screen: LCD

Resolution:1280X720

FOV (Diagonal): 50°

AspectRatio:4:3/16:9

Receiver:5.8Ghz 48CH V3.3 SteadyView Receiver

Language:10 Language

Power Supply: 1 Cell 18650/DC 6.5-25.2V/USB 5V

Power Consumption:12V 0.63A 5V 1.5A

DVR: H264, 60fps,MOV 6Mbps, SD up to 128Gb

Head Tracker:3-axis Accelerometer,3-axis gyroscope

Dimentions: 122*165*100mm

Weight: 332g

Note:(the Package not included Battery)the goggles can power by 1 cell 1/8650 battery or 2~6s lipo battery, the USB charging and DC charging make goggle simple to use in the filed.

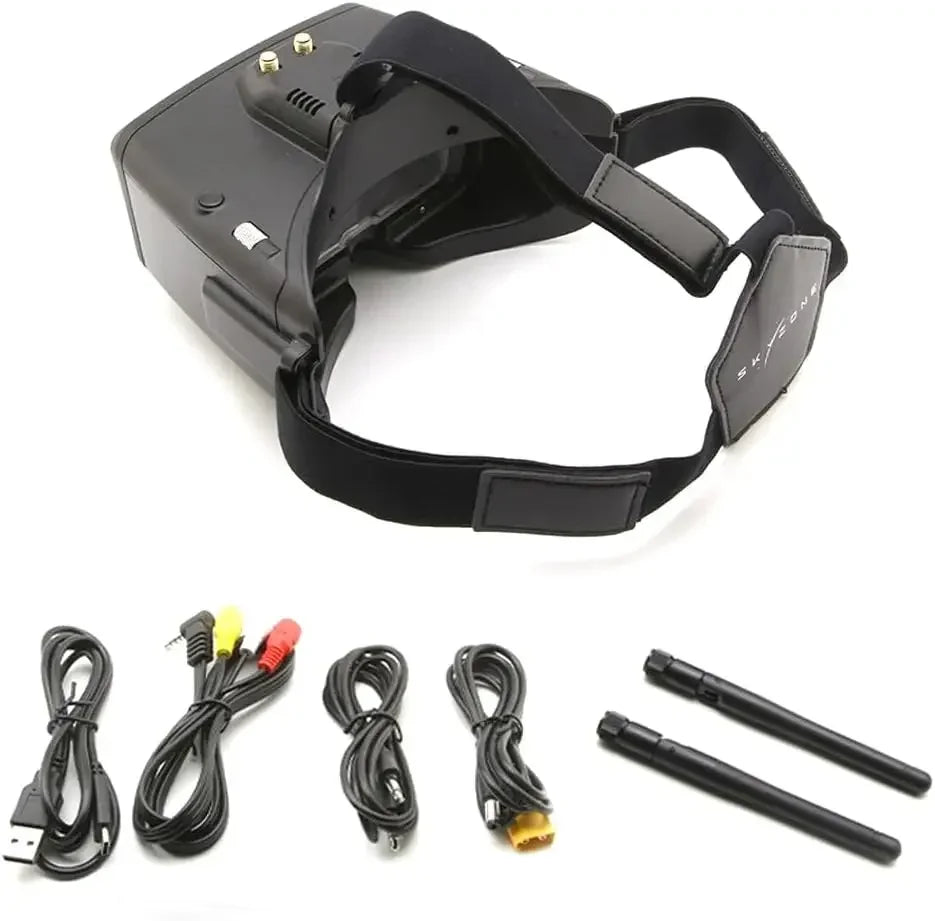

Package Included:

1x Cobra V4 FPV Goggles(Black)

1x Receiver V3.3 Module

1x Head Strap

1x Power Cable

1x Headtracker Cable

2x 5.8GHz 2dD Antennas

1x Video/Audio Cable

1x USB-C Cable

1x User Manual











Description:

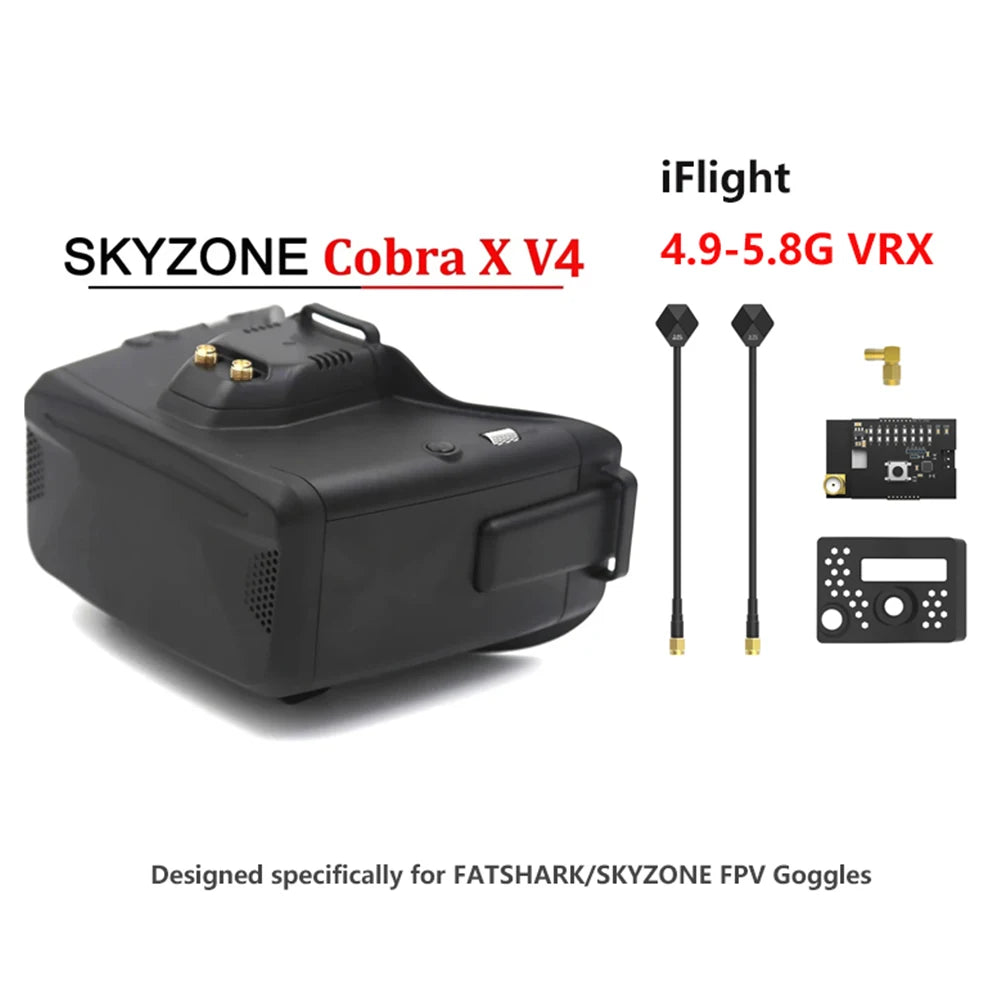

  • Introducing the cutting-edge 4.9-5.8G VRX Goggle Receiver Module designed specifically for FATSHARK/SKYZONE FPV Goggles.  Upgrade your FPV experience today!

Specifications

  • Receiving Frequency: 56CH (4990MHz to 5945MHz)

  • RX Sensitivity: -95dBm

  • Input: 5V/2.54 9 PIN socket, compatible with FATSHARK/SKYZONE FPV Goggles

  • Current Consumption: 0.3A @5V

  • Channel LED: 8LED

  • Band LED: 7LED

  • Video Format: NTSC/PLA

  • Video Output Impedance: 75Ω, Typ.

  • Audio Subcarrier Frequency: 6.5MHz & 6.0MHz

  • ANT. Input Impedance: 50Ω, Typ.

  • RF Connector: SMA

  • Button control: Short press to change frequency, Long press for 2 seconds to change frequency band

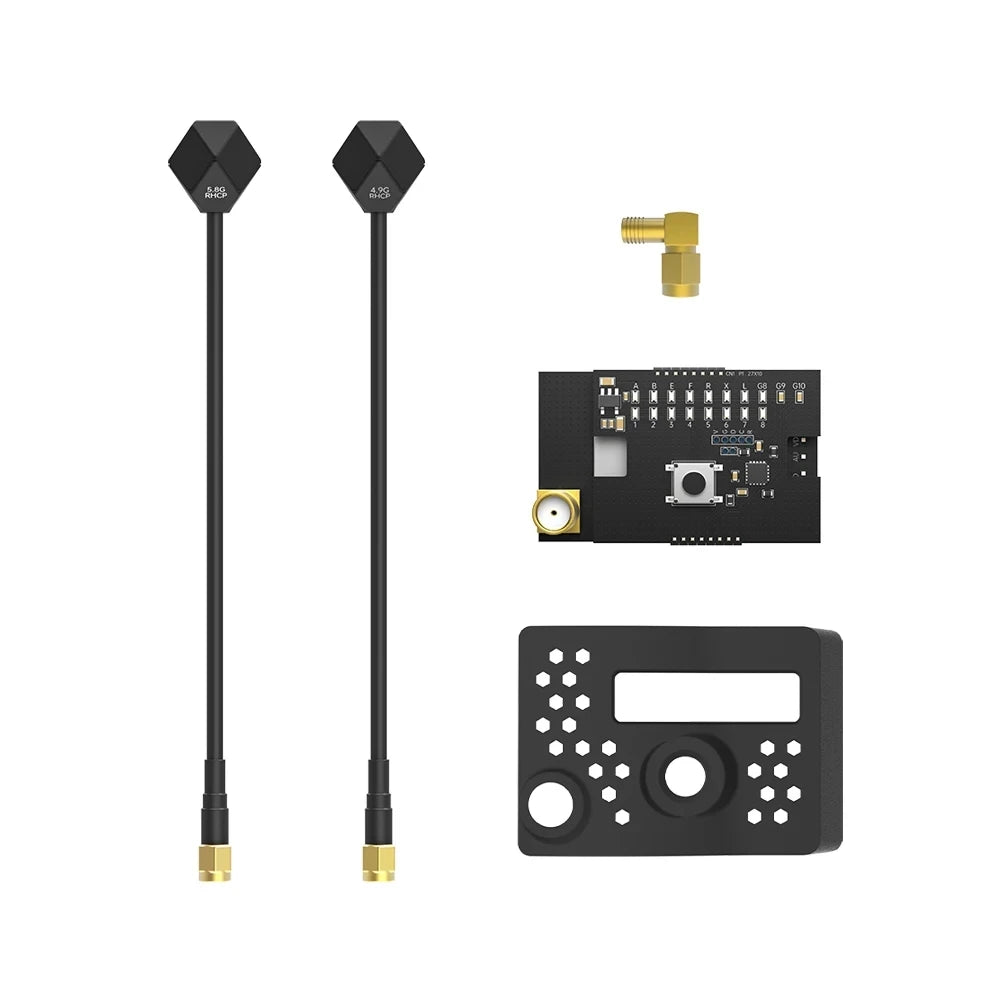

Packing List

  • 1 x iFlight 4.9-5.8G VRX

  • 1 x iFlight 4.9-5.8G VRX shell

  • 2 x 4.9G / 5.8G Albatross SMA Antennas

  • 1 x SMA Male to SMA Female Adapter
