SKYSTAES F7 HD FC &55A 4IN1 ESC BLHeli_32 MINI 20×20mm Stack 3-6S Baro Built-in OSD Support DJI RC FPV Racing Drone

filler

Price:
$122.68





SKYSTARS F722Mini HD Pro Flight Controller & KM55A ESC Description:



Specifications:



SKYSTARS F722 Mini HDpro 20X20 Flight Controller

•  MCU:  STM32F722RGT6 216MHz

• IMU: BMI270 (SPI)

• OSD: Betaflight OSD &  DJI HD OSD (UART6)

• 6 hardware UARTS (UART1,2,3,4,5,6)

• Barometer: YES

• Buzzer Pad: YES

• 5V 2A & 10V 2A

• Input Voltage: 3-6S Lipo

• Blackbox: 16MB

• Firmware: SKYSTARS F7HDPro

• Dimensions: 35x28x7mm

• Mounting Holes: Standard 20mm/M3 square to center of holes

• Weight: 4.8g



Skystars KM55A 32Bit 3-6S 20x20 4in1 ESC



Input voltage: 3-6S LiPo

Con.Current: 55A

Peak Current: 70A≥ 10S

Firmware: BLHeli_32

Support: Dshot 600/1200

Mounting hole : 20X20 mm/M3

BEC: No

Product size: 35*47*6.5mm

Weight: 16.5g



Package Included:

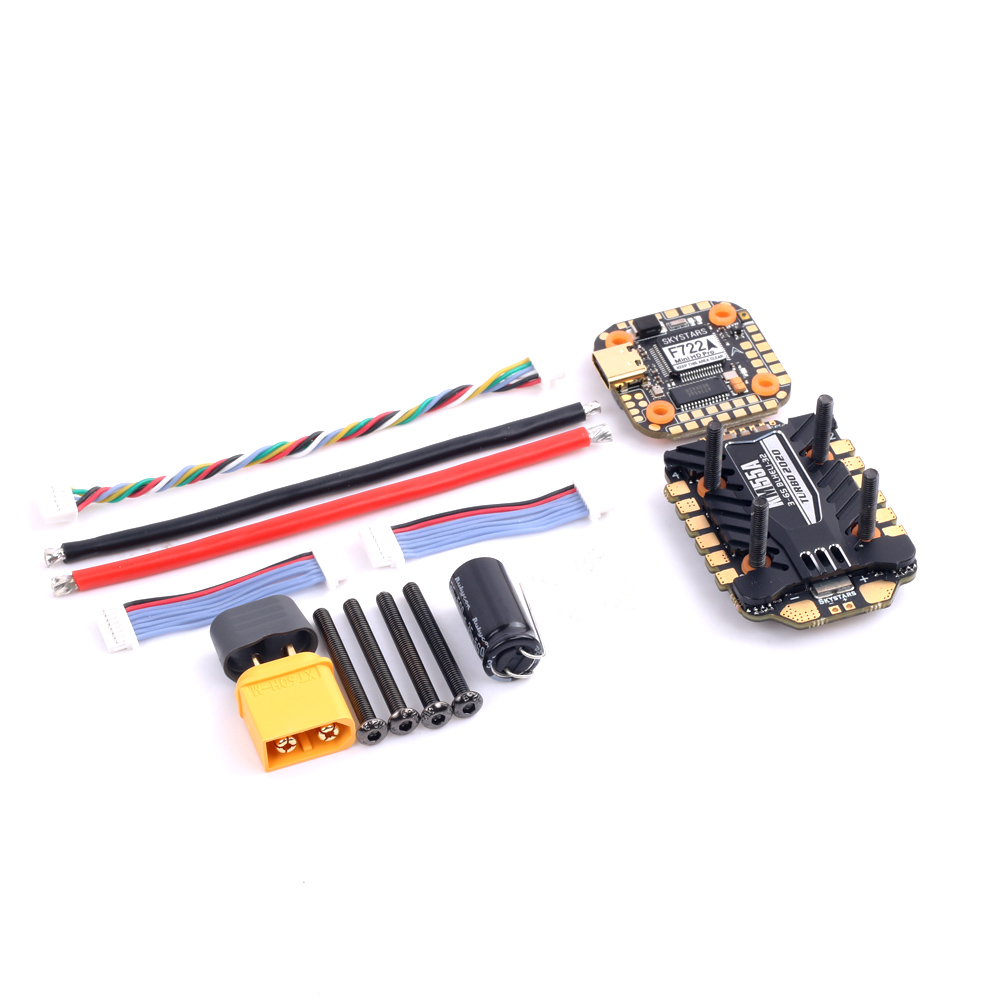

1 x SKYSTARS F722 MiniHD Pro 20x20 Flight Controller

1 x SKYSTARS KM55A 32Bit 3-6S 20x20 4in1 ESC
