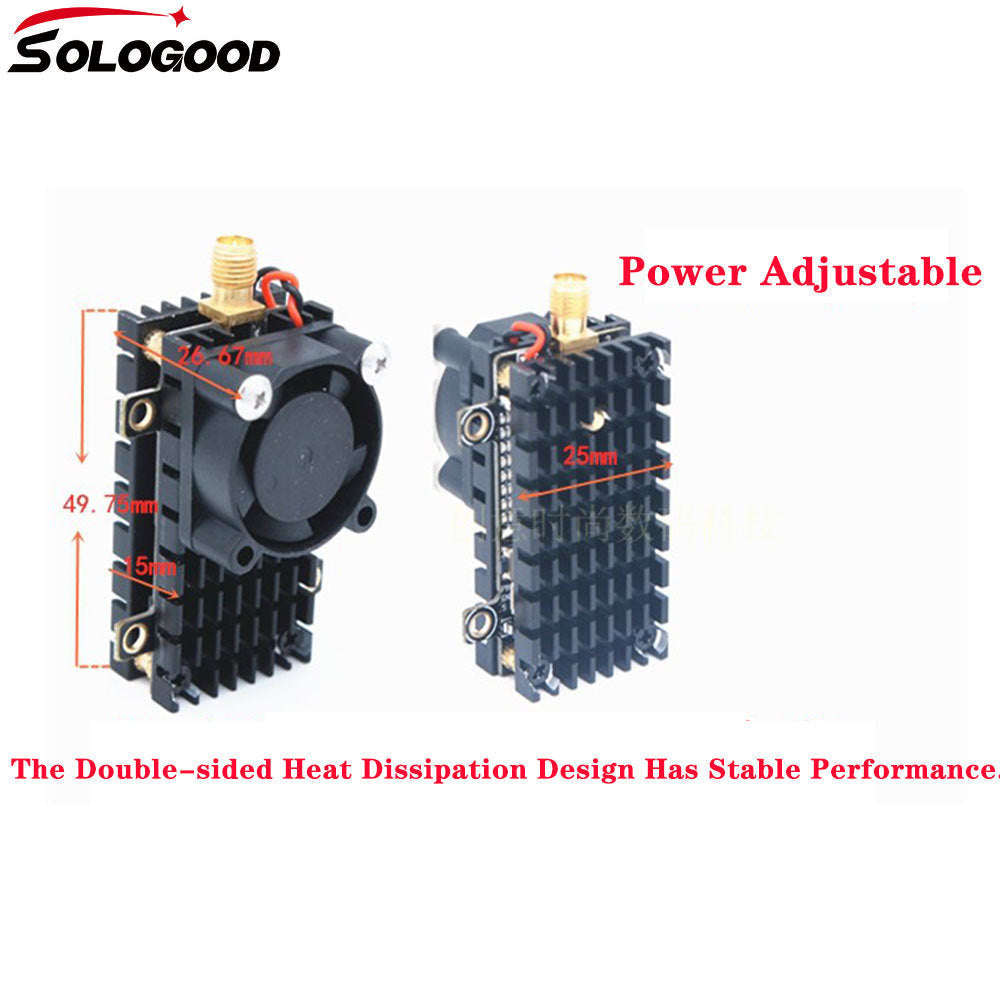

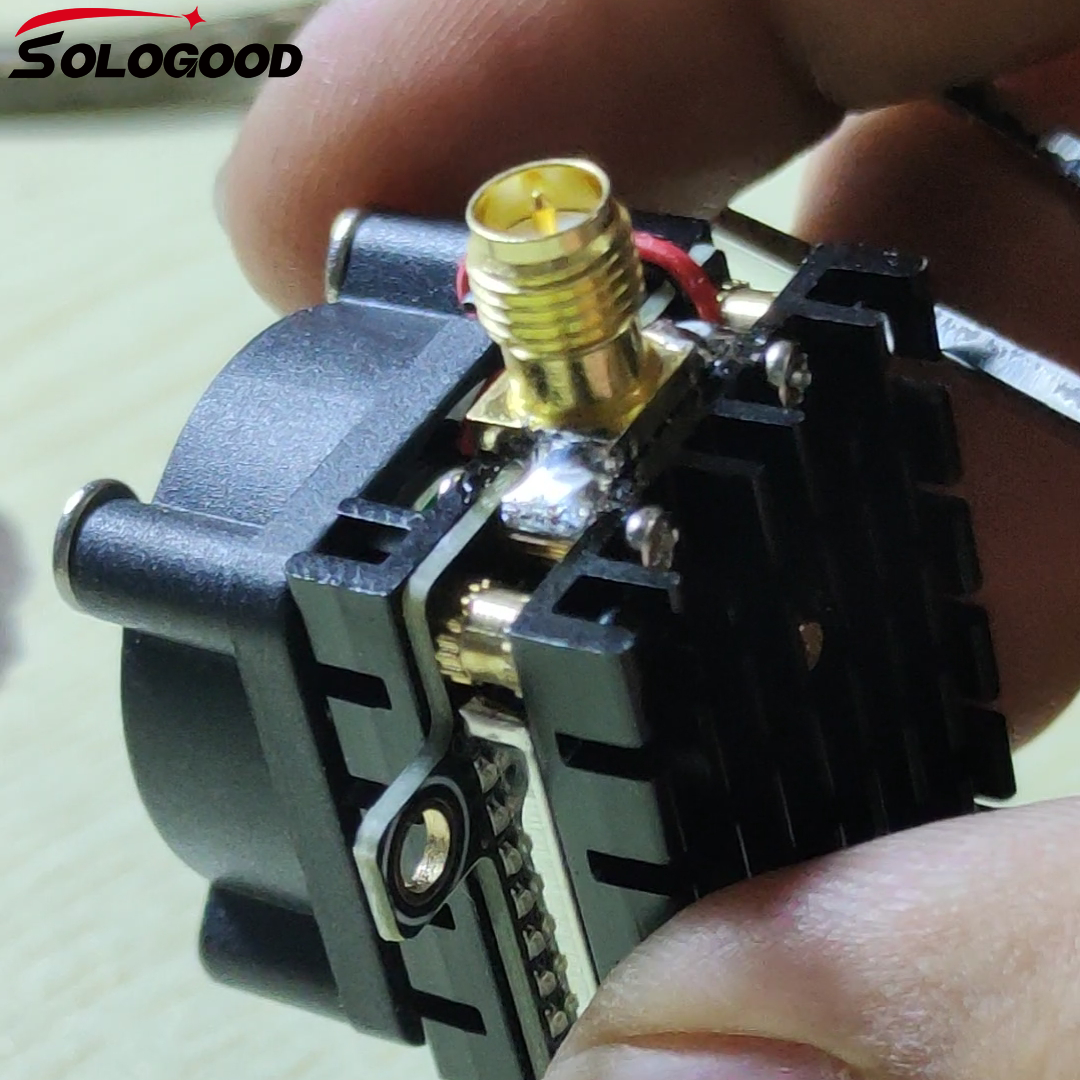

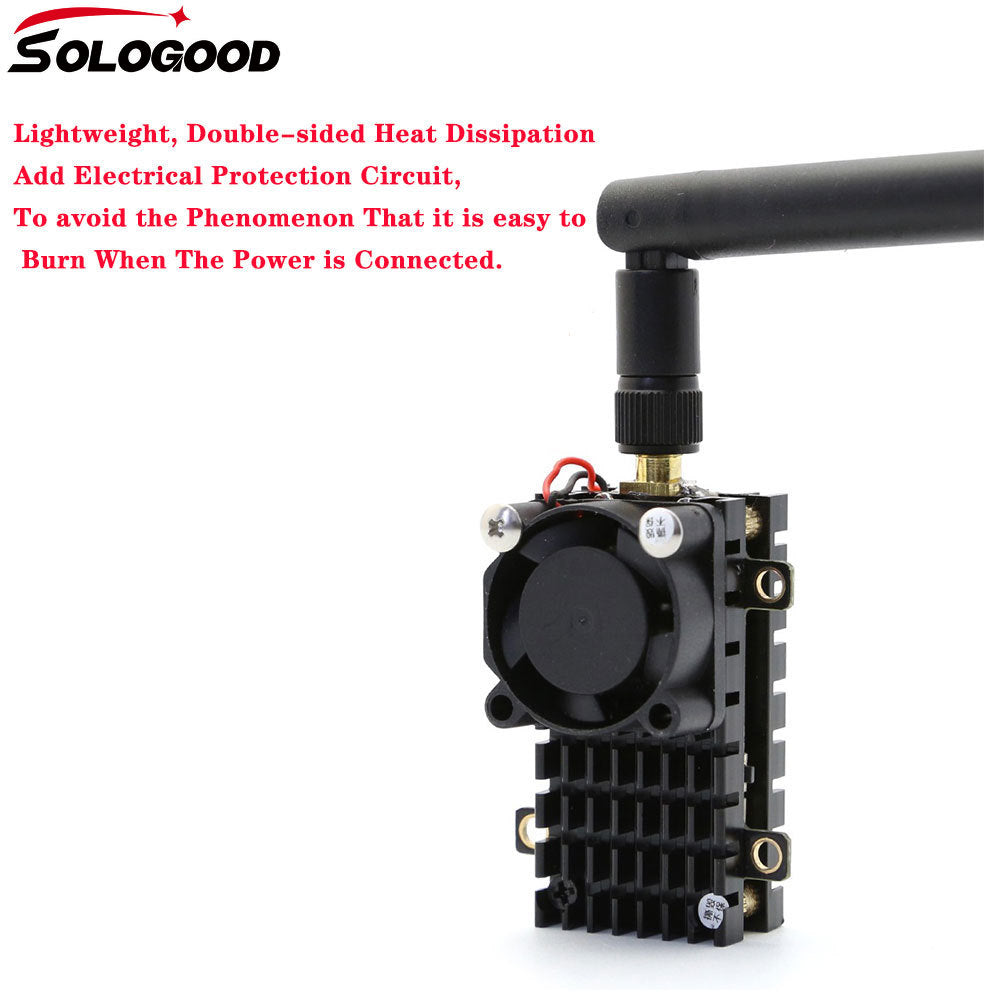

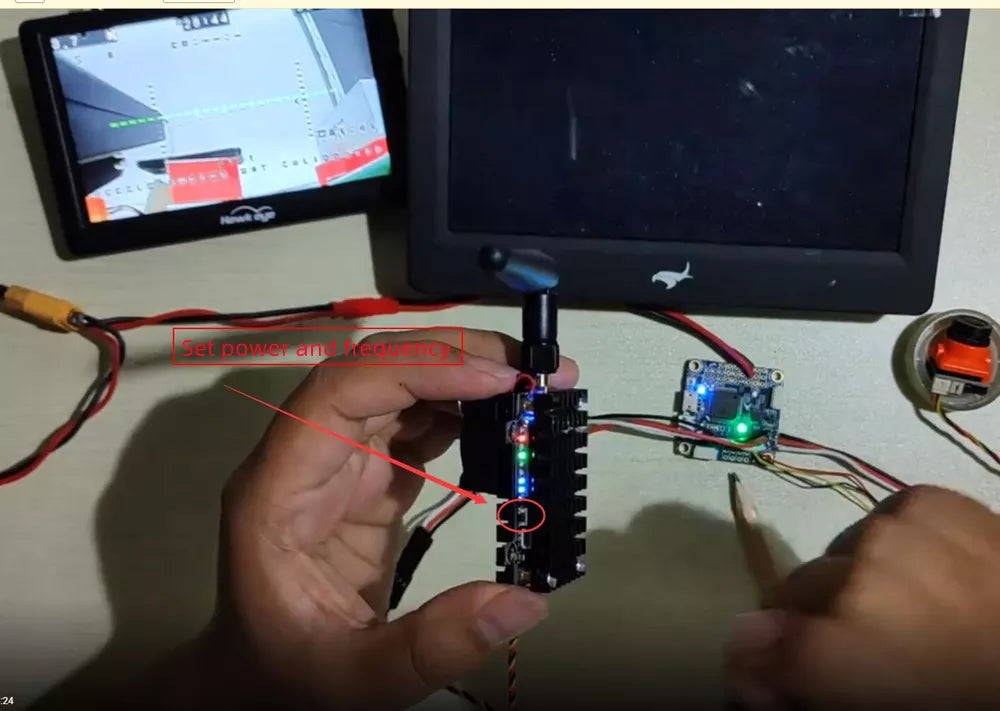

Over 20Km Range 5.8Ghz 2W FPV Wireless Transmitter TS582000 5.8G 2000MW 8CH Video AV Audio Sender
Transmission Characteristics

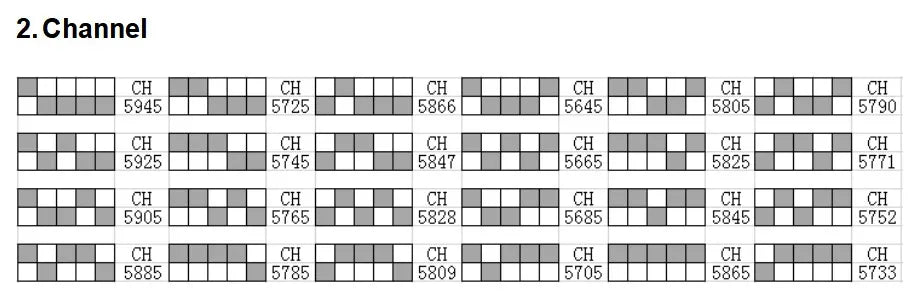

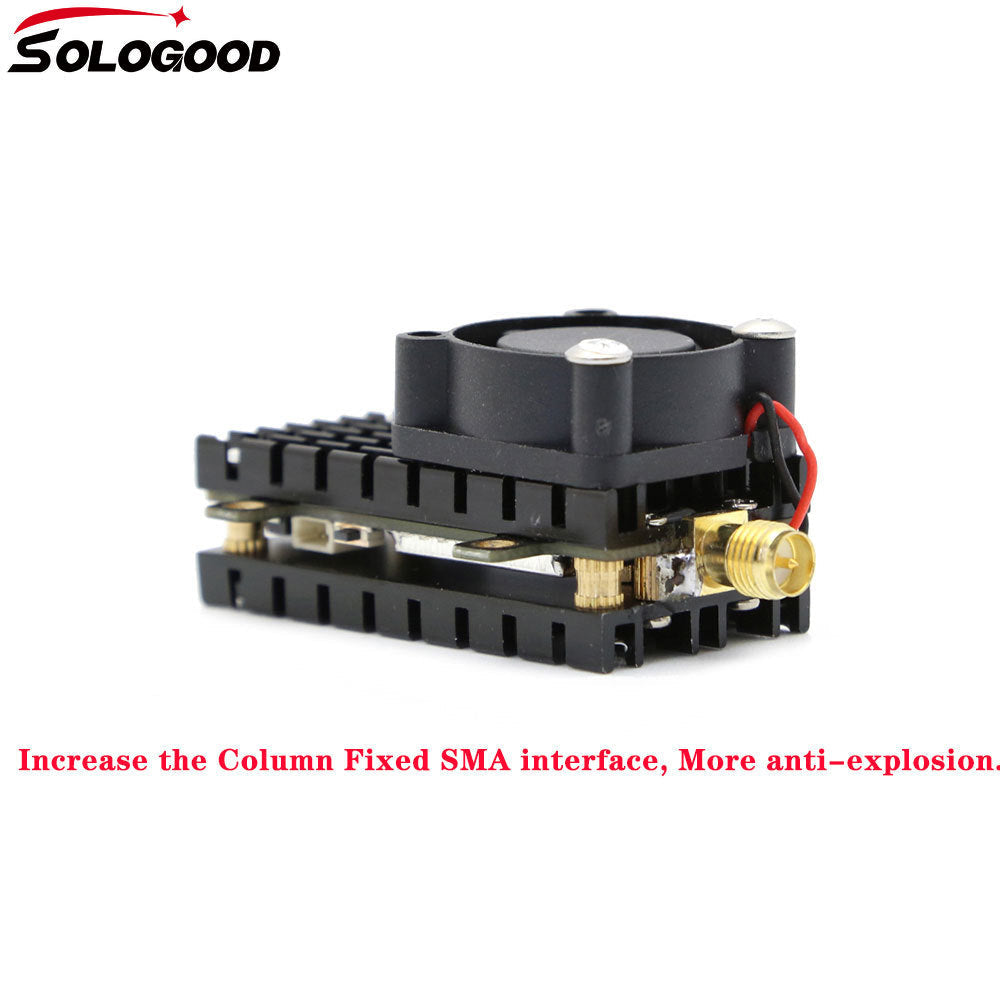

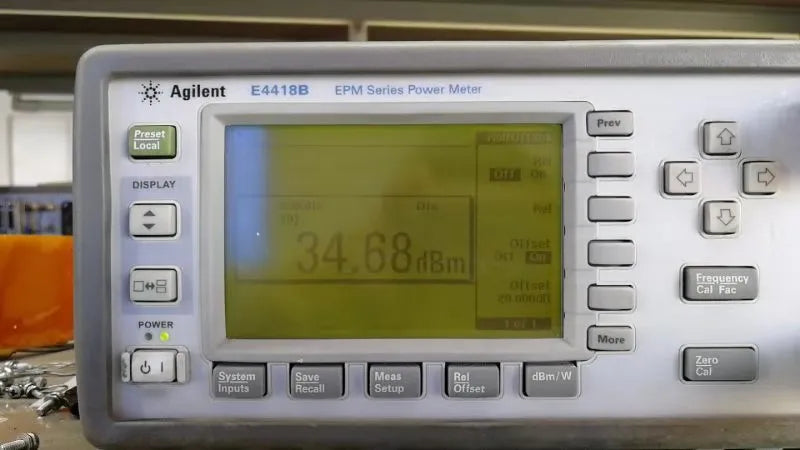

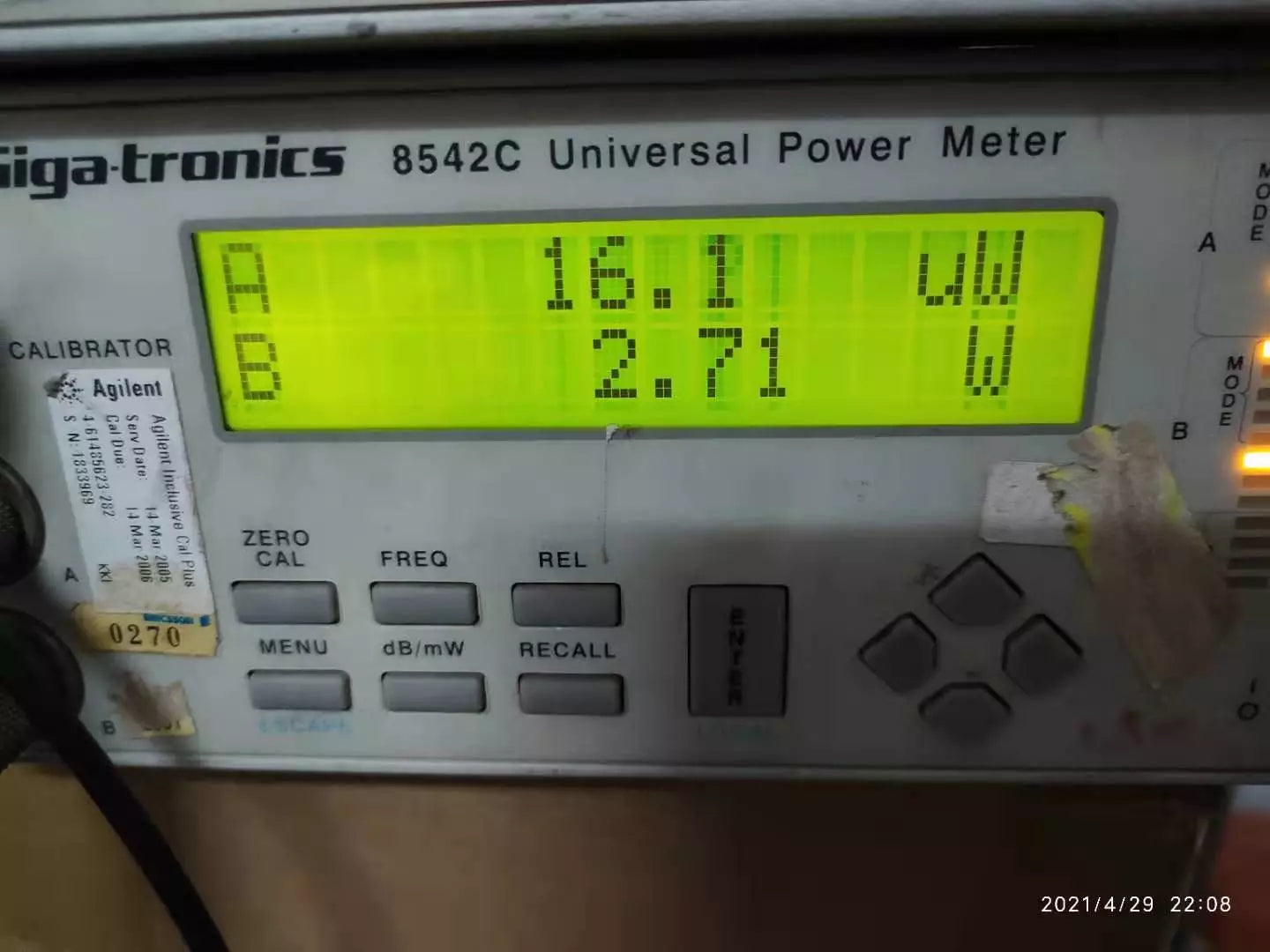

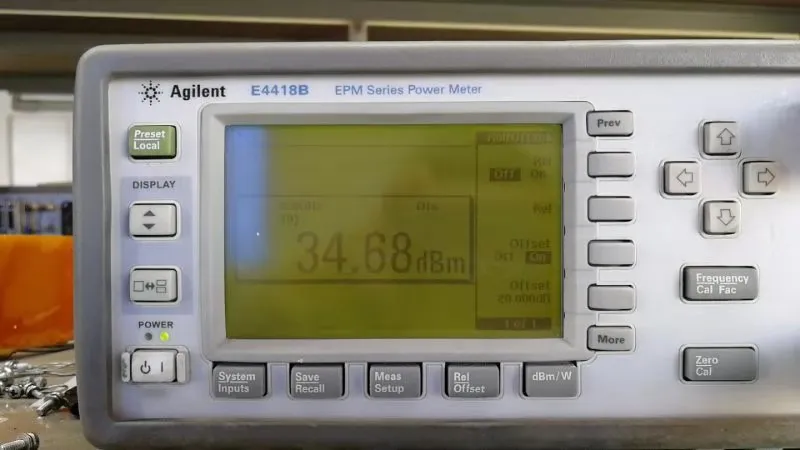

Output Power:2000mW Operating Voltage:8V-25V(2S-6S) Operating Current:800mA(12V testing) Channel :24CH Video Format:NTSC/PAL Output Voltage:5V/Input Voltage(Jumper cap selection) Antenna Interface:SMA(External thread internal pin) Weight:30g
Output Voltage
Two output voltages, It can supply power to 5V and wide voltage cameras, Select the output voltage through a three-point jumper pad, and check the wiring scheme drawing for operation details. 1.The jumper pad is short circuited to the two points on the right, and the output is 5V at this time. 2.The jumper pad is short circuited to the left two points, and the input voltage of the power supply is output at this time.

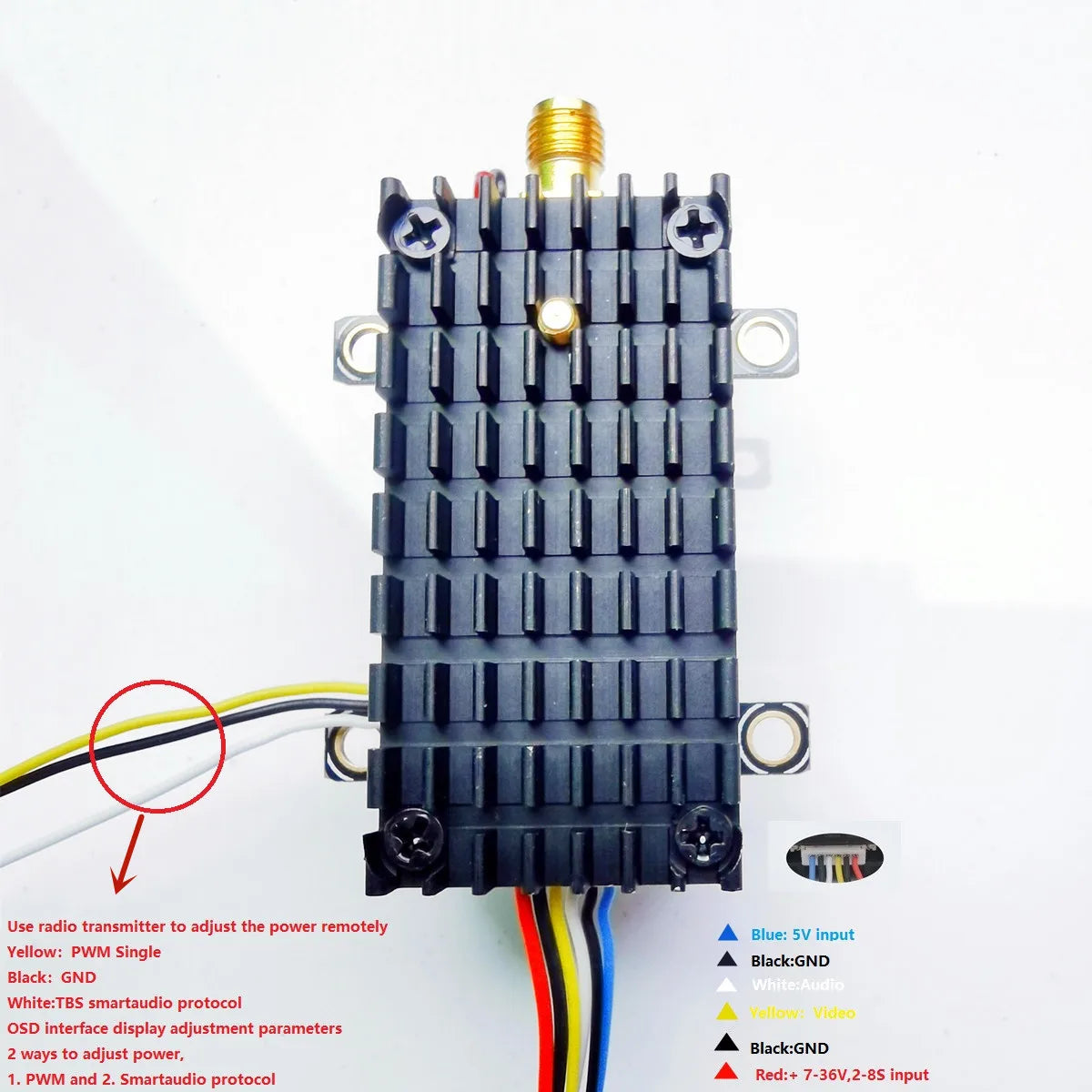

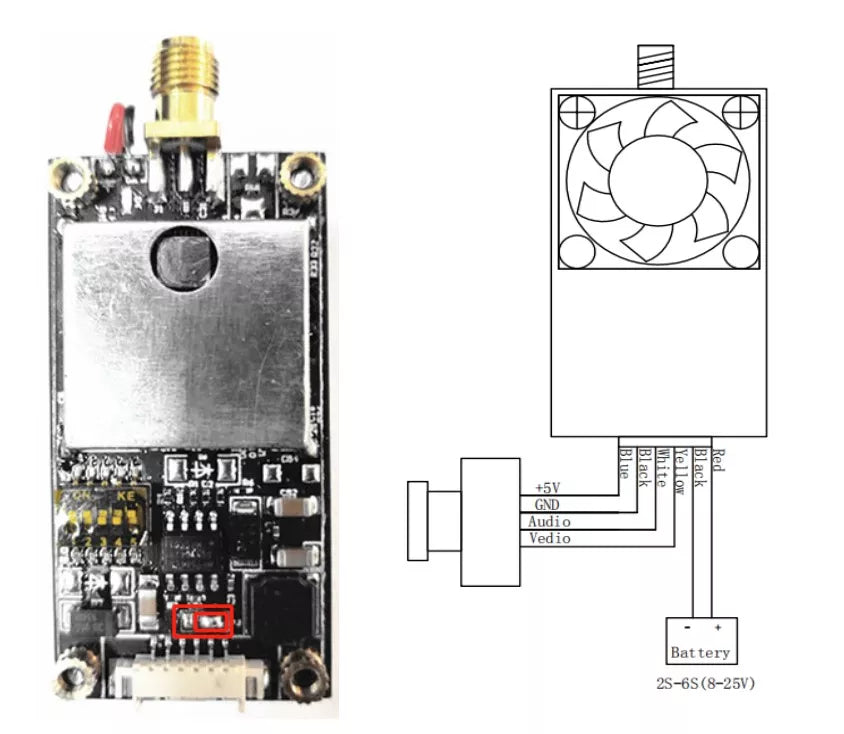

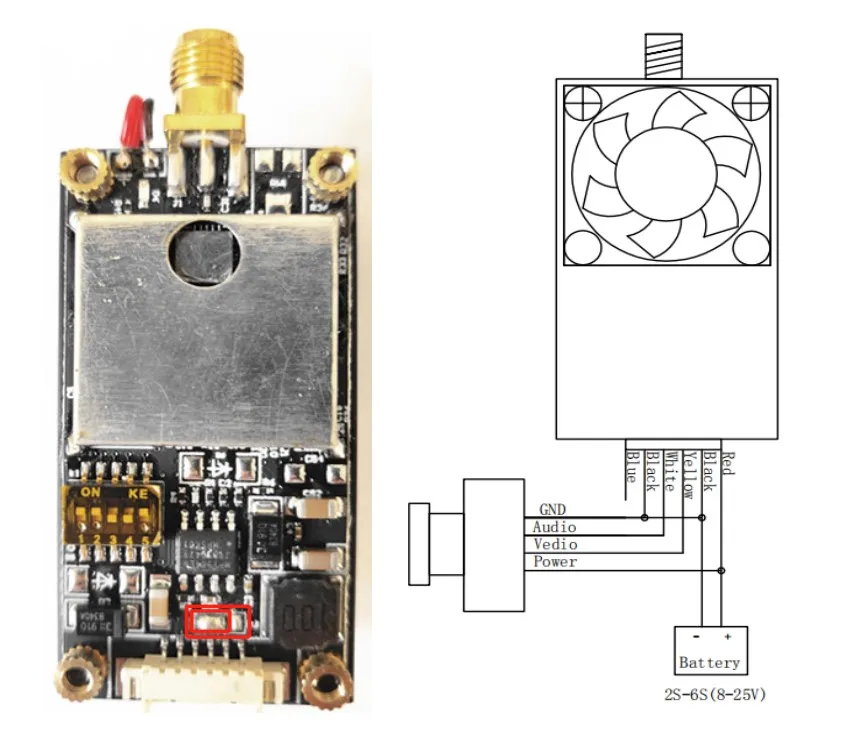

Three schemes of actual wiring diagram
Wiring scheme 1: It is suitable for micro camera with voltage of 3.3-5v and current less than 100mA. If there is no condition to verify that the camera meets the above voltage and current conditions, this wiring method is prohibited, otherwise there is a great risk of damaging the transmitter.
Wiring scheme 2: It is suitable for 5-25v wide voltage camera, and this scheme is universal.
Wiring scheme 3: It is suitable for the camera of scheme 2 which cannot be used when the voltage is low and scheme 1 cannot be used when the current is high, for example, a moving camera. This wiring scheme is universal and basically applicable to all cameras. The disadvantage is that the wiring is a little more complicated.
