Matek System 2812ARM 10 Light LED with Motor Wire & Matek 2812LED Controller 2-6S LED Control Module For FPV

Matek System 2812ARM 10 Light LED with Motor Wire & Matek 2812LED Controller 2-6S LED Control Module For FPV

Matek LED Control Module

Specification:
Brand Name: Matek
Model: 2812LED
Item Name: LED Control Module for WS2812 Led Strip
Input Voltage: 2-6S ( 6-30V)
BEC: 5V @ 2.5A
- 7x Colors
- 7x Blinking styles
- 4x Channels
- Max. 48xLED Supported
Size: 36x13mm
Mounting Hole: 30.5mm Φ 3mm
Weight: 2.5g

Matek 2812ARM LIGHT 10LED W/ MOTOR WIRE
Features:
40x10mm 2oz/4layer PCB with 10x addressable LED & Motor wire built in
8x SideView LED and 2x Topview LED
Compatible with 2812-Ctrl, 2812ARM-4, 2812ARM-6
LED Specifications (40x LED)
Input: 5V
White: 9W, 1.8A
Green/Red/Blue: 3W, 0.6A
Yellow/Cyan/Magenta: 6W, 1.2A
Packing
4x LED strips 2812ARM-10
4x Silicon cables SH1.0-3P-8cm
Tips
Double check DIN/DO orientation before soldering and wiring
Isolation between the carbon frame and the PCB is required

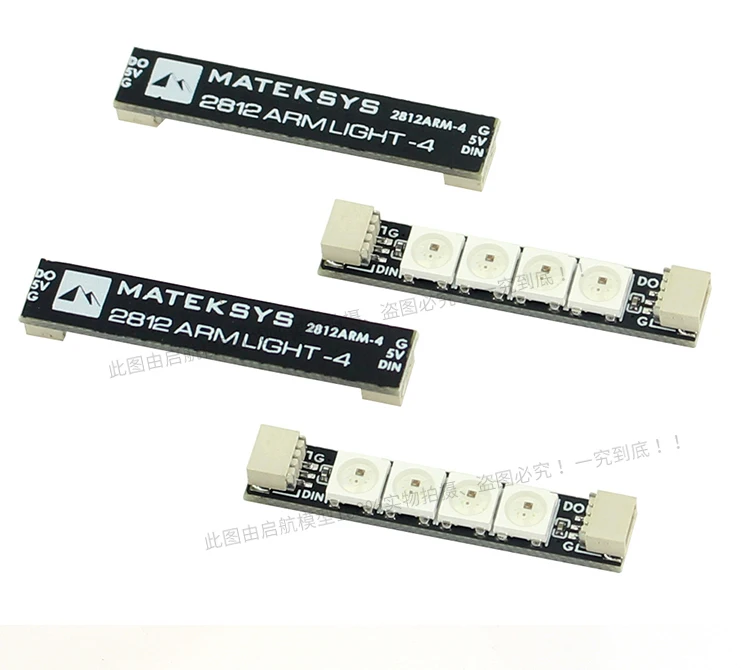

Matek System 2812ARM-4
Specification:
Brand Name: Matek System
Model: 2812ARM-4
Item Name: 5V WS2812 LED Strip RC Night Light w/ 4 Lamps
Quantity: 4 PC
LED Lamp: 4xWS2812
Working Voltage: 5V
Size: 46x6.5
Weight: 1.5g/PC

only 2812LED Control：
Package Included:
1 x Matek 2812LED Controller Module

1 set 2812ARM-4 LED：
Package Included:
4 x Matek 2812ARM-4 LED Strip
2 x 3P SH1.0 Cable (4 cm )
2 x 3P SH1.0 Cable (8 cm )

1 set 2812ARM-6 LED：
Package Included:
4 x Matek 2812ARM-6 LED Strip
2 x 3P SH1.0 Cable (4 cm )
2 x 3P SH1.0 Cable (8 cm )
