Matek ASPD-DLVR DIGITAL AIRSPEED SENSOR for RC FPV Racing Freestyle Airplane Drone F765-Wing Fix-Wing Flight Controller
Specifications & Features
ArduPilot AP_Periph F303 CAN node
All sensors DLVR-L10D, Industrial temperature range

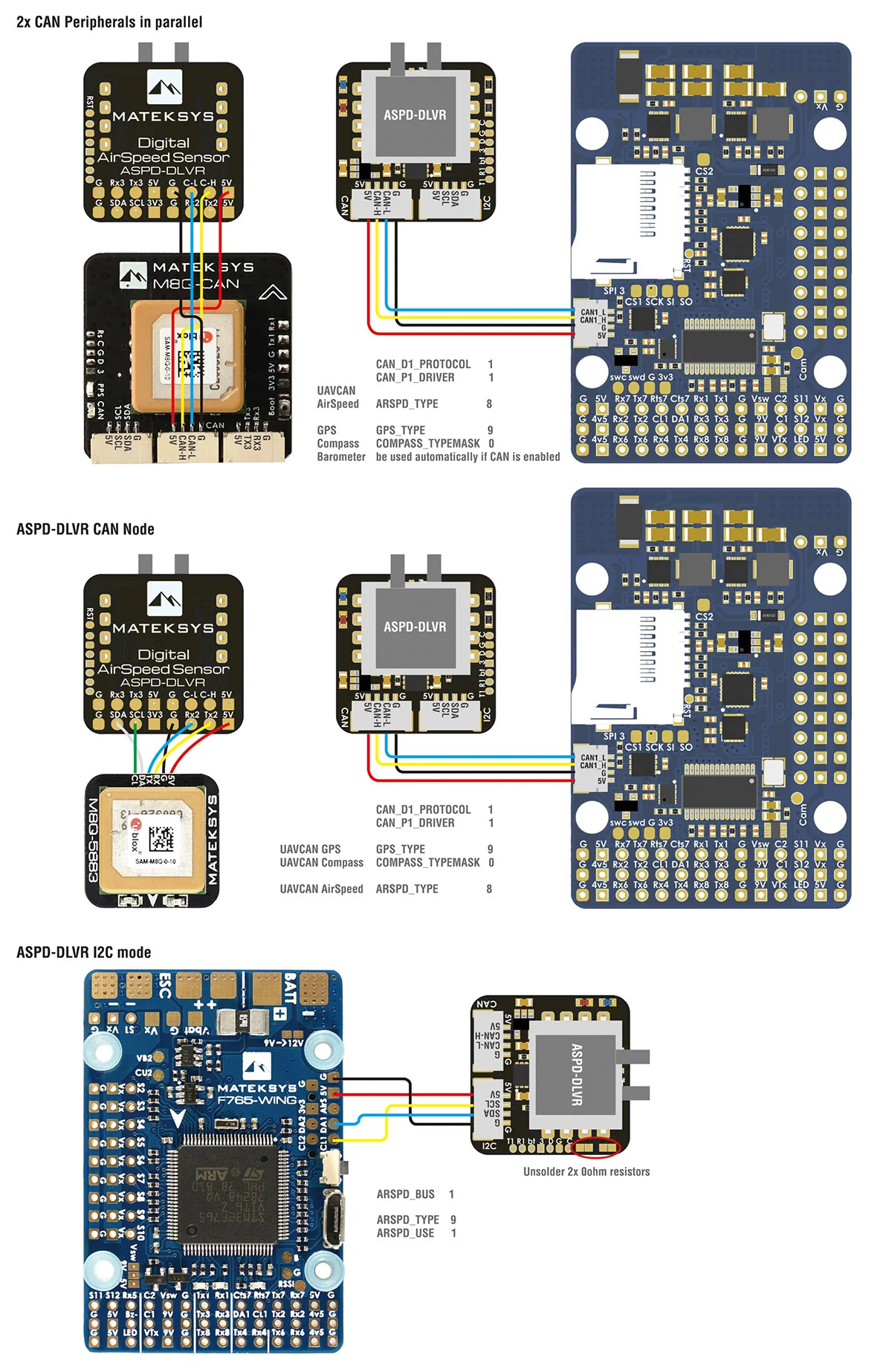

CAN & I2C Interface
Typical Platforms: Fixed-Wing, QuadPlane, VTOL
CAN JST-GH connector, UAVCAN Protocol

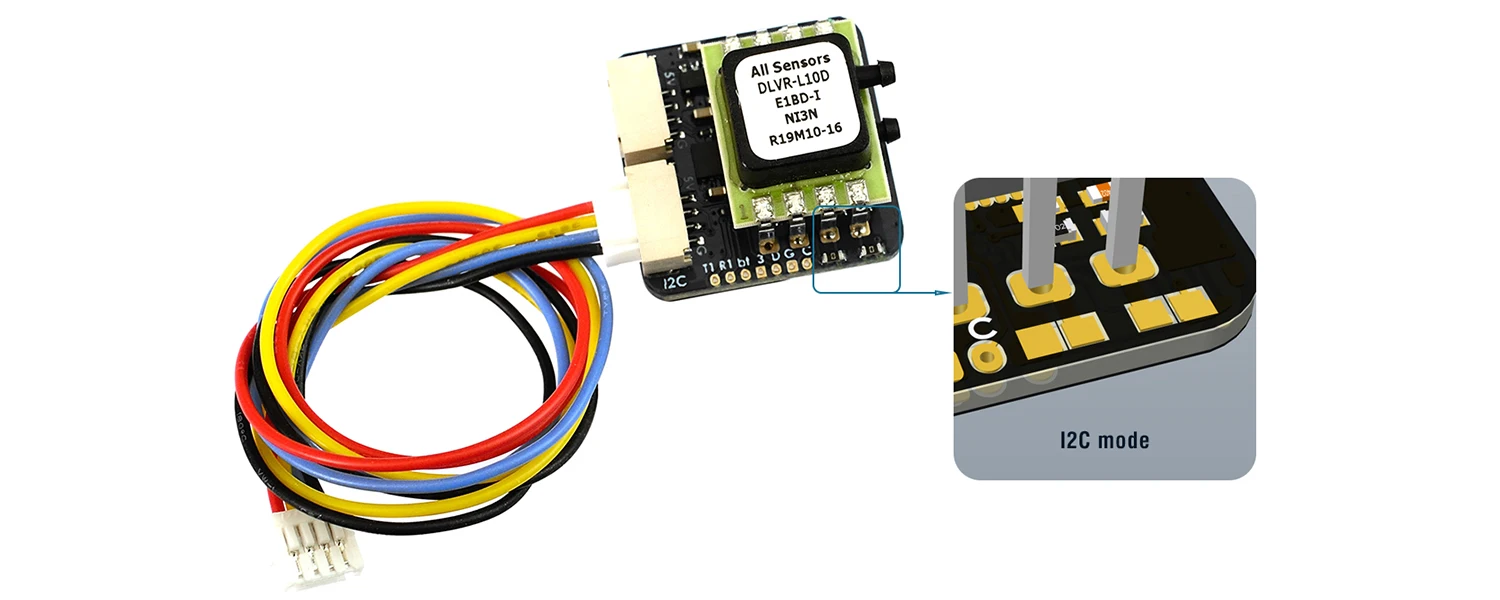

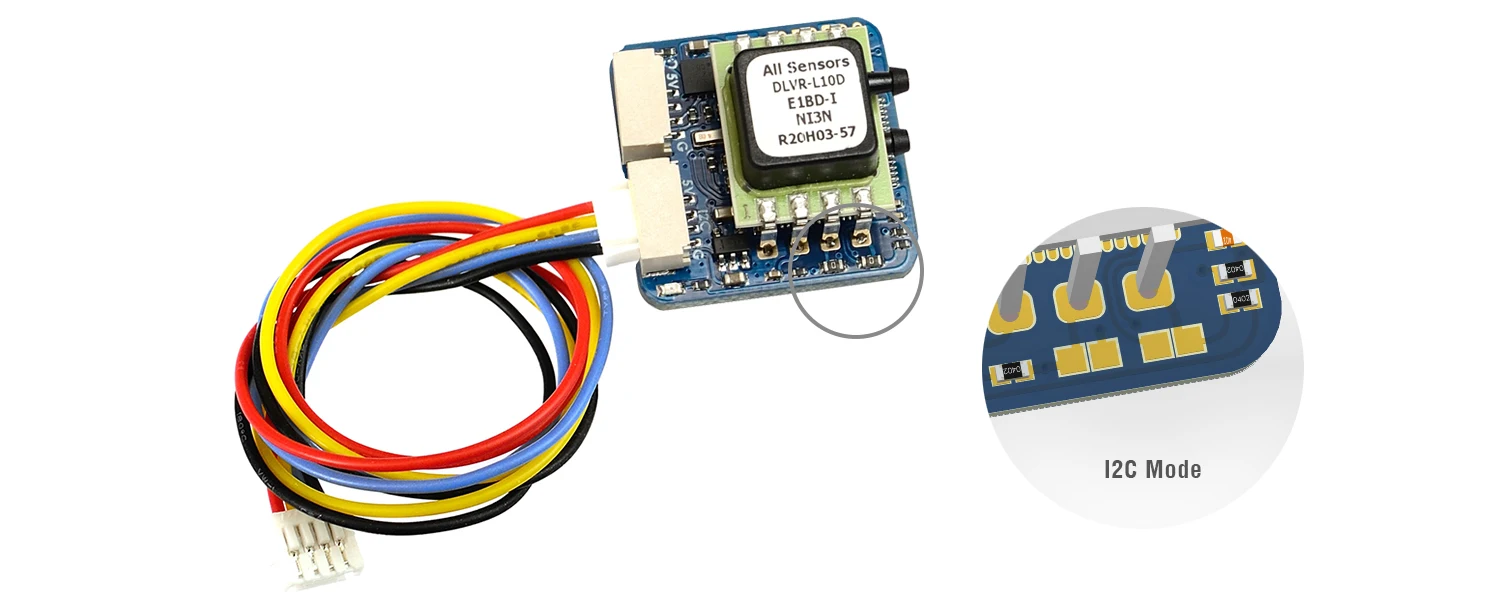

I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
F303 ver. (Black PCB)

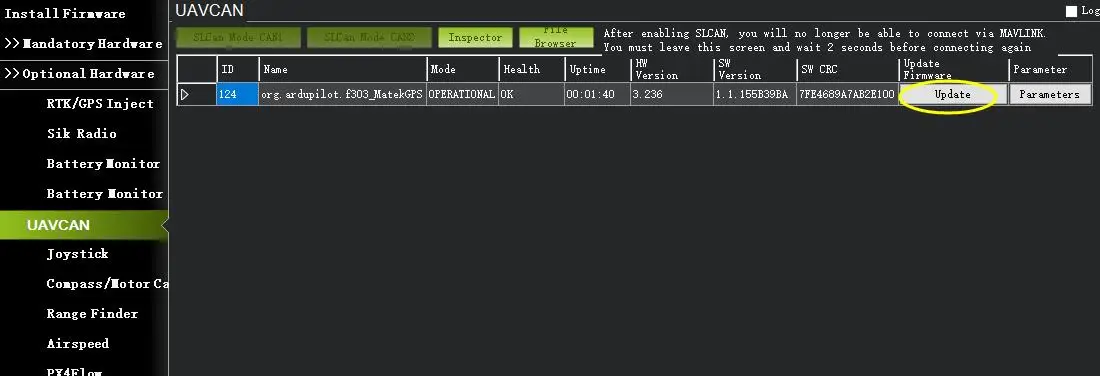

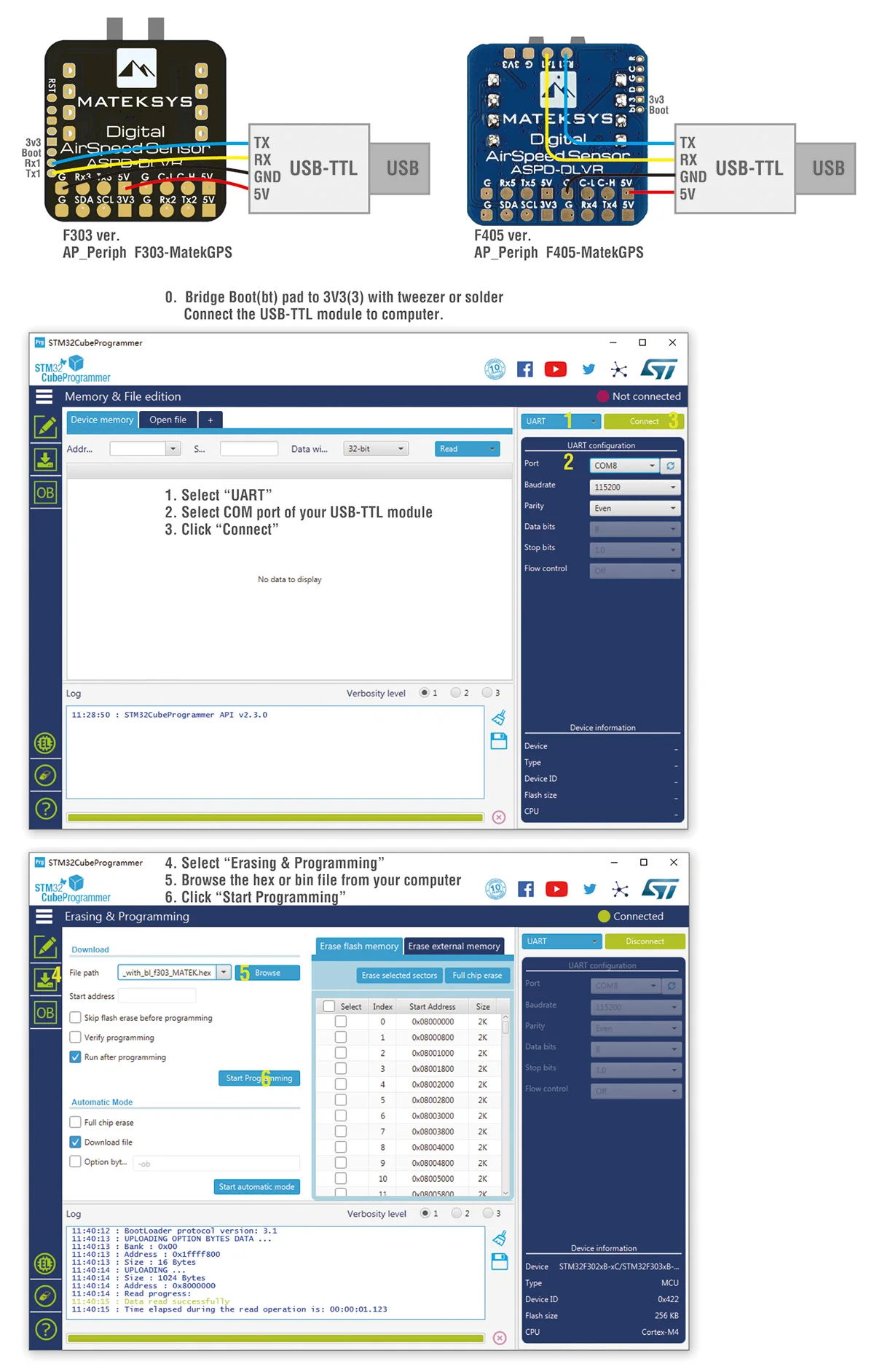

UART1, Firmware update
UART2, Spare for external GPS
UART3, MSP Protocol (To be supported)
Fast blinking, AP_Periph bootloader
Slow blinking, CAN Node ready
3.3V Power LED, Red
Input voltage range: 4.5~5.5V
Power consumption: 60mA
Operating Temperatures: -20°C to 85°C
Pressure Range: 2500Pa (± 10 inH2O)
Burst Pressure: 75kPa
Speed Range: ±250 km/h

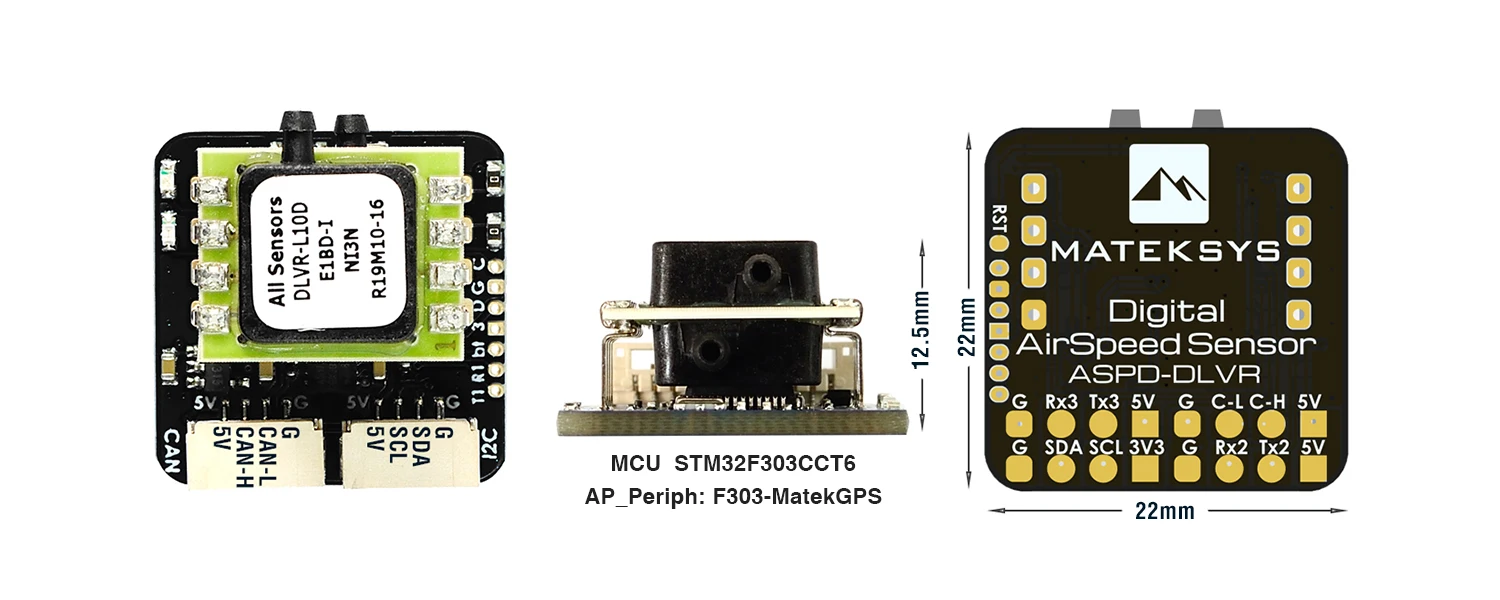

22mm*22mm*12.5mm

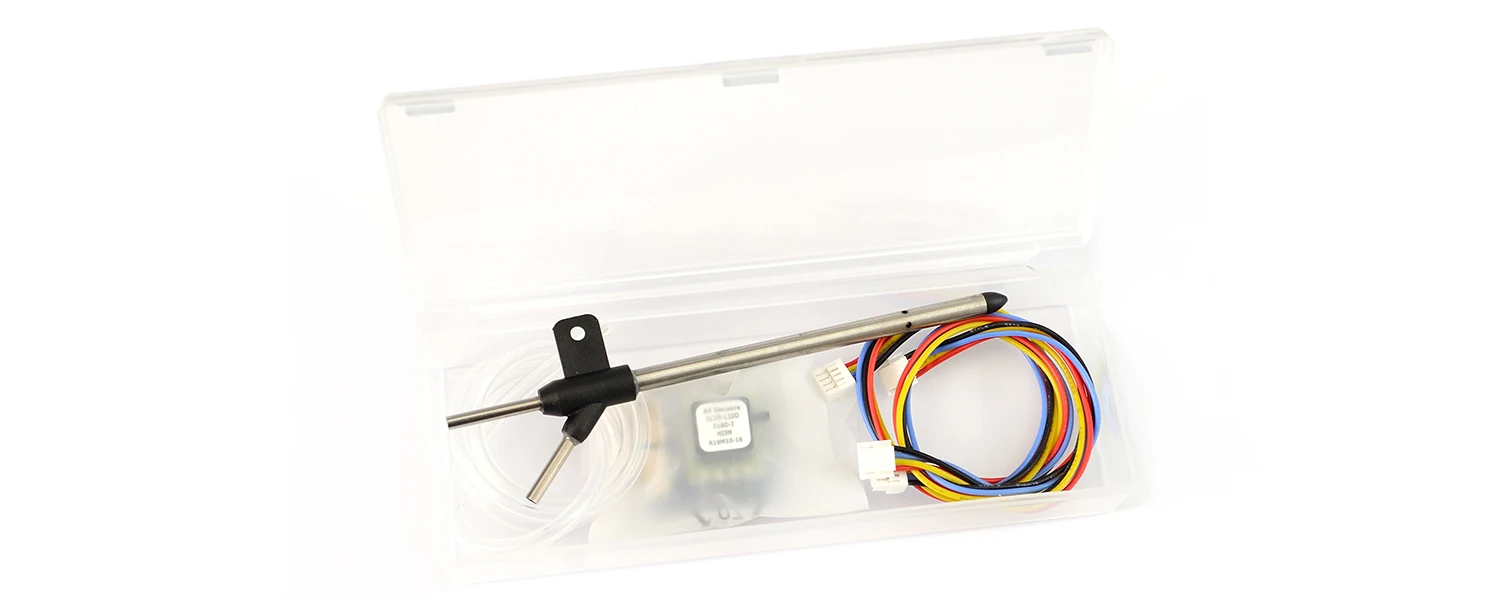

Includes
1x ASPD-DLVR
2x JST-GH-4P to JST-GH-4P 20cm silicon wire

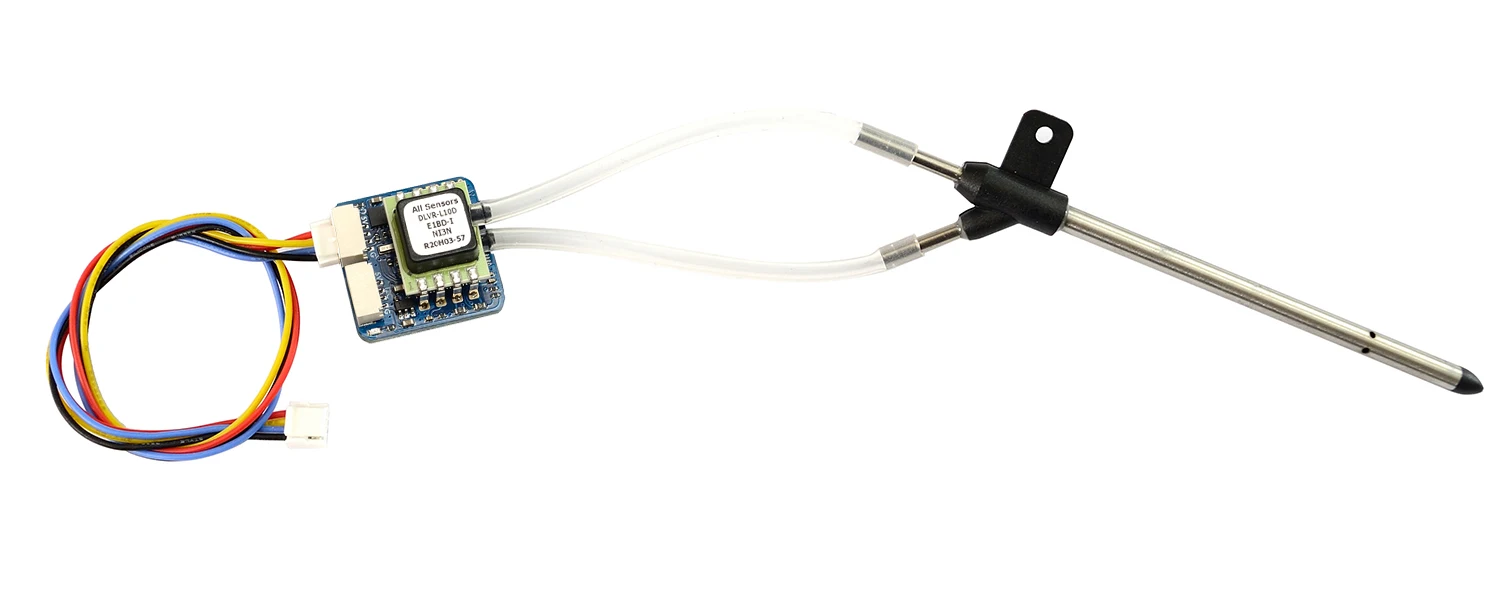

Pitot Tube
Clear silicon tubing 40cm
