HolyBro X500 V2 Frame Kit 500mm Wheelbase Carbon Fiber Frame Kit 2216 KV880 Motor 20A ESC 1045 Propeller XT30 XT60 PDB Combo

filler

Color: X500 V2 Frame Kit
Price:
$125.44


HolyBro X500 V2 Kit

Feature:
Almost Ready-to-Fly (ARF) Kit with new design and minimal assembly time (~15 minutes)
Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation
Pre-installed motors & ESCs with simple XT30 power plugs for PDB
Power distribution board (PDB) with XT60 & XT30 plugs - no soldering needed
Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
Optional depth camera mount for Intel RealSense & Structure Core


Product Description:
The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.

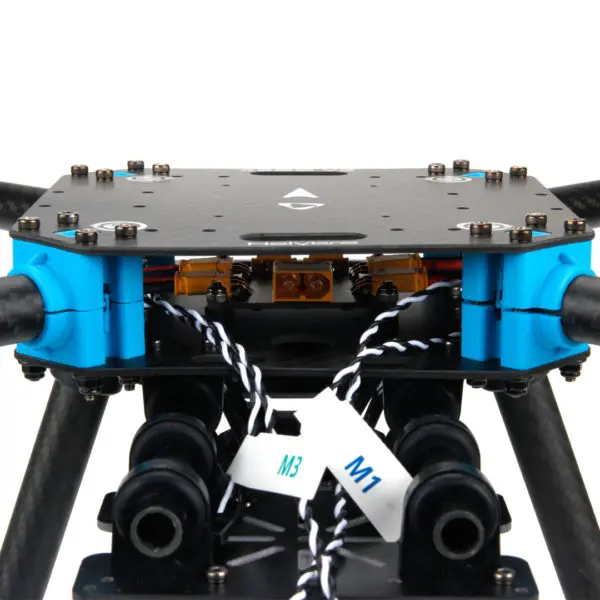

This frame is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.

The spacing between top and bottom carbon fiber plates has been increased to provide an easier access. The platform board now has mounting holes for GPS & popular companion computers such as the Raspberry Pi 4 & Jetson Nano. The adjustable battery mounting board has been enlarged to support bigger batteries for longer flight time. The rail mounting system is ready to take a whole host of camera mounts and gimbals for various applications. There is an optional mount for various depth cameras such as the Intel RealSense series & Structure Core Depth Cameras (purchase separately). All tools for installation provided in box.


Kit Contents

X500 V2 ARF Kit (SKU30125):
X500 V2 Frame Kit
With Preinstalled Items:
Motors – Holybro 2216 KV920 Motor (4 pcs)
ESCs – BLHeli S ESC 20A (4 pcs)
1045 Propellers (6 pcs)
Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals


X500 V2 Frame Kit (SKU30120):
Body – Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
Arm – High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
Landing gear – 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Platform board – With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm Ø rod x 250 mm long rail mounting system
Battery mount with two Battery Straps
Hand tools for installation


Mechanical Specification:
Wheelbase: 500mm
Motor mount pattern: 16x16mm
Frame Body: 144x144mm, 2mm thick
Landing gear height: 215mm
Space between top and bottom plates: 28mm
Weight: 610g

Recommendation Combination
(Not Included):
Flight Controller - Pixhawk 5x, Pixhawk 4, Pixhawk 4 Mini, Durandal, Pix32 v5
Power Module - PM02D, PM02 V3
GPS - Holybro M8N/M9N GPS, H-RTK M8P/F9P Rover Lite & Helical
Battery - 4S 2000-5000mAh Lipo
