HGLRC Zeus F722 /F722 mini Gyro 3-6S Flight Controller STM32F745 for DIY FPV Racing Drone Quadcopter

HGLRC Zeus F722 2-6S Flight Control

Suitable wheelbase: 100mm-450mm through the rack
Flight control firmware: BF HGLRCF722 (HGLR)
Mounting hole: 30X30mm.M3

Product name: Zeus F722 flight control
Built-in LED controller
MPU: MPU6000
UART port: 5
CPU: STM32F722 RET6
OSD: Support
LED: Support flight control/button control
Black box: 16M
Barometer: BMP280 (I2C)
Input voltage: 3-6S Lipo
BEC: 9V2A
5V/3A
Size: 37.3x37.3mm
Mounting hole: 30X30mm.M3
Weight: 8.1 grams

Product feature introduction:
1. Integrated LED controller, you can quickly program the LED by pressing the button.
2. Integrated barometer and 16M black box.
3. Maximum support for BEC 9V2A and BEC 5V3A output.
4. FrSky XM+, TBS NANO receiver and TBS NANO image transmission can be directly welded.

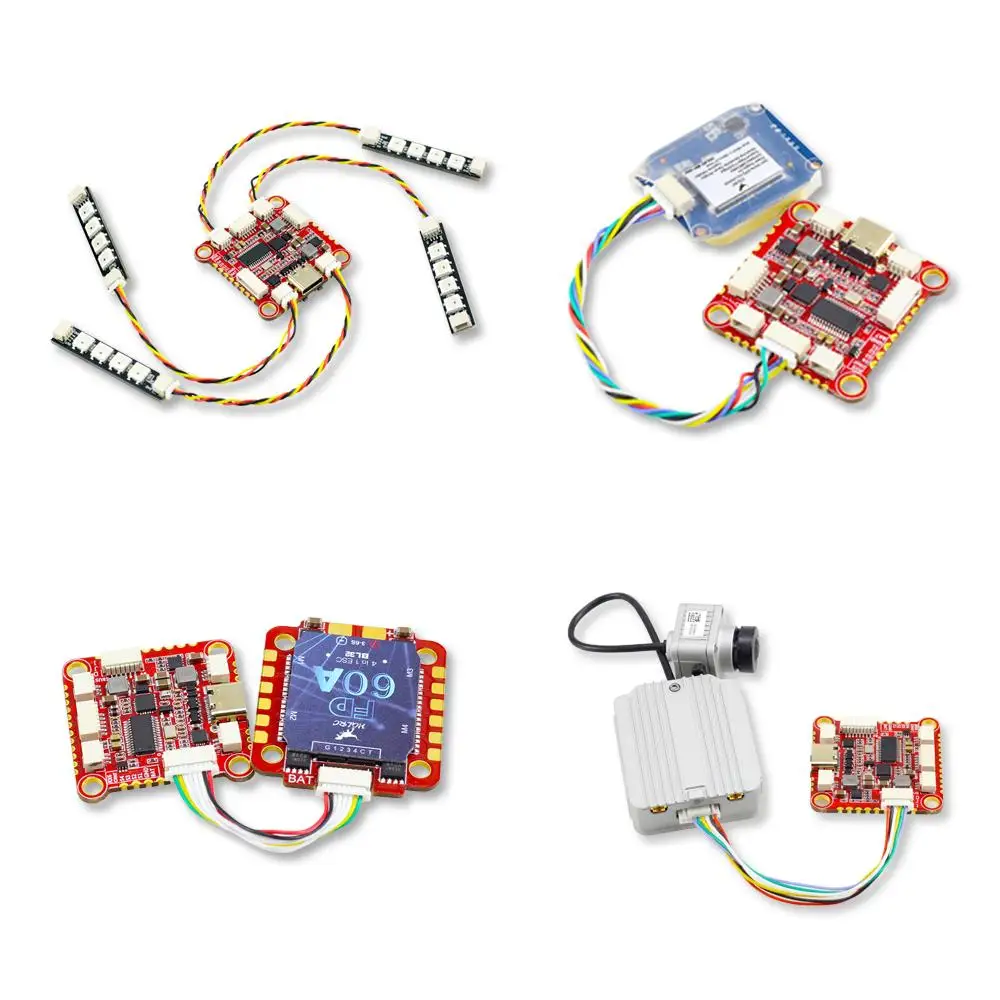

5. Can quickly connect DJI and LED and GPS through the socket.

Shipping list:
1x Zeus F722 flight controller
4x M3 shock absorbing ball (red)
1x SH1.0 8PIN double-head cable 60mm
1x M81 GPS dedicated cable 140mm
1x M80 GPS dedicated cable 140mm
1x DJI Sky Terminal dedicated cable 90mm

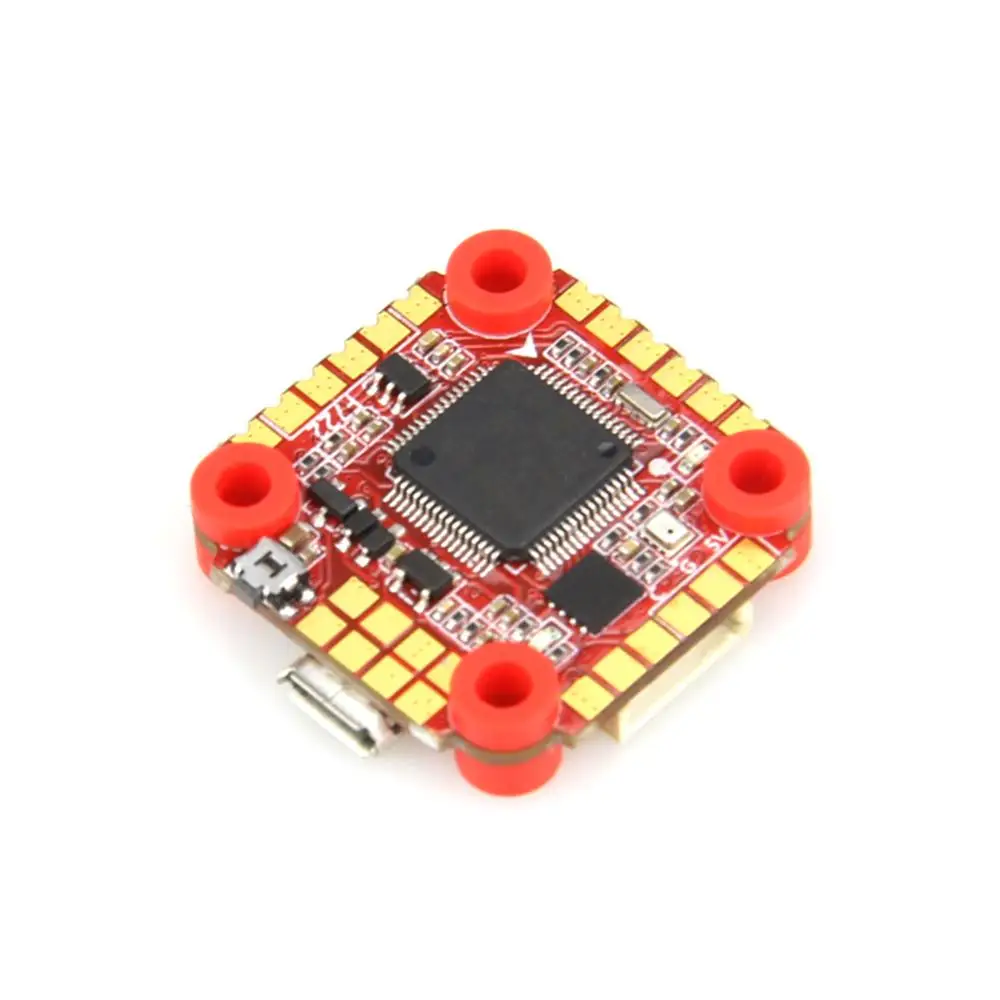

HGLRC Zeus F722 MINI 2-6S Flight Control

Usage:for 100mm-450mm Frame Kit
FC Firmware:BF HGLRCF722(HGLR)

Item Name: Forward F722 mini Flight Control
MPU:MPU6000
UARTS:5
CPU:STM32F722 RET6
Input Voltage:2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output:5V/3A
BlackBox:16M
Size:23.7x26.6mm
Installing Hole:20X20mm.M2
Weight:3.7g


Package Included:
1x Forward F722 mini Flight Control
1x SH1.0 8PIN 60mm Cable
