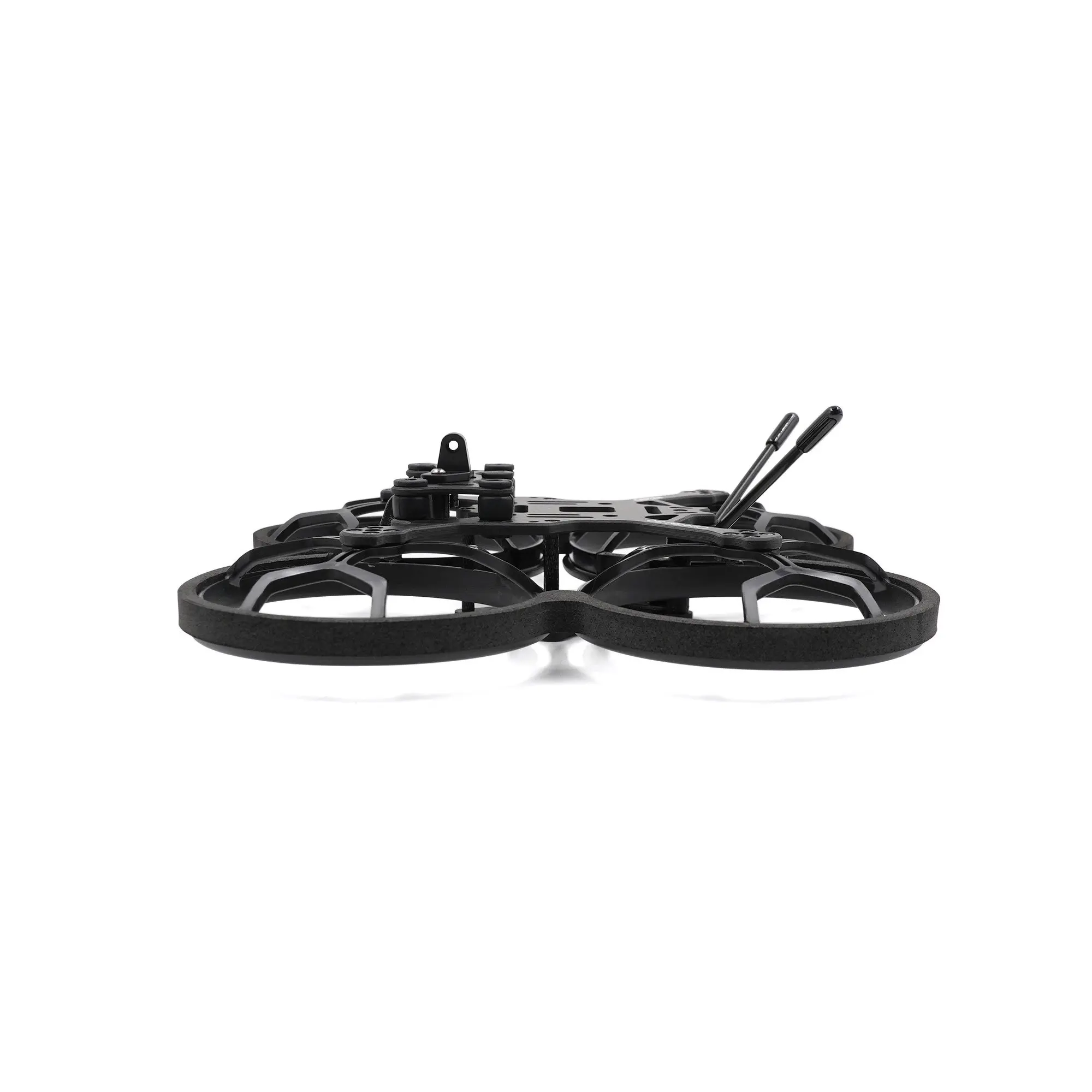

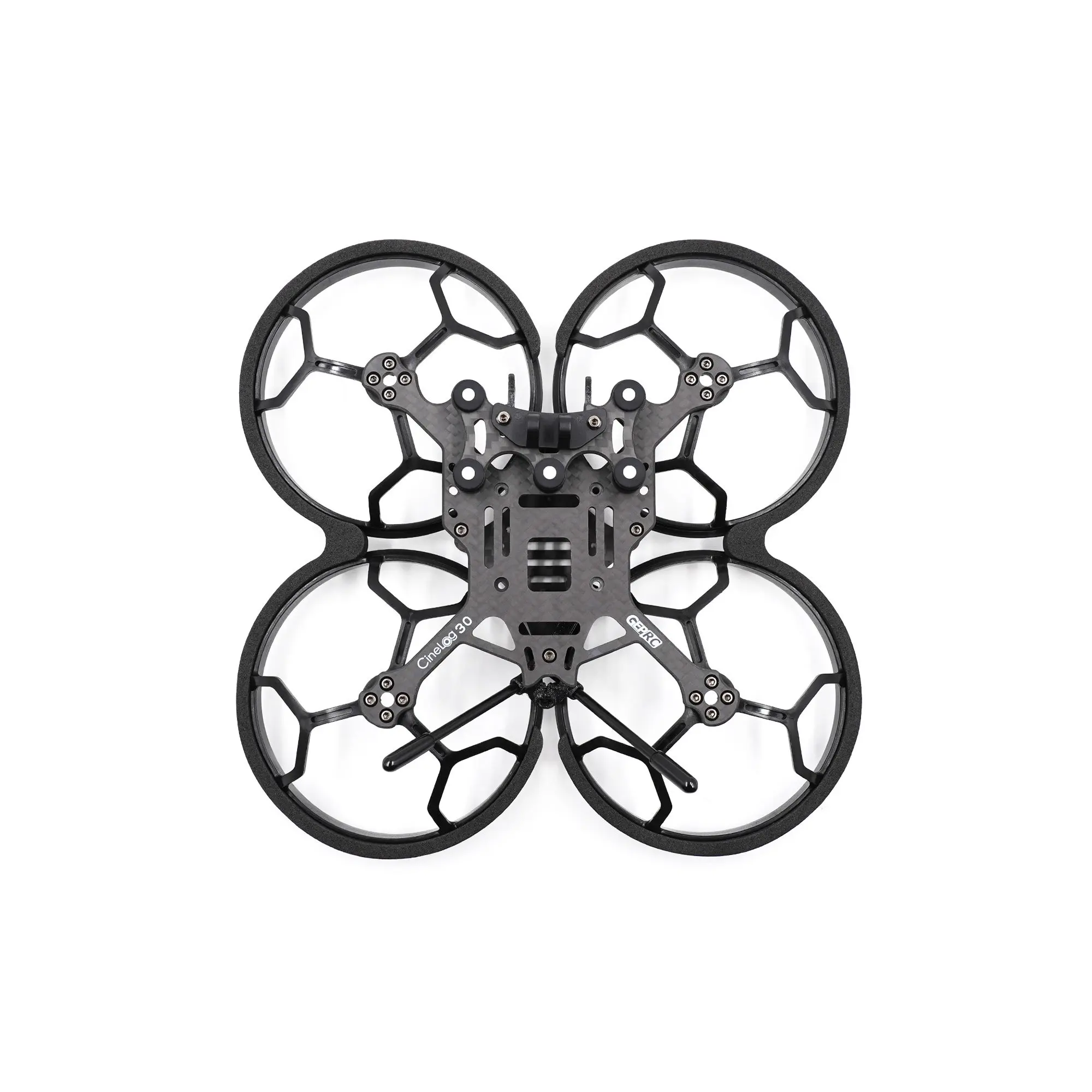

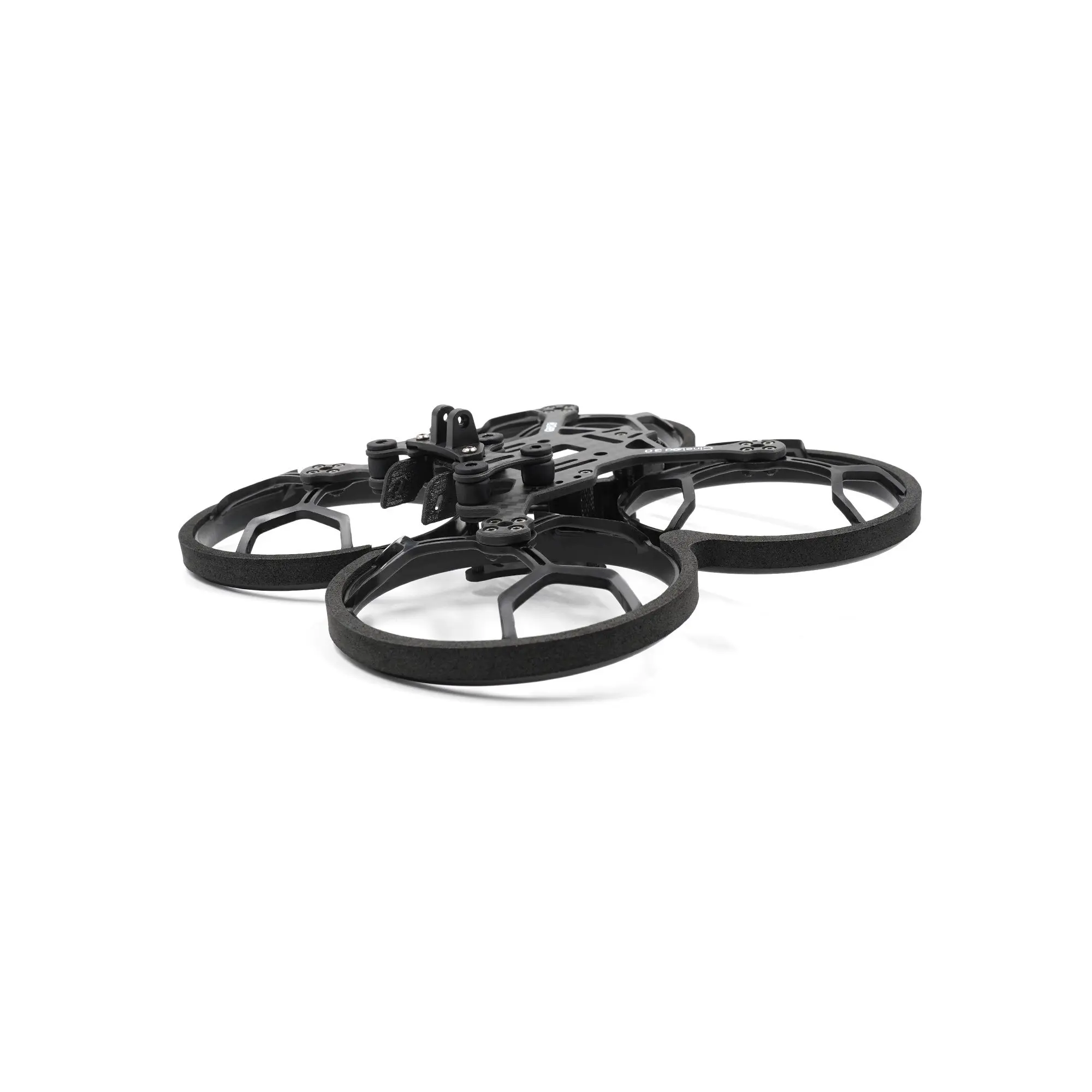

GEPRC GEP-CL30 Frame Kits Suitable For Cinelog30 Drone Carbon Fiber Frame For RC FPV Quadcopter Drone Accessories Parts

GEPRC GEP-CL30 Frame Kits Suitable For Cinelog30 Drone Carbon Fiber Frame For RC FPV Quadcopter Drone Accessories Parts

Regular price $34.49 USD
Regular price Sale price $34.49 USD
Sale Sold out
Color

Summary:

The latest 3-inch rack CL30 developed by GEPU is now officially released.

CL30 is improved and developed on the basis of CL25. It continues the 26.5×26.5mm FC hole position and 20x20mm image transmission hole position. It can be installed with the mainstream FC AIO and VISTA and most of the analog VTX on the market.The 9x9mm motor holes can be installed with 1404-1408 motors, and the power output is strong with 3-inch blades. Improved the shock absorption design of the damping platform to provide a more stable shooting effect.Ultra-light body weight .GoPro Hero 8 naked camera and Insta 360 Go2 camera can be installed with GoPro camera mount.

We pursue lighter body weight, better flying feel, and more extended functions.



Specification:

  • Brand: GEPRC

  • Model: GEP-CL30

  • Motor to Motor: 126mm

  • Top plate: 2.0mm

  • Bottom plate: 2.0mm

  • Arm Plate3.0mm

  • FC hole position: 26.5mm x 26.5mm

  • VTX hole position: 20mm x 20mm

  • Motor hole position: 9mm x 9mm

  • Camera installation space: 14~19mm

  • Propeller guard internal diameter: 79mm

  • Suitable propeller size: 3 in propeller

  • Dimension: 180mm x 180mm x 38mm(Include propeller guard)

  • Weight:62.6g(Include propeller guard,GoPro camera mount,3D printings)



Feature:

  1. Small size, light weight, good flying feel.

  2. Improved the shock absorption design of the damping platform to provide a more stable shooting effect.

  3. he 9x9mm motor holes can be installed with 1404-1408 motors, and the power output is strong with 3-inch blades.

  4. GoPro Hero 8 naked camera and Insta 360 Go2 camera can be installed with GoPro camera mount.

  5. A 3D print is designed for the receiver to facilitate the installation and binding of the receiver.



Include:

Carbon Plate:

  • 1 x Top Plate 2.0mm

  • 1 x Arm Plate 3.0mm

  • 1 x bottom Plate 2.0mm



Screws:

  • 2 x Knurled nut M2

  • 4 x Aluminum Column M2x3.5×25

  • 2 x M2x4mm cup head screws

  • 28 x M2x6.5mm round head screws

  • 10 x M2x8mm round head screws

  • 7 x M2x9mm round head screws

  • 4 x M2x10mm round head screws

  • 1 x M2x12mm cup head screw

  • 4 x M2x16mm cup head screws

  • 1 x M2 Rivet nut

  • 4 x M2 Lock nuts

  • 8 x M2 Iron nuts

  • 8 x M2 * 6.5mm damping rings

  • 9 x damping platform rings



3D Printings:

  • 1 x 19x19mm Camera Mount

  • 1 x VTX Antenna Mount

  • 1 x TBS T-shaped Antenna Mount

  • 1 x TBS NanoRX Mount

  • 1 x Camera Protector



Injection Parts:

  • 6 x 3 in Propeller Guard

  • 1 x GoPro Camera Mount



Other Parts:

  • 4 x EVA Damping Ring of Guards

  • 2 x 3M Double Tapes

  • 2 x Silicone Pads

  • 2 x Landing Pads

  • 1 x M15x200mm Battery Strap

  • 1 x M15x150mm Battery Strap

  • 1 x L-shaped (1.5mm)

  • 1 x Antenna Tubes
