ExpressLRS RX24T 2.4G ELRS Radio Nano Long Range Receiver 11X18mm for FPV Racing Freestyle Long Range Drones DIY Parts LR4 LR5

filler

Color: RX24T
Price:
$11.60

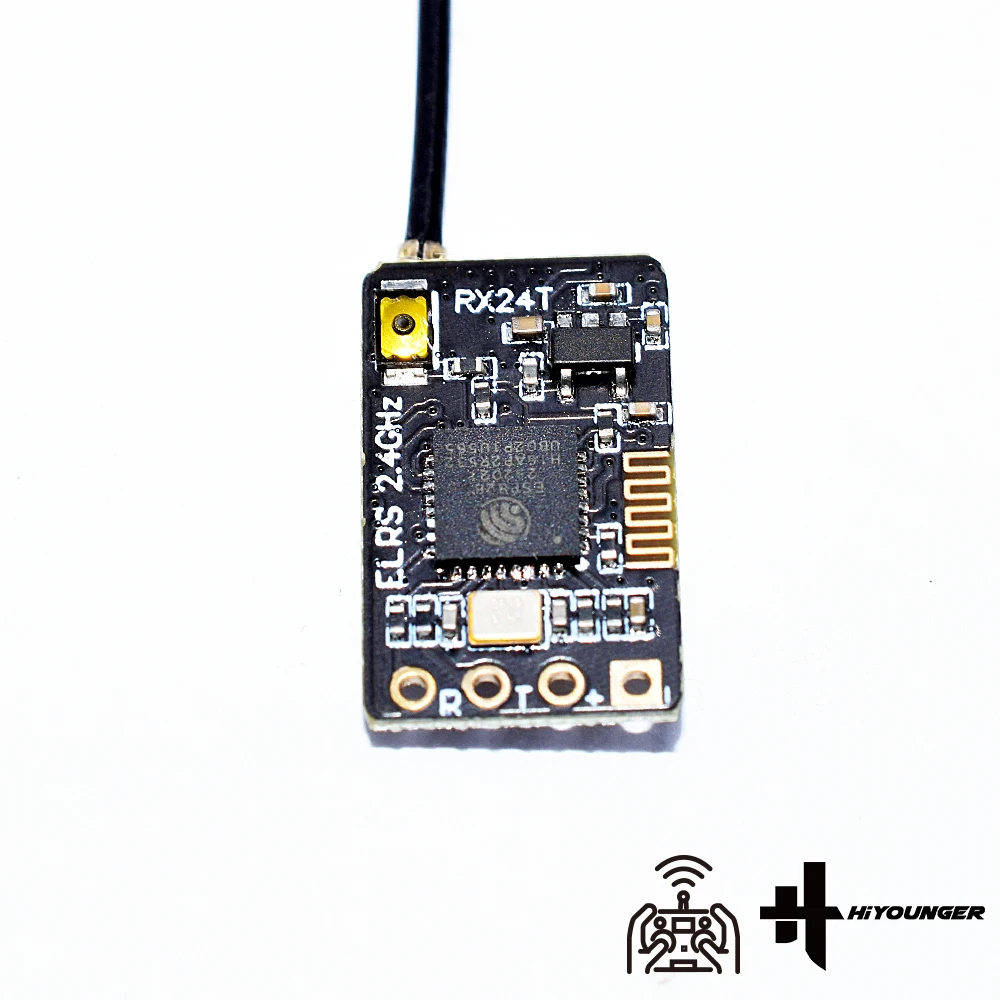

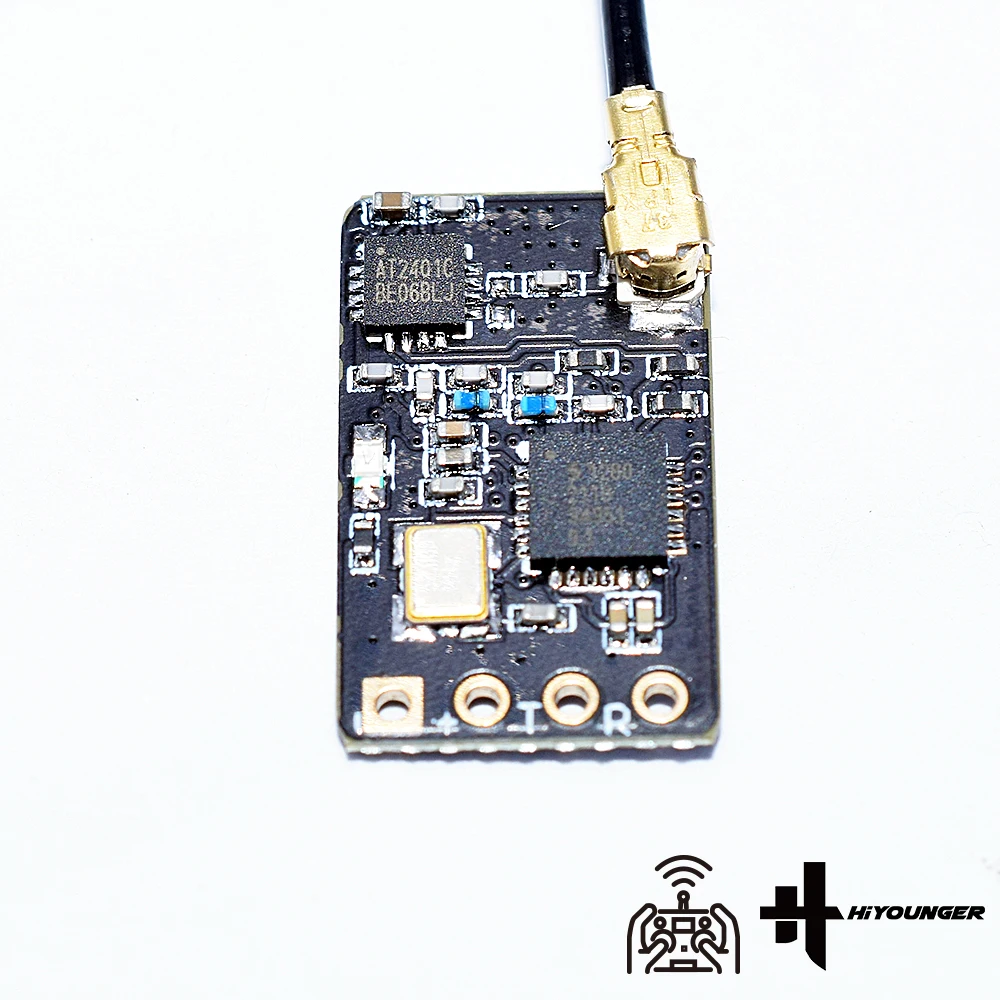

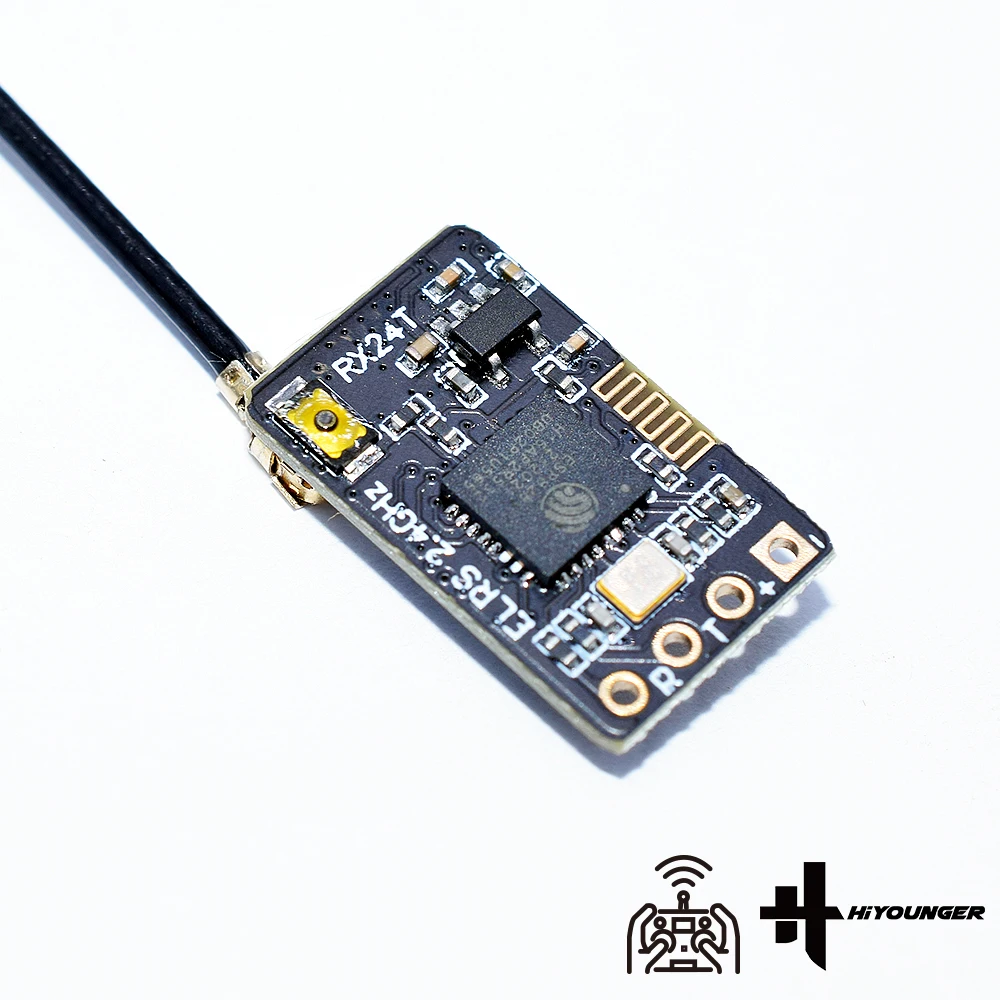

The RX24T receiver of the HiYOUNGER MiniQ series receiver is an open source architecture and program based on ExpressLRS. The receiver uses a low-latency and high-refresh rate RF chip with a high refresh rate of 25Hz-500Hz, which is very suitable for FPV competitions and remote FPV. At the same time, these receivers are ultra-light and ultra-small, so they are also very suitable for Tinywhoop. And SP24S integrates on-board ceramic antenna, the peak gain can reach 3.16dB, no external fixed antenna is needed, and the aircraft is more compact.

Indicator status:

Double flash: code matching mode
Slow flashing: No transmission signal is received
Steady on: receive the transmit signal
Fast flashing: WIFI upgrade mode

parameter:
Frequency band: 2.4G ISM type
Chip type: ESP8285 MCU
RF chip: SX1280IMLTRT RF
Frequency range: 2400 MHZ To 2500 MHZ
Maximum receiving refresh rate: 500HZ
Minimum receiving refresh rate: 25HZ
Working voltage: 5V
Weight: 0.6g
Working Agreement: CRSF (Betaflight)
Size: 11mm*18mm*3mm
Peak gain: 3.16dB
Antenna plug: IPEX MHF

Shipping packing list:

Receiver * 1
Wire * 4

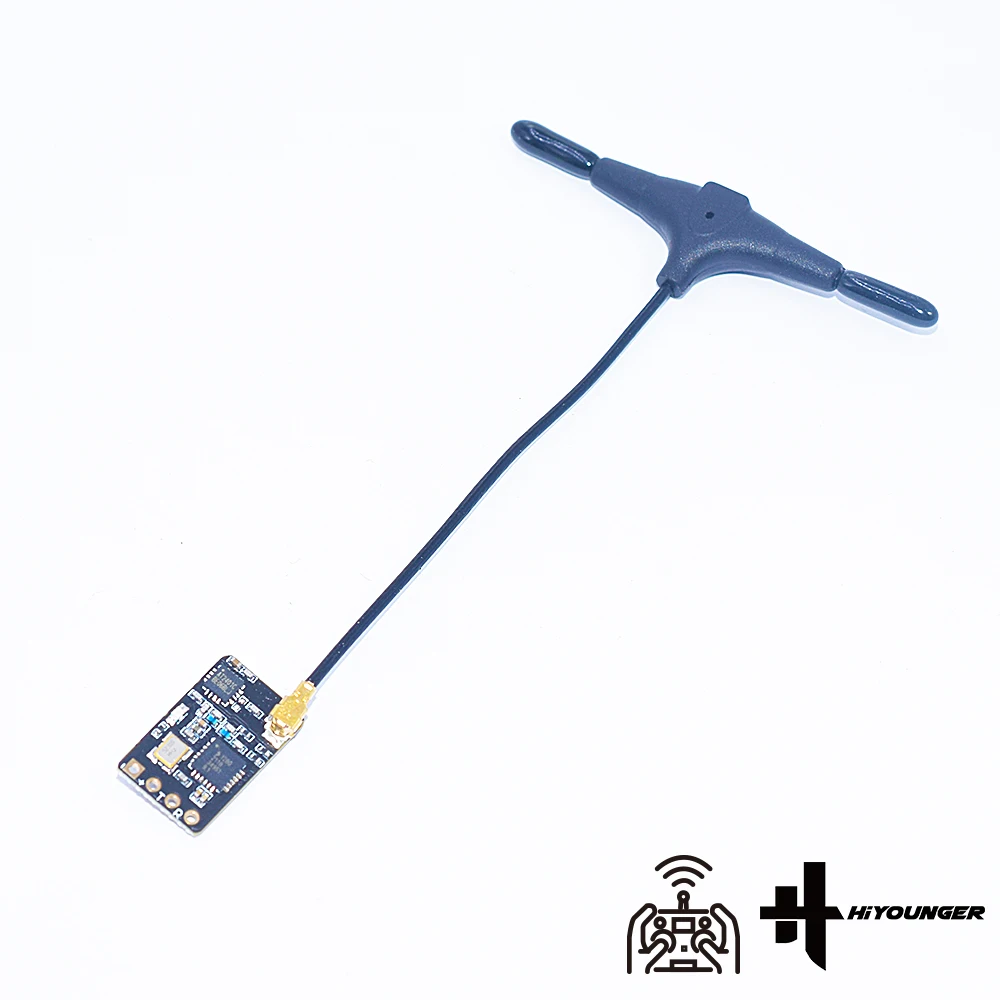

T antenna*1
Heat shrinkable tube*1
Manual *1
