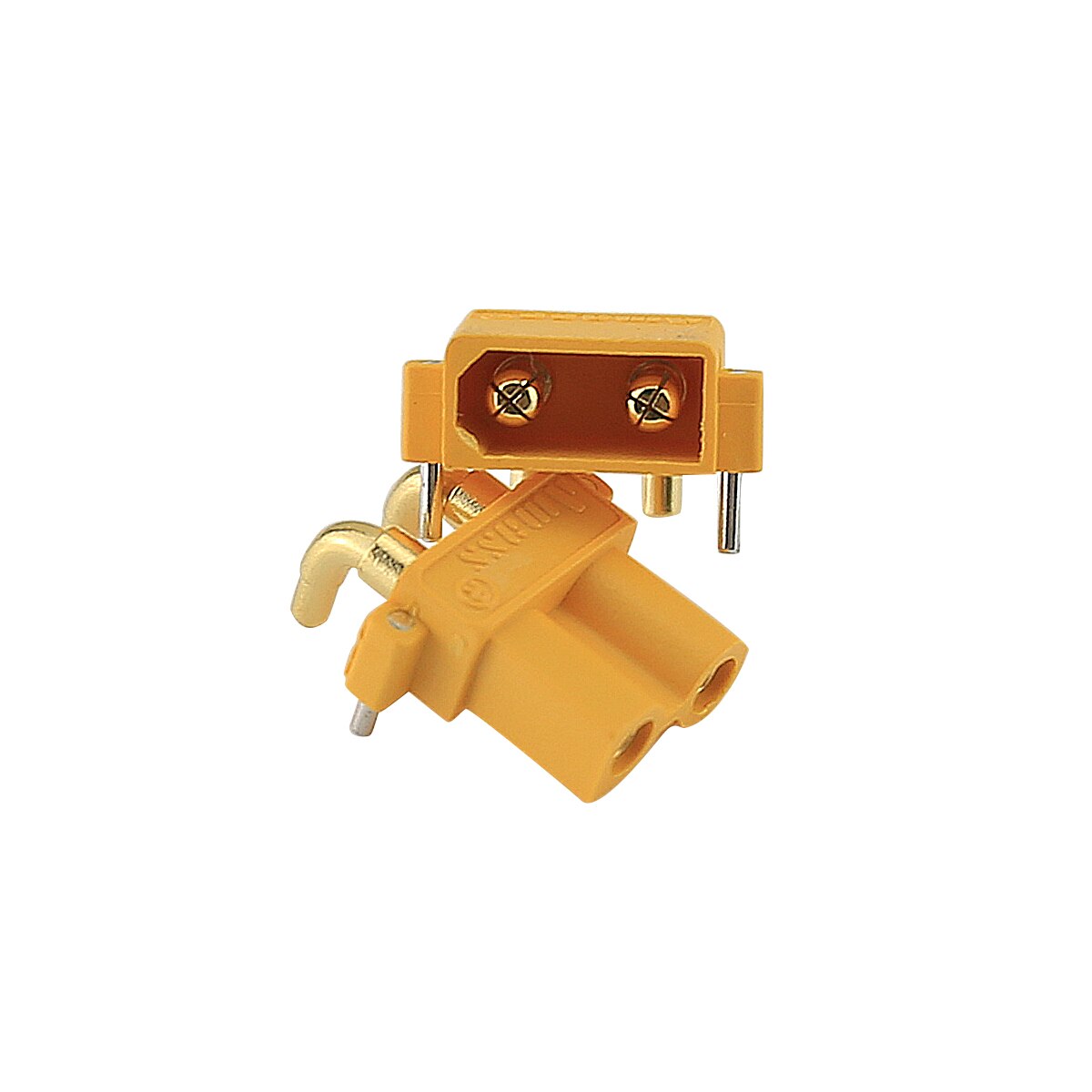

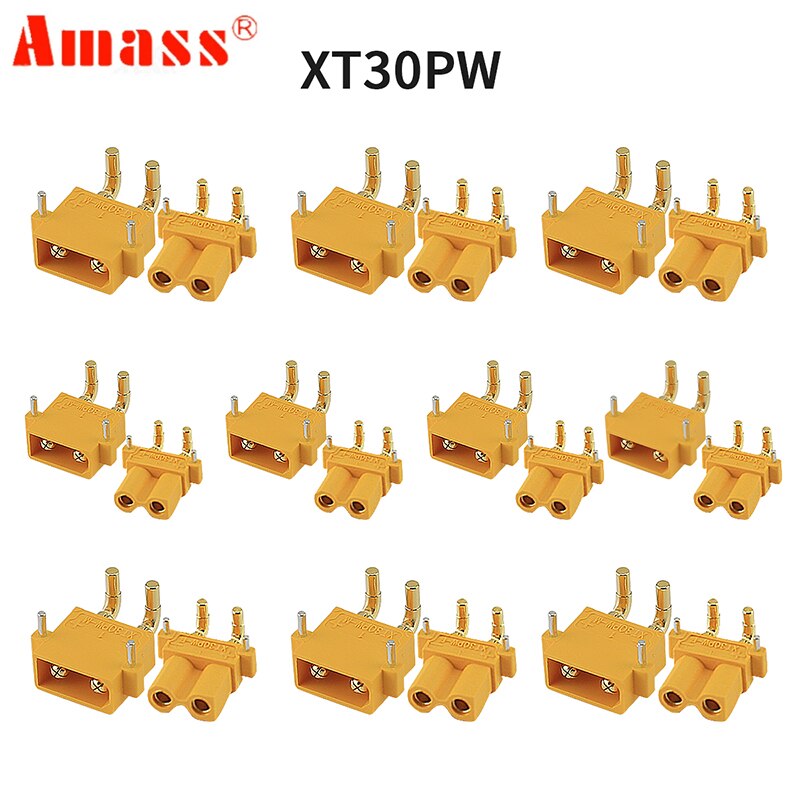

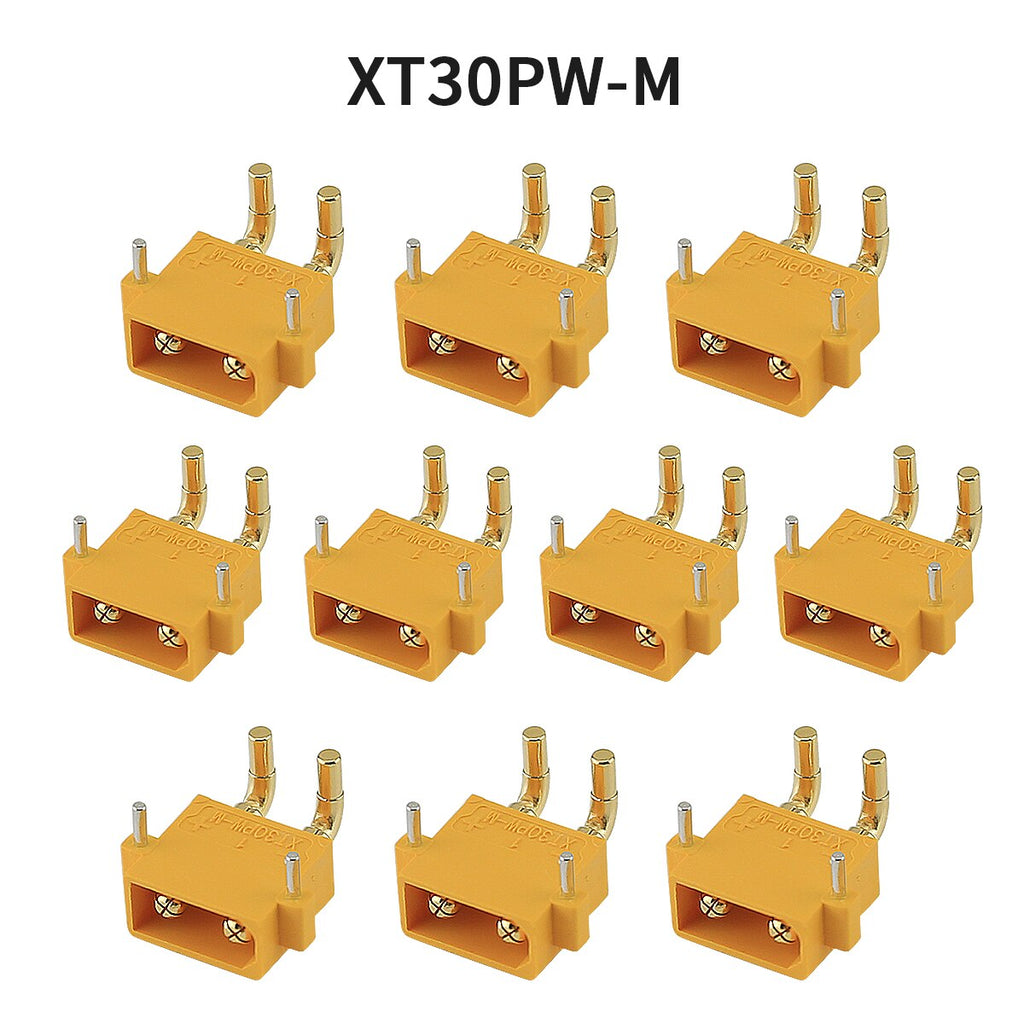

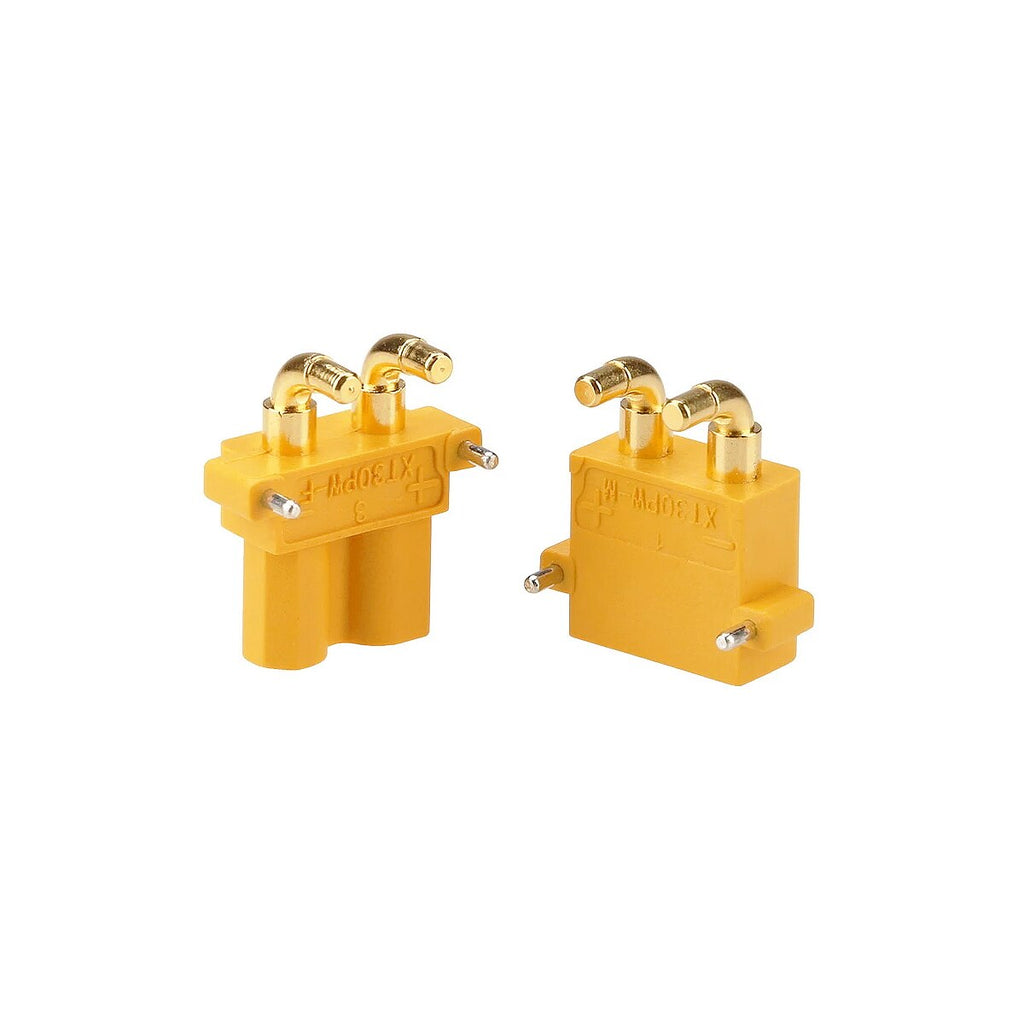

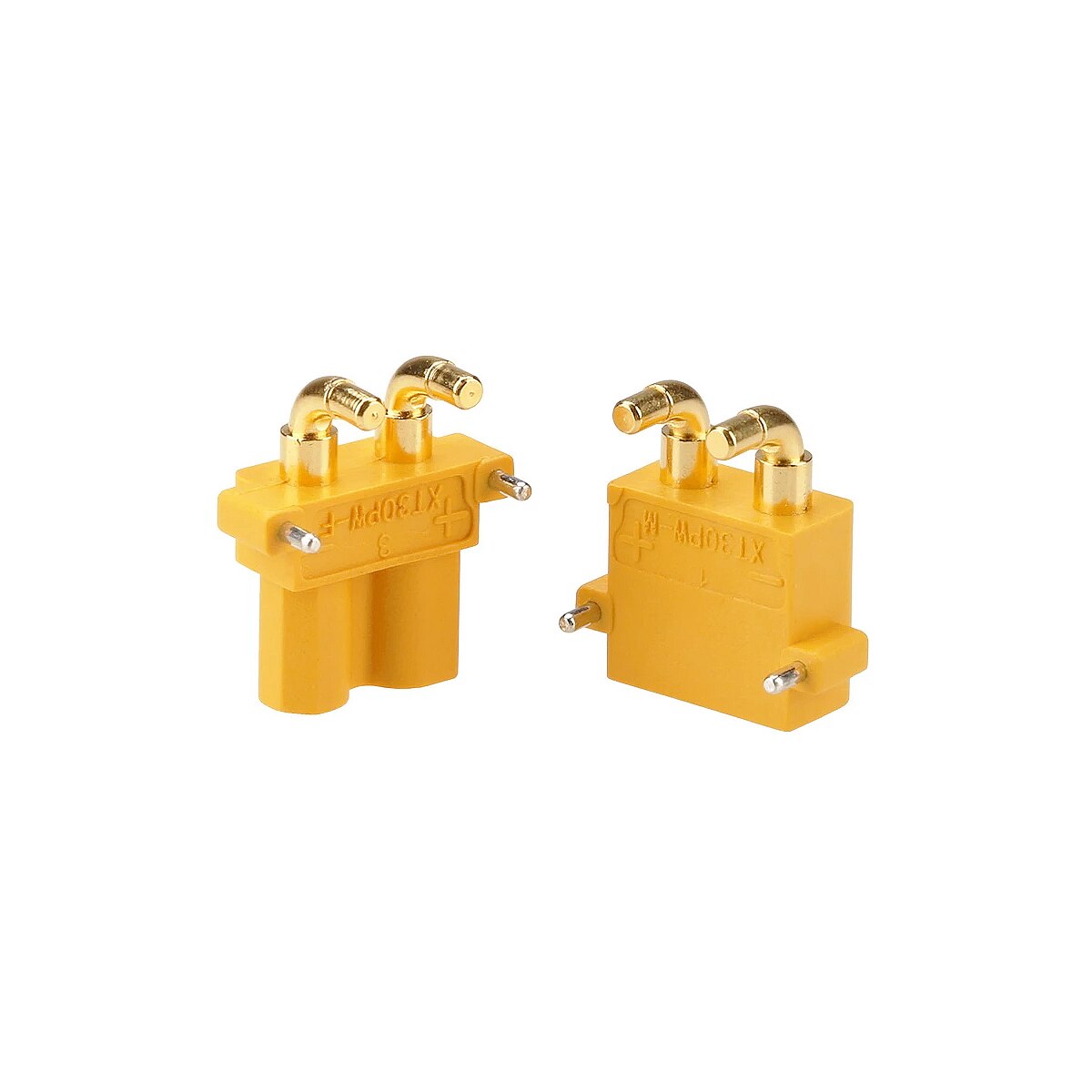

10 Pairs Amass XT30PW XT30 Connector Plug Male and female Upgraded Female & Male Heat Shrink Gold Plated For RC Parts
Description:
Brand Name: Amass
Product
Type: XT30PW
Resistant current: 30A
Molded Case Material: Nylon
Surface
treatment: frosted
Metal Material: Copper Gold Plated
Applicable products:
suitable for small current small drone FPV motor ESC
port
Parameter:
Body material and surface plating:brass and gold
plated
Insulation material:PA66
Original internal
resistance:0.8MΩ
Maximum continuous current within 30 minutes(temperature
rise<80℃):30A
Recommend cable specification:18AWG wire
Φ2.8MM
Mechanical life:3000 times
Weight:1.7g/1.8g
Insulation
material:UL94V-0
500 Times internal resistance:0.85MΩ
Maximum
instantaneous current within 1 minute(temperature rise<120℃):40A
Recommend
soldering temperature and time:400℃/3S
Trough 20A current 10-300HZ Sweep
vibration Amplitude 5MM Cycle 1MIN:Voltage stability No soaring or
disappearing
Product
Type: XT30PW
Resistant current: 30A
Molded Case Material: Nylon
Surface
treatment: frosted
Metal Material: Copper Gold Plated
Applicable products:
suitable for small current small drone FPV motor ESC
port
Parameter:
Body material and surface plating:brass and gold
plated
Insulation material:PA66
Original internal
resistance:0.8MΩ
Maximum continuous current within 30 minutes(temperature
rise<80℃):30A
Recommend cable specification:18AWG wire
Φ2.8MM
Mechanical life:3000 times
Weight:1.7g/1.8g
Insulation
material:UL94V-0
500 Times internal resistance:0.85MΩ
Maximum
instantaneous current within 1 minute(temperature rise<120℃):40A
Recommend
soldering temperature and time:400℃/3S
Trough 20A current 10-300HZ Sweep
vibration Amplitude 5MM Cycle 1MIN:Voltage stability No soaring or
disappearing
